ULD-460W

Home/ULD-460W

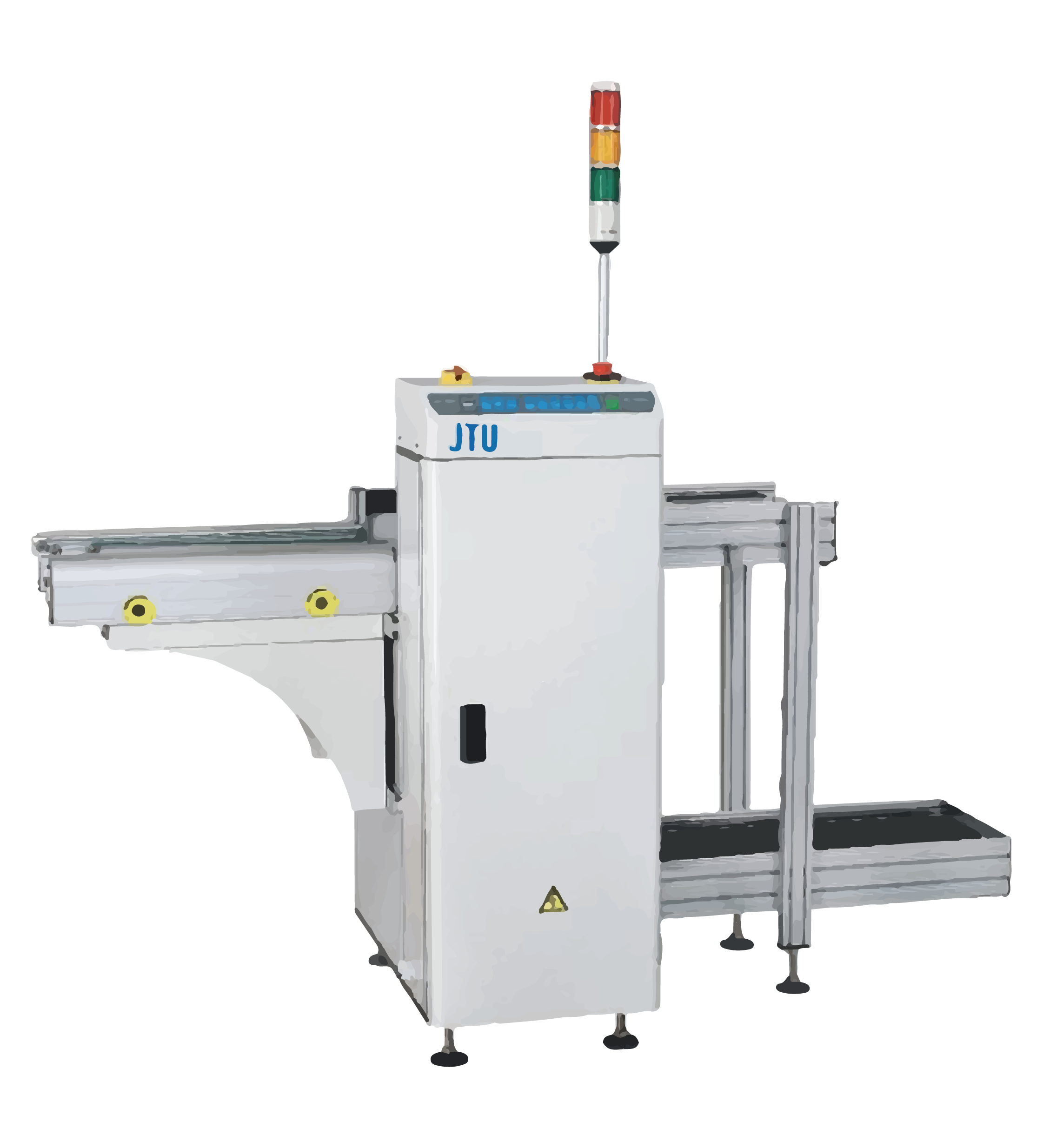

The Automatic Magazine Unloader ULD-460W is designed to store the PCB into the magazine rack at the end of the production line.

Specifications

General
  • Dimensions
 2590(L) x 1020(W) x 1200(H) mm
  • Weight
 290 kg
  • Control
 PLC + touch screen
  • Pitch selection
 10, 20, 30, 40 mm
  • No. of standby rack
 Top: 2; bottom: 3
  • Magazine size
 535(L) x 530(W) x 570(H) mm
Conveyor system
  • Pallet/PCB size
 50 x 50 - 460 x 460 mm (L x W)
  • Pallet/PCB transfer height
 900 ± 20 mm
  • Conveyor type
 Chain
  • Conveyor direction
 Left to right (Option: Right to left)

* JTU reserves the right to make any changes concerning design or specification without notice to customers due to continuous improvement.
