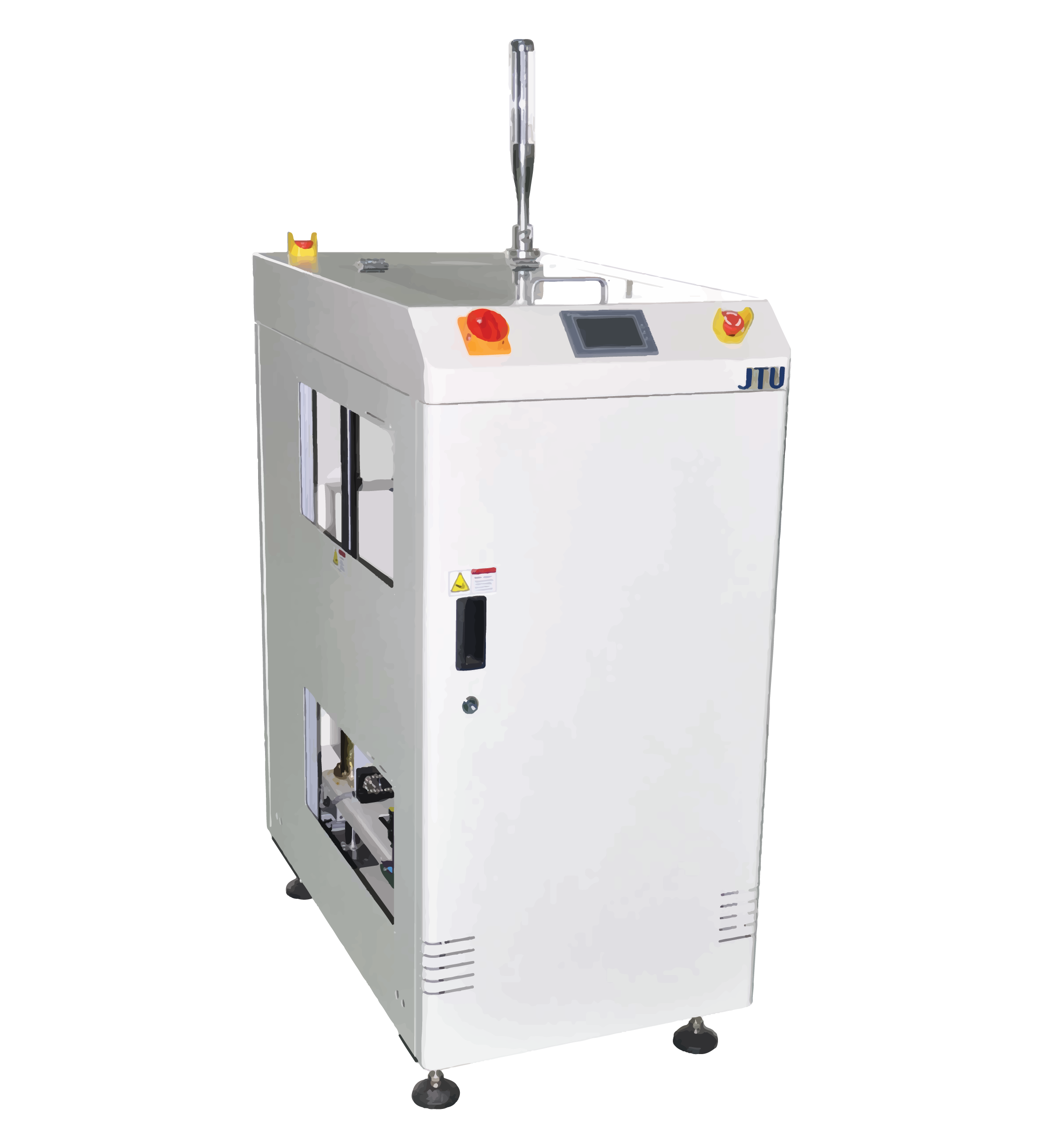

SJ-460
 |
The Automatic Up/Down Lifter SJ-460 is specially designed for OMO concept to transfer PCB/pallet between the upper and bottom (return) conveyor. |
Specifications
General
|
603(L) x 1165(W) x 1192(H) mm |
|
150 kg |
|
PLC + touch screen |
Conveyor system
|
50 x 50 - 460 x 460 mm (L x W) |
|
900 ± 20 mm |
|
Chain |
|
Above: 100 mm; bottom: 100 mm |
|
Front fixed |
|
Manual |
|
5 mm |
* JTU reserves the right to make any changes concerning design or specification without notice to customers due to continuous improvement.
Optional features
Heater with enclosure
- Link with jCURE oven to maintain temperature on the PCB while the lifter is bringing the PCB down to the return conveyor
* JTU reserves the right to make any changes concerning design or specification without notice to customers due to continuous improvement.
