RJ-460 - JTU

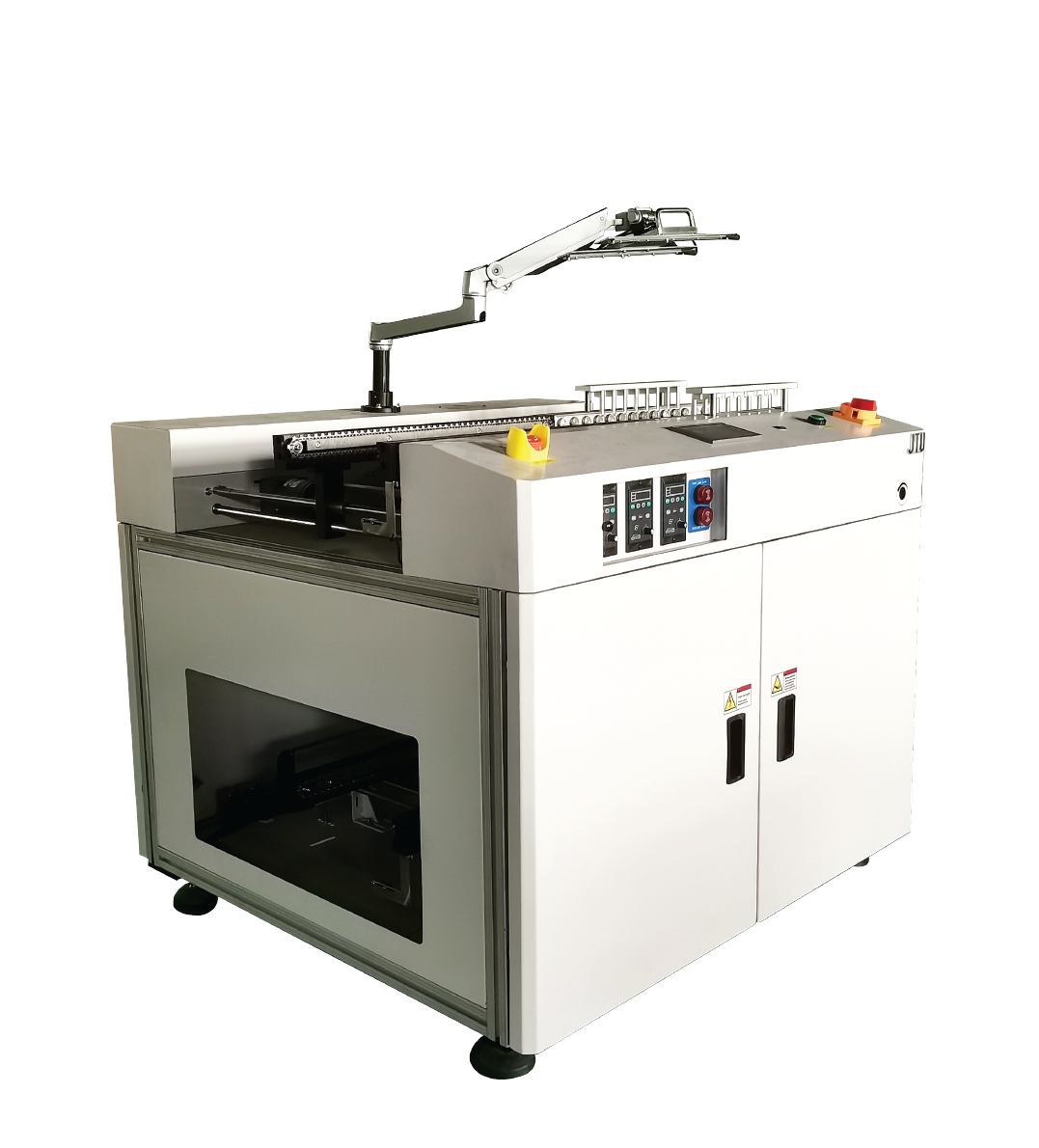

The Automatic NG PCB Reject Conveyor RJ-460 is to be used after inspection. Faulty boards can be lifted up for rework without interrupting OK PCBs flow.

Specifications

General

Dimensions	1100(L) x 905(W) x 915(H) mm
Weight	200 kg
Control	PLC + touch screen

Conveyor system

Pallet/PCB width	50 x 50 - 460 x 460 mm
Pallet/PCB transfer height	900 ± 20 mm
No. of pallet/PCB stop position	2
Conveyor type	Chain
Conveyor clearance	Above: 100 mm; bottom: 100 mm
Conveyor speed	0 - 4,500 mm/min
Conveyor direction	Left to right (Option: Right to left)
Conveyor width adjustment	Manual
PCB edge clearance	5 mm

* JTU reserves the right to make any changes concerning design or specification without notice to customers due to continuous improvement.

Optional Features

Pallet return conveyor (Underneath)

For OMO concept
Reduce manpower
Reduce the number of pallets needed

* JTU reserves the right to make any changes concerning design or specification without notice to customers due to continuous improvement.
