ZSW

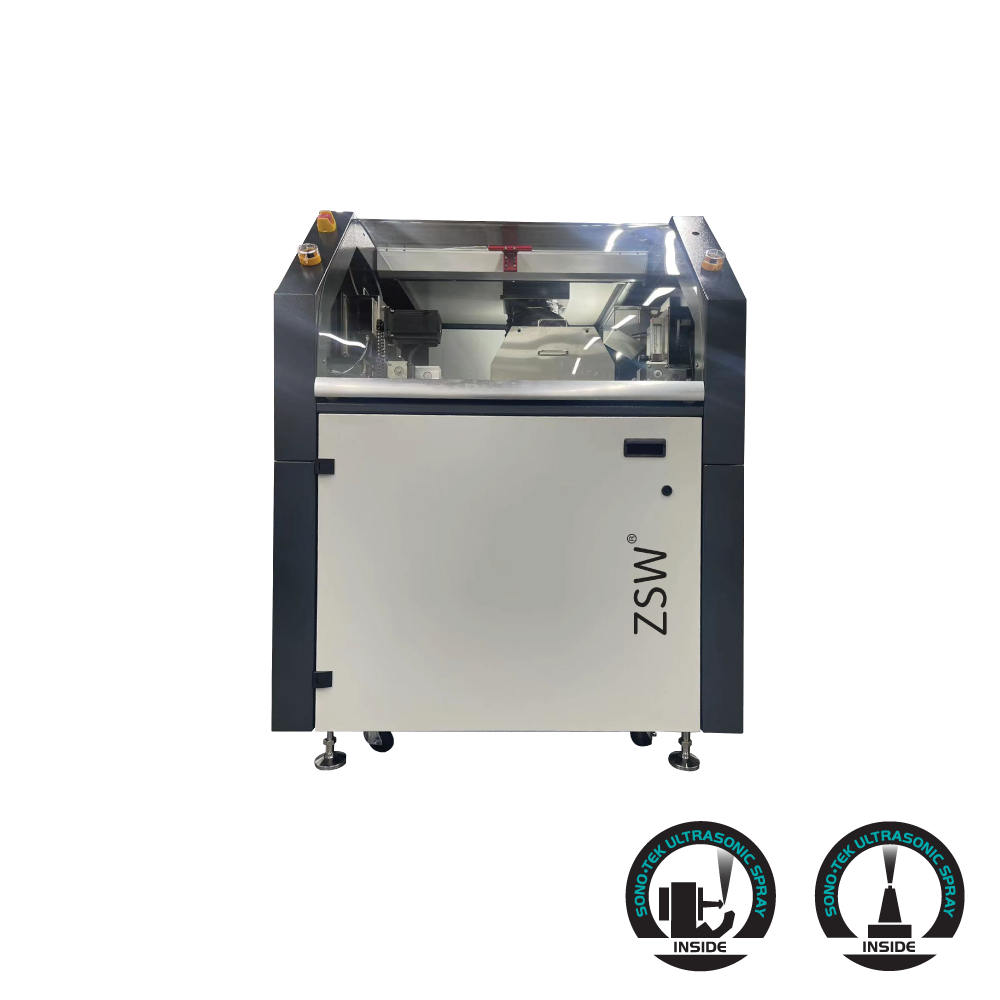

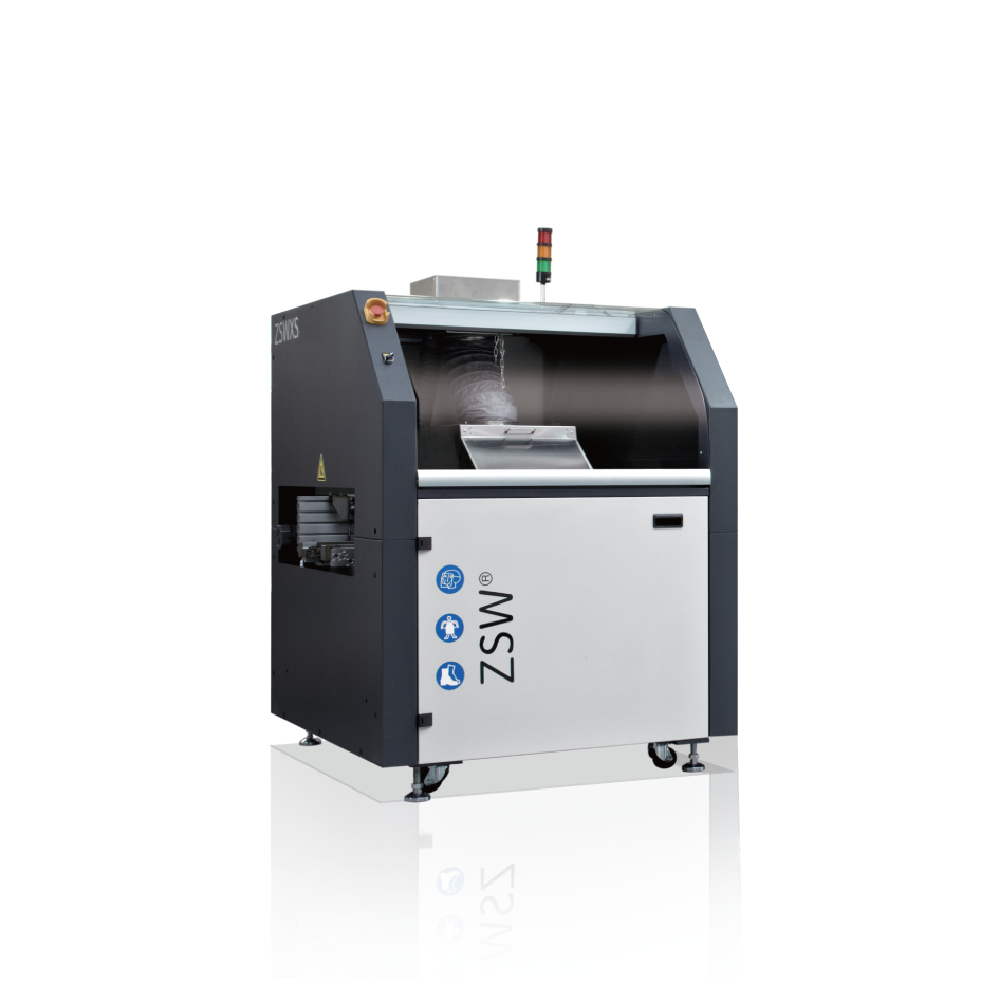

ZSWXS-350/510/610
- Full-spray fluxing machine
- Ensures cleanliness of wave soldering machine
- Improvements on safety feature
- Motorized conveyor width adjustment
- Independent control system with PC
- Up to 610 x 610 mm board capability
- Upgradable to selective spray fluxing
- Upgradable to Sono-Tek ultrasonic spray fluxer
| Dimensions (L*W*H) | 1,295 x 1,775 x 1,650 mm |
| Maximum PCB size (L*W) | 600 x 350 / 600 x 510 / 600 x 610 mm |
| Conveyor type | Chain conveyor |
| Conveyor height | 750 ± 20 mm |
| Conveyor width adjustment method | Motorized conveyor width adjustment |
| Board clearance | Top: 110 mm; Bottom: 30 mm |
| Board Edge Clearance | 5 mm |
| Spraying stroke (X*Y) | 130 x 350 / 130 x 510 / 130 x 610 mm |
| Spraying height | 70 - 90 mm |
| Flux tank capacity | 3 L |
