ZSW

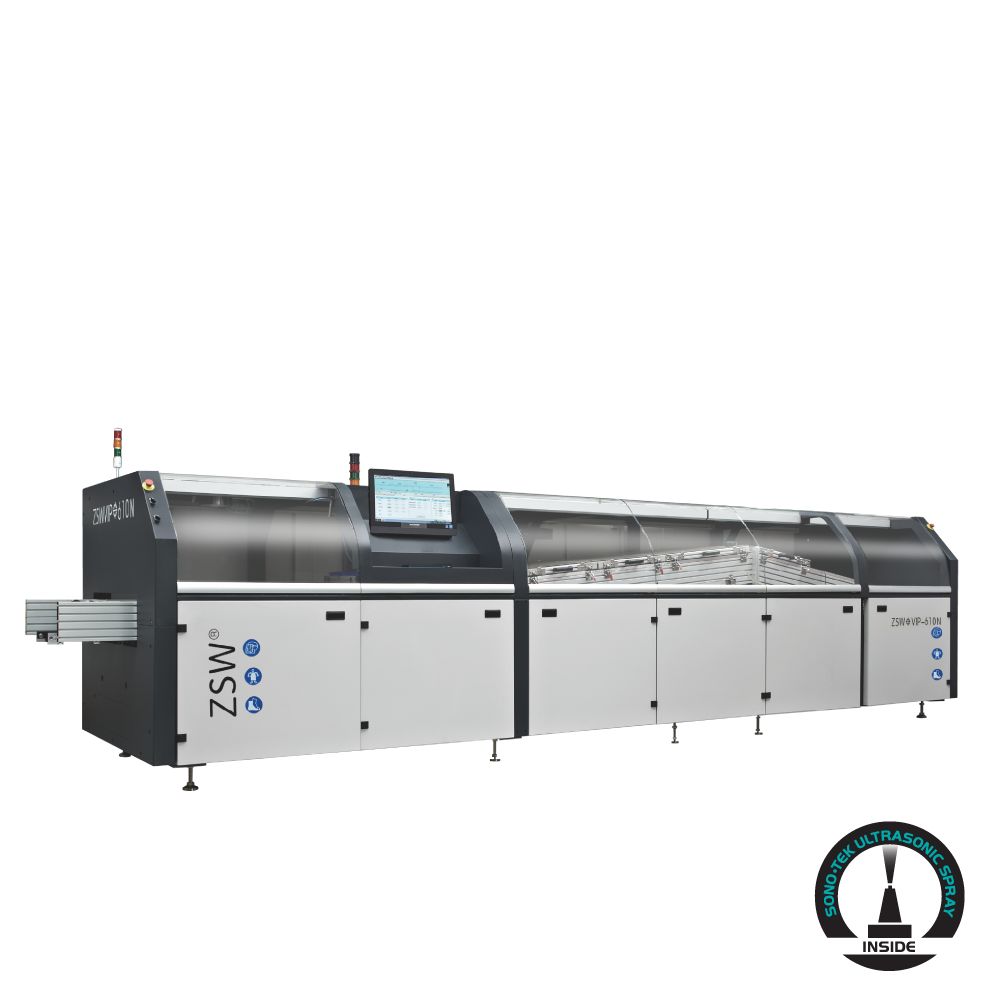

VIP-350/510/610-N
- Wave soldering machine with full tunnel nitrogen protection
- Improve soldering quality by 70-90%
- Flux saving and reduce solder dross
- Supports mixed-models production
- Upgradable to Sono-Tek selective ultrasonic spray fluxer (Z-Select-W)
- Industry 4.0 ready
| Dimension (L*W*H) | 7,026 * 1,760 * 2,025mm |
| PCB width range | 240-350mm / 240-510mm / 240-610mm |
| Conveyor height | 810 ± 20 mm |
| Components height | Top: 90mm; Bottom: 16mm |
| Conveyor inclination | Standard 5.5° |
| Nitrogen consumption | < 25m³/h 100ppm |
| Solder pot type | Mechanical pump |
| Preheating zones | 4 Zones |
| Preheating temperature | Room temperature - 280°C |
