Therlicon

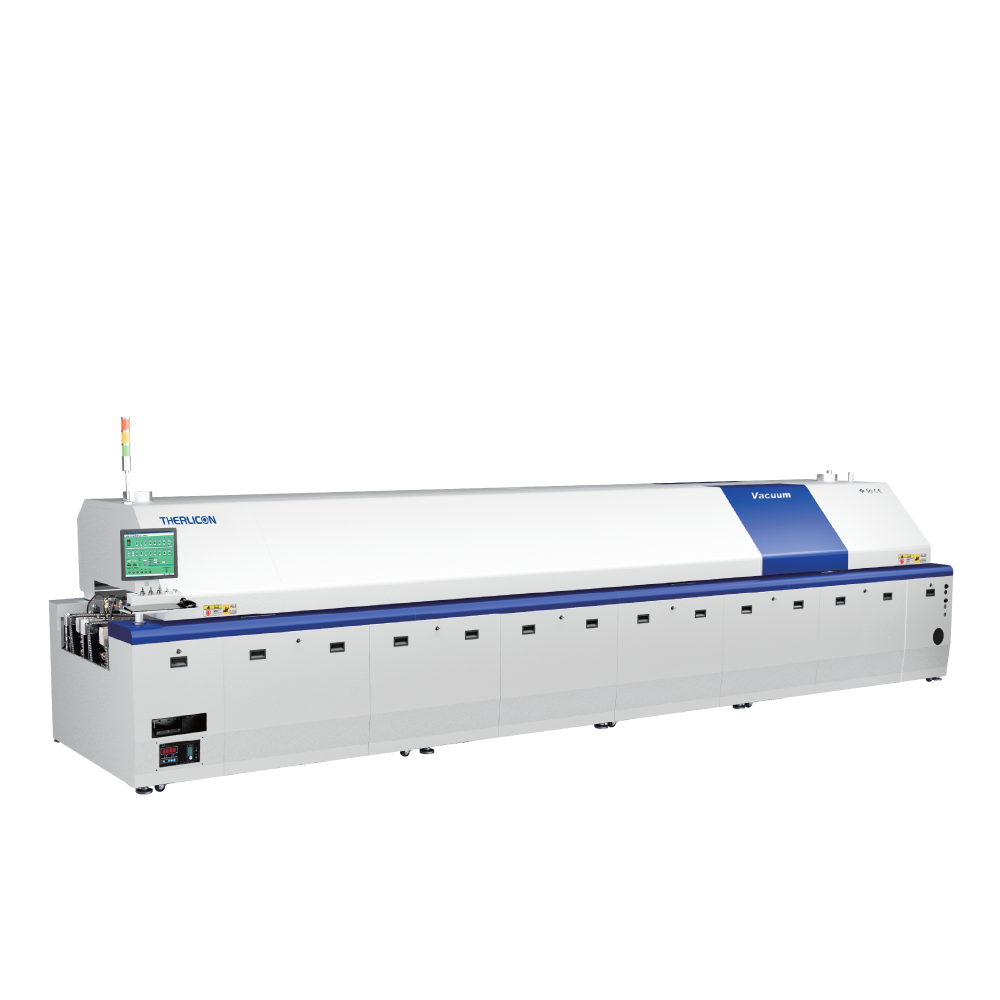

TRV
- In-line type vacuum assisted reflow oven
- High efficiency, no void, low maintenance
- Independent temperature control, allowing flexible profile
- Bubble and void issues solved, <1% void can be achieved
- Equipped with high efficiency vacuum pump for quick pressure reduction
- 3-section conveyor: Heating, vacuum & cooling zone (Individual adjustment)
- High production output
- Equipped with high efficiency flux collection system
- Single lane oven: TRV-800-N, TRV-1000-N, TRV-1200-N
- Dual lane oven: TRV-800D-N, TRV-1000D-N, TRV-1200D-N
| PCB length | 150 - 300 mm |
| PCB width | Single lane oven: 100 - 400 mm // Dual lane oven: 100 - 250 mm x 2 OR 100 - 420 mm |
| Number of cooling zones | Top 3 & bottom 3 (Cool air convection) |
| Temperature setting range | Room temp. - 300°C (Vacuum zone: Max. 280°C) |
| Temperature control method | PID closed loop control + SSR driving |
| Temperature control accuracy | ±1.0°C |
| Temperature deviation on PCB | ±1.5°C (Based on JT board test standard) |
| Exhaust flowrate | 15 m3/min x 2 |
| Power supply | 3 phase, 380V 50/60 Hz (Optional: 220V) |
