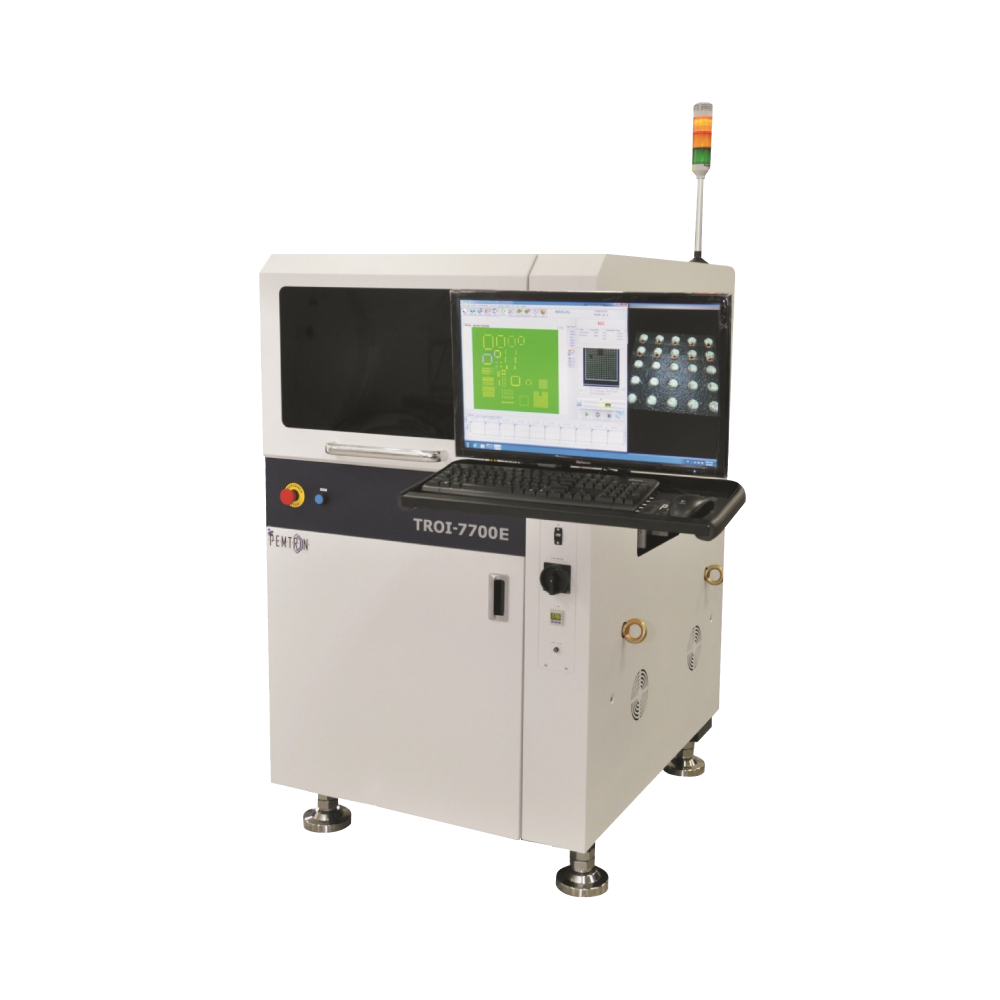

TROI-7700E
  • SMT in-line 3D Solder Paste Inspection (SPI) system
  • Dual projection
  • Combination of 2D & 3D inspection eliminates common shadow problem with SPI systems
  • High speed & performance
  • Patented color enhancing algorithm TROI™ overcomes the problems faced by conventional SPI methods that could only calculate heights above silk print levels
  • Real-time process management & quality management solutions
  • Wide range of models cater for different board size
  • Single lane models: TROI-7700E / TROI-7700EL
  • Dual lane models: TROI-7700ED / TROI-7700EDL
2D Vision Algorithm Vision inspection algorithm
3D Vision Algorithm Phase measuring profilometry (PMP) algorithm
Measurement Volume, height, XY Position, area
Detection Type Insufficient paste, excessive paste, no paste, shape deformity, bridge 2D & 3D, paste displacement
Camera 4 MP
X/Y Pixel Resolution 15 μm
Field of View (FOV) 30 x 30 mm
Motor Type Servo motor + Ball screw
