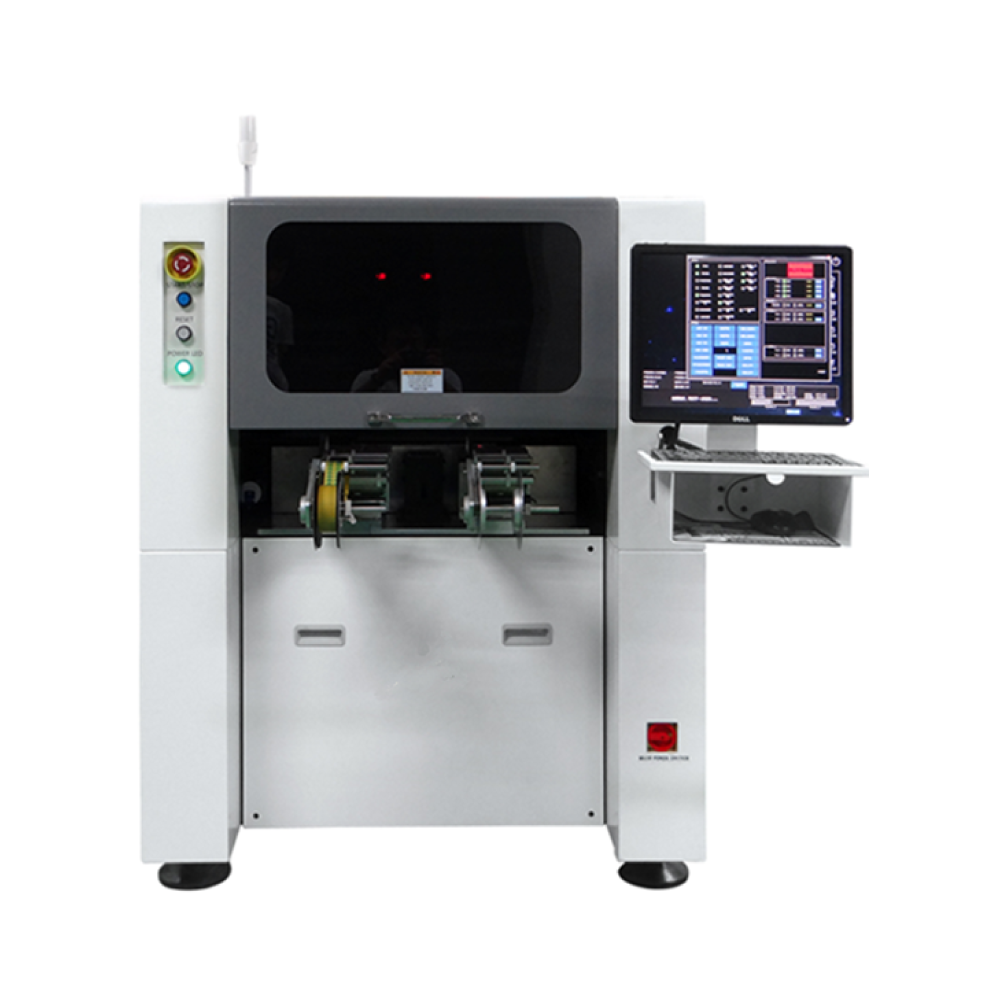

T2
- Automatic label placement machine
- High speed and accuracy of placement head
- Intelligent feeder automatically adjust the discharge length according to program
- Quick-plug feeder design for easy maintenance
- Equipped with precise visual positioning system
- Application: PCB, QR code labels, adhesive paper, thermal silica gel, shielding cover, etc.
| Mounting accuracy | ± 0.05 mm |
| Capacity | ± 40 pcs/min |
| Label width range | 2 - 40 mm |
| Label length range | 1.8 - 100 mm |
| Min. product dimension | 50 x 50 mm |
| Max. product dimension | 340 x 280 mm |
| Power supply | AC 220V 50Hz |
| Dimensions | 1130 x 1096 x 1426 mm |
| Weight | 800 kg |
