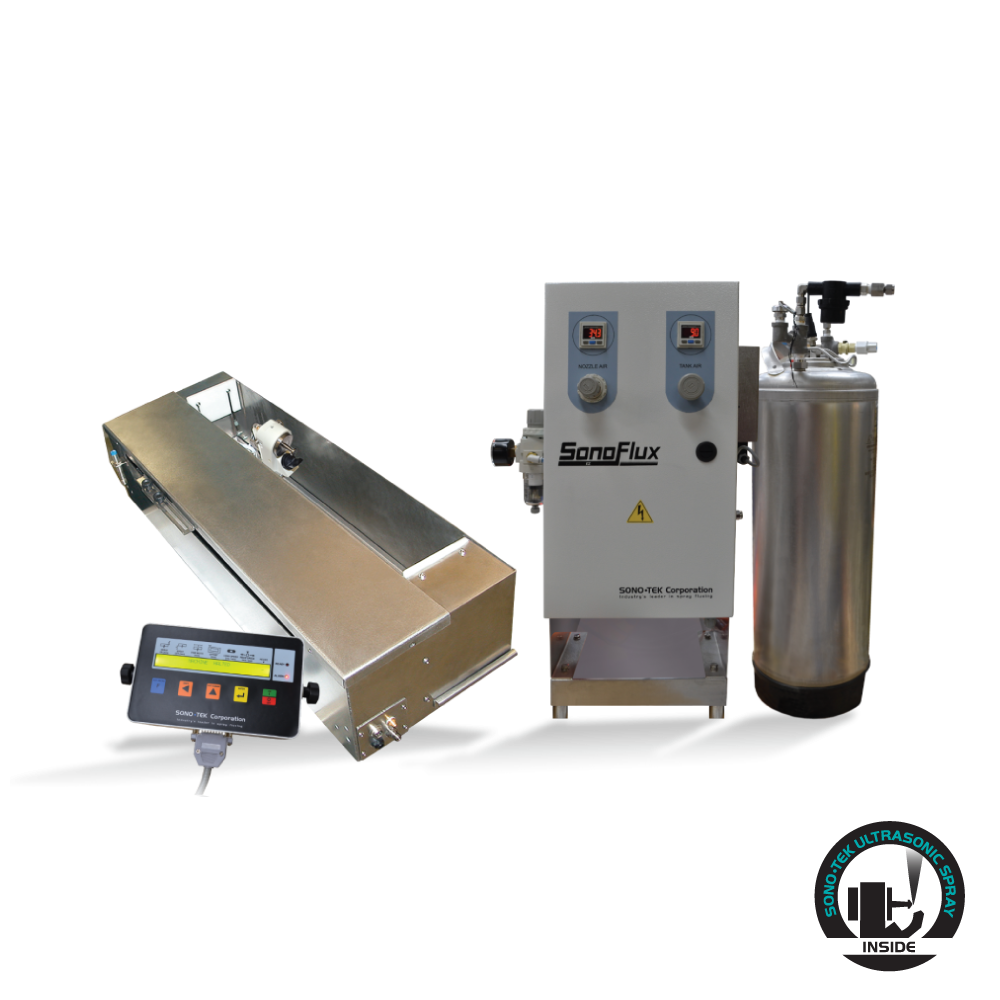

SonoFlux EZ Ultrasonic Fluxing

Ultrasonic spray fluxing system
Economical reciprocating fluxer
Easy integration and operation with all wave solder machines
Non-clogging ultrasonic atomizing nozzle
Ultrasonic produce 38-micron droplet size for easy through hole penetration and superior top side fill
Low maintenance design reciprocator
Uniform coverage
Reduction in flux consumption
Compatibility with all fluxes
Minimum over spray resulted in cleaner equipment, minimizing machine downtime for maintenance

Storage capability	100 recipes
Display	2 x 40 backlit character LCD
Flux types	RMA, RA, alcohol-based low solids, VOC-free
PCB width range	50 - 457 mm or 50 – 533 mm
Deposition uniformity	± 10%
Deposition repeatability	± 5%
Reciprocator speed	0 - 700 mm/s
