Second Intelligent

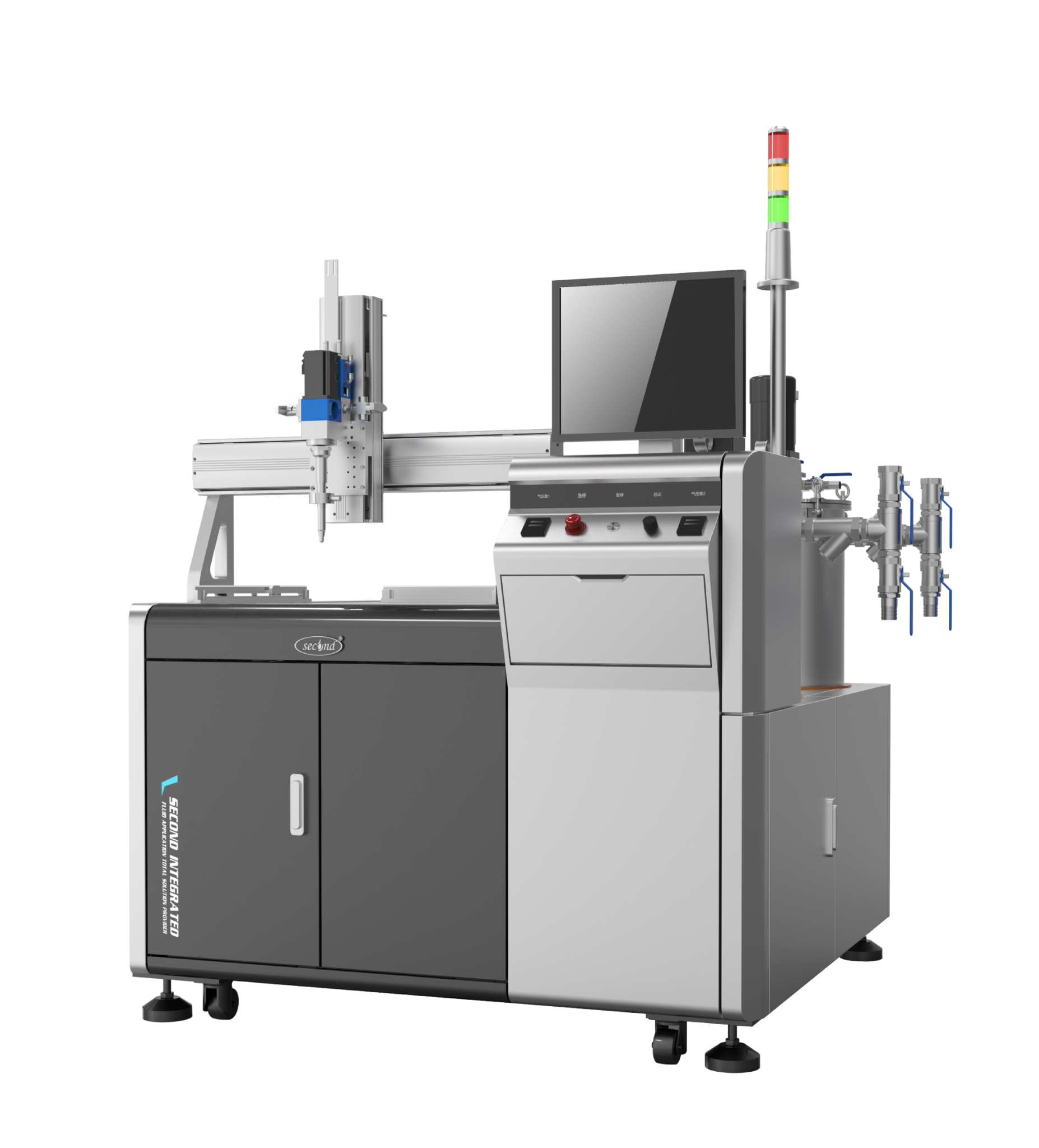

SEC-S3030C
- Stand-alone automated 2-part mixing and potting machine
- With 3-axis movement platform to dispense points, lines, circles, arcs and other trajectories
- Automatic AB materials proportioning and mixing
- Able to perform vacuum degassing, agitate stirring, optional heating, and automatic valve cleaning functions
- Applications: Printed circuit boards, electronics components, home appliances, vacuum cleaners, filtration industries, etc.
| Dimensions: L x W x H | 1,300 x 1,250 x 1,600 mm |
| Machine weight | Approx. 450 kg |
| Operation system | Motion controller + touch screen panel |
| Robot travelling system | Micro step motor + Synchronize belt |
| Applicable viscosity | <100,000 cPs |
| Proportioning accuracy | ±2% |
| Dispensing accuracy | ±2% |
| Working area: X x Y x Z | 500 x 700 x 100 mm |
| Moving speed (X/Y-axis) | 0 - 300 mm/s |
| Moving speed (Z-axis) | 0 - 100 mm/s |
| Power supply | AC220V 50Hz 2.5kW |
