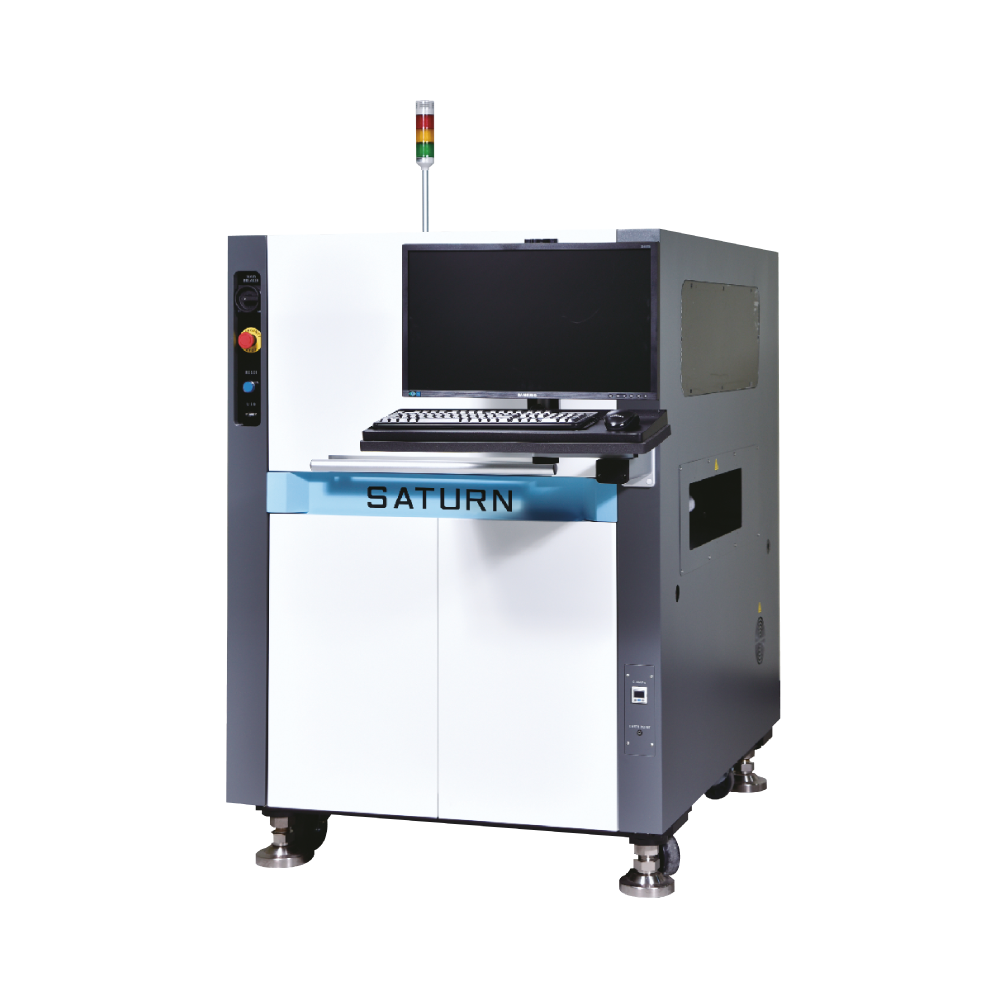

SATURN
- SMT in-line 3D Solder Paste Inspection (SPI) system
- High accuracy linear motor
- Industry-leading precision and reliability of inspection
- Dual projection
- Combination of 2D & 3D inspection eliminates common shadow problem with SPI systems
- Perform 2D & 3D algorithms simultaneously
- High speed & performance
- Patented color enhancing algorithm TROI™ overcomes the problems faced by conventional SPI methods that could only calculate heights above silk print levels
- Real-time process management & quality management solutions
- Wide range of models cater for different board size
- Single lane models: SATURN / SATURN L / SATURN XL
- Dual lane models: SATURN D / SATURN DL
| 2D Vision Algorithm | Vision inspection algorithm |
| 3D Vision Algorithm | Phase measuring profilometry (PMP) algorithm |
| Measurement | Volume, height, XY Position, area |
| Detection Type | Insufficient paste, excessive paste, no paste, shape deformity, bridge 2D & 3D, paste displacement |
| Camera | 4 MP |
| X/Y Pixel Resolution | 15 μm |
| Field of View (FOV) | 30 x 30 mm |
| Motor Type | XY linear motor |
| Operating System | Windows 10 |
