ZSW

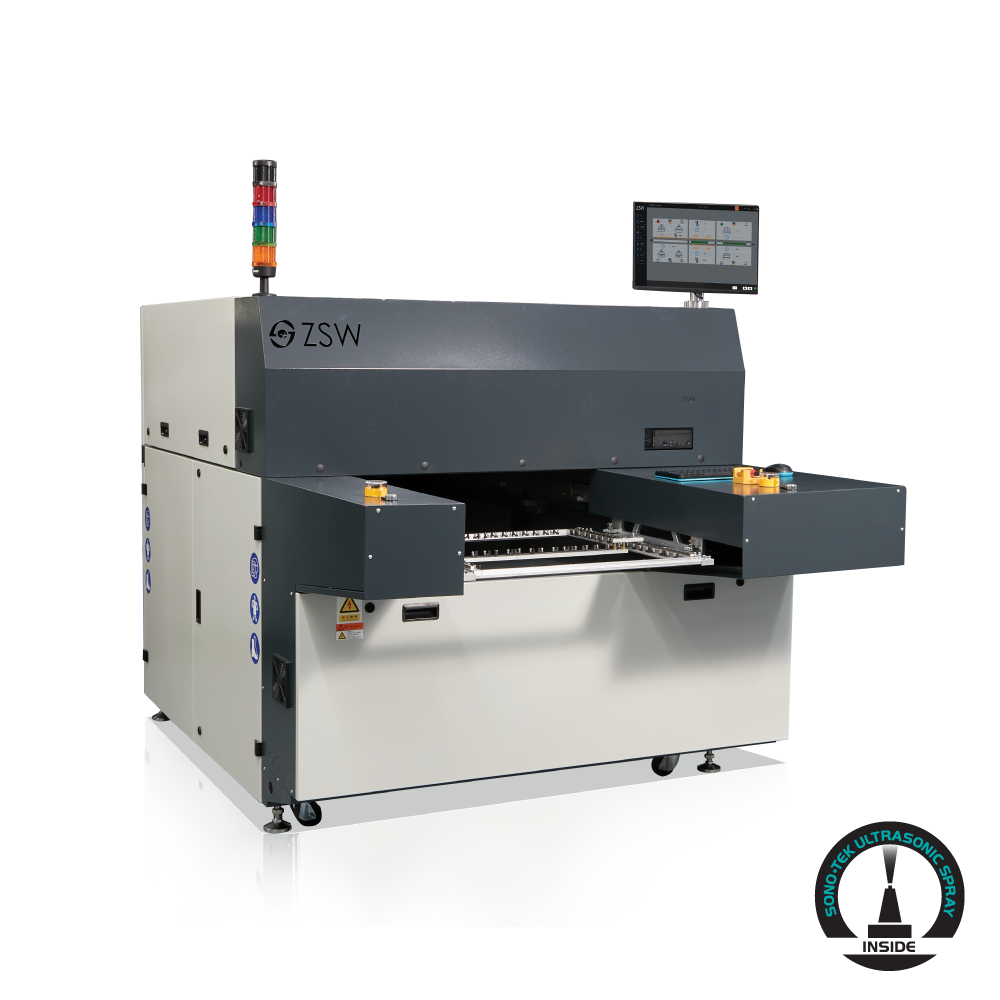

Pro-FS61
- Stand-alone selective soldering machine for lower production output
- Includes flux spraying, preheating and soldering
- All-in-one compact system with no compromises on soldering quality
- Automatic solder wire feeding
- Less than 3.7 m2 small footprint
- Precise spray fluxing and soldering
- Low solder dross formation of ~0.1 kg/day
- Up to 610 x 610 mm board capability
- With real-time visualization
- With offline programming
- Upgradable to Sono-Tek selective ultrasonic spray fluxer (Z-Select-S)
| Dimension (L*W*H) | 2,300 x 1,600 x 1,560 mm |
| Maximum Solder Temperature | 330°C |
| Maximum Solder Wave Height | 5 mm |
| Soldering Speed | 2 - 15 mm/s |
| Effective Solder Area (x, y) | 610 x 610 mm |
| Control System | 3-axis servo drive |
| Conveyor Width Adjustment Mode | Automatic (Software controlled) |
| Maximum PCB Size | 610 x 610 mm |
| Conveyor Height | 850 ± 20 mm |
| Effective Flux Spray Area (x, y) | 610 x 610 mm |
| Top Heater Power | 4 kW |
| Bottom Heater Power | 16.2 kW |
