ZSW
Pro-F, M, S46/61

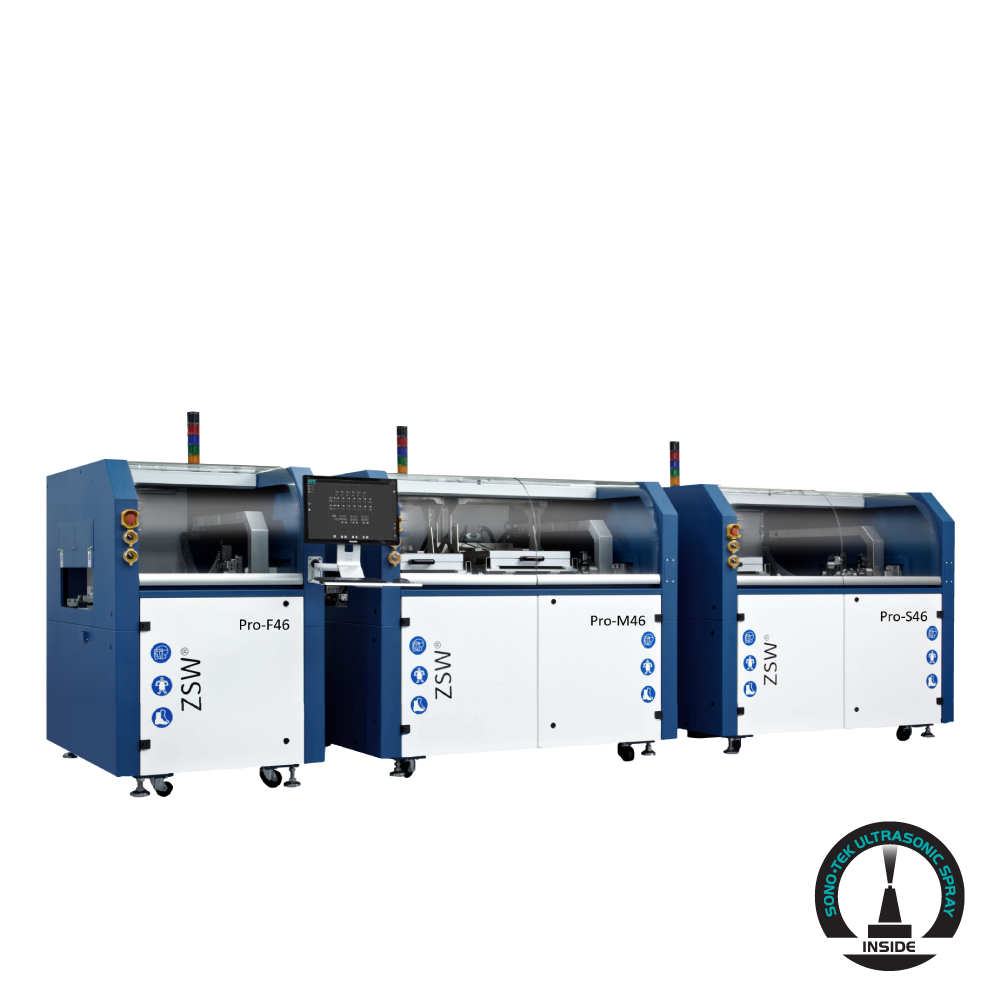

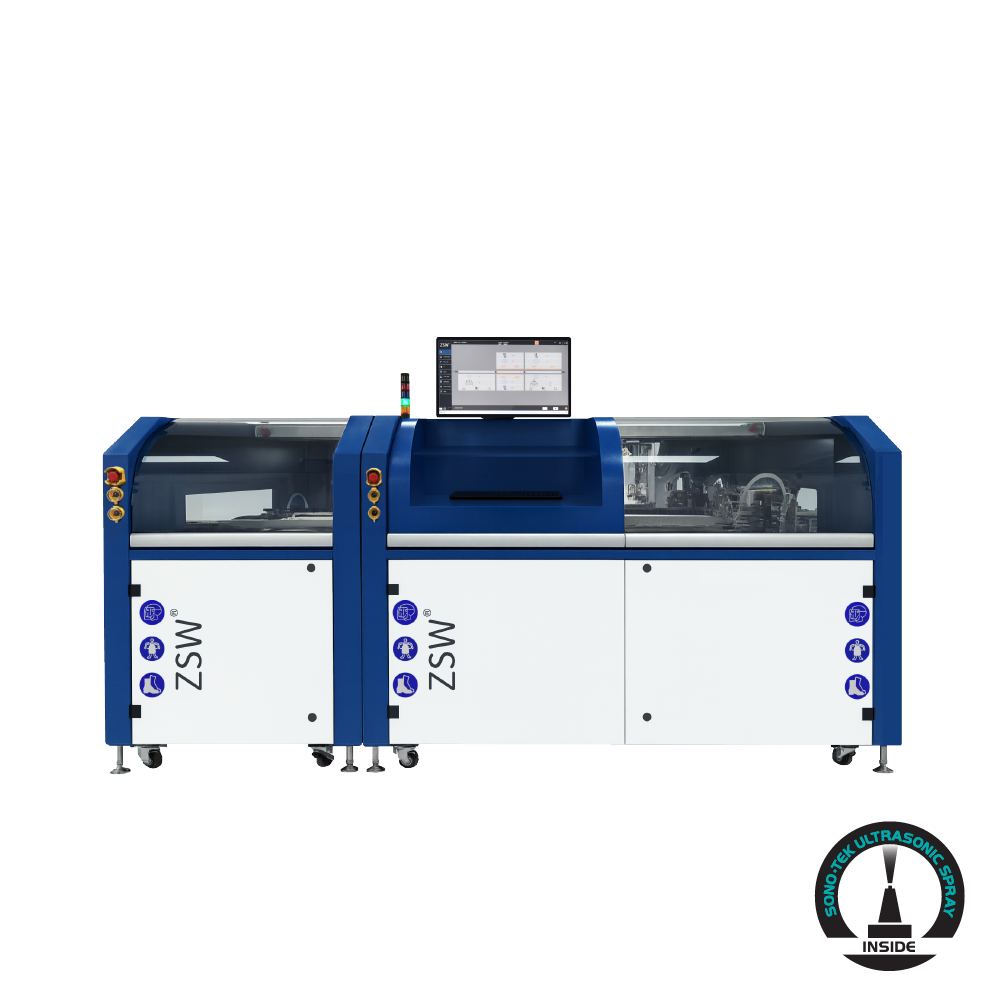

- Pro series in-line selective soldering solution for higher production output
- Professional selective soldering technology & protean soldering solutions
- Modular concept to allow flexibility and expandability
- Mix-and-match concept to meet all kind of requirements
- Pro-F46/61: Selective flux module
- Pro-M46: Multi-point soldering module (with built in one-zone preheater)
- Pro-S46/61: Single-point soldering module (with built in one-zone preheater)
- Pro-H46/61: One-zone preheating module
- Pro-2H46/61: Two-zone preheating module
- Parallel process results in high productivity
- Independent control of each module conveyor
- With real-time visualization
- With offline programming
- Upgradable to Sono-Tek selective ultrasonic spray fluxer (Z-Select-S)
Conveyor Width Adjustment | 50 - 460 / 50 - 610 mm |
Conveyor Width Adjustment Mode | Automatic (Software controlled) |
Effective Single-point Solder Area (x, y) | 510 x 460 / 610 x 610 mm |
Effective Multi-point Solder Area (x, y) | 400 x 400 mm |
Conveyor Height | 900 ± 20 mm |
Flux Spray Speed | 400 mm/s |
Flux Spray Width | 2 - 8 mm (With nozzle size of 130 μm) |
Effective Flux Spray Area (x, y) | 510 x 460 / 610 x 610 mm |
Top Heater Power | 4 kW |
Bottom Heater Power (Pro-M46/-S46/-H46) | 10.8 kW |
Bottom Heater Power (Pro-S61/-H61) | 14.4 kW |
Maximum Solder Wave Height | 5 mm |
