GKG

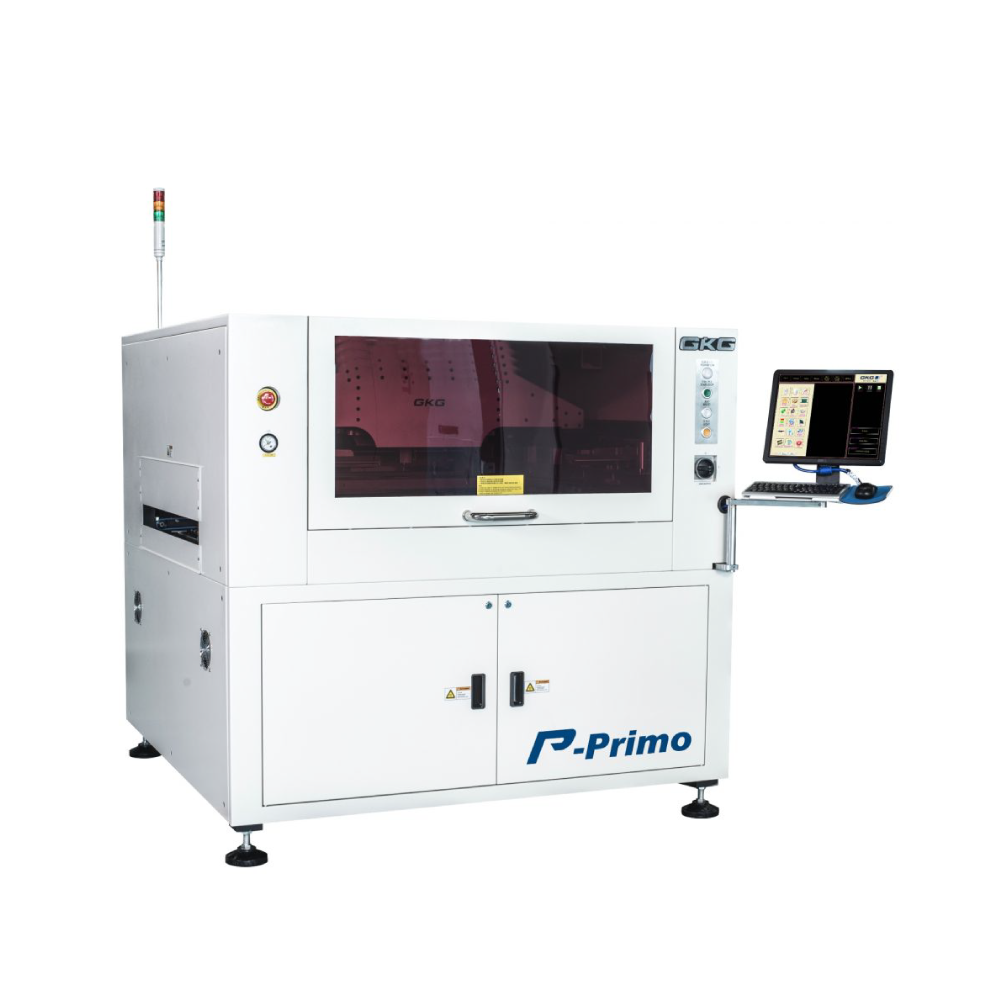

P-Primo
- Large platform screen printer
- Serves XL size PCB of up to 850mm x 610mm
- 2D paste inspection function to detect insufficient paste, bridging and other defects
- Certified printing capabilities to ensure high quality printing results
| Maximum Board Size | 850 mm x 610 mm |
| Minimum Board Size | 100 mm x 65 mm |
| Board Thickness | 0.4~8 mm |
| Maximum Board Weight | 5 kg |
| Board Edge Clearance | 3.5 mm |
| Board Height | 23 mm |
| Transport Height | 900 ± 40 mm |
| Transport Speed | Subsection Control. 1500mm/s (max) |
| Board Clamp | Retractable top clamp, motor controlled side clamp |
| Support System | Magnetic support pins, bars, blocks, vacuum suction |
