GKG

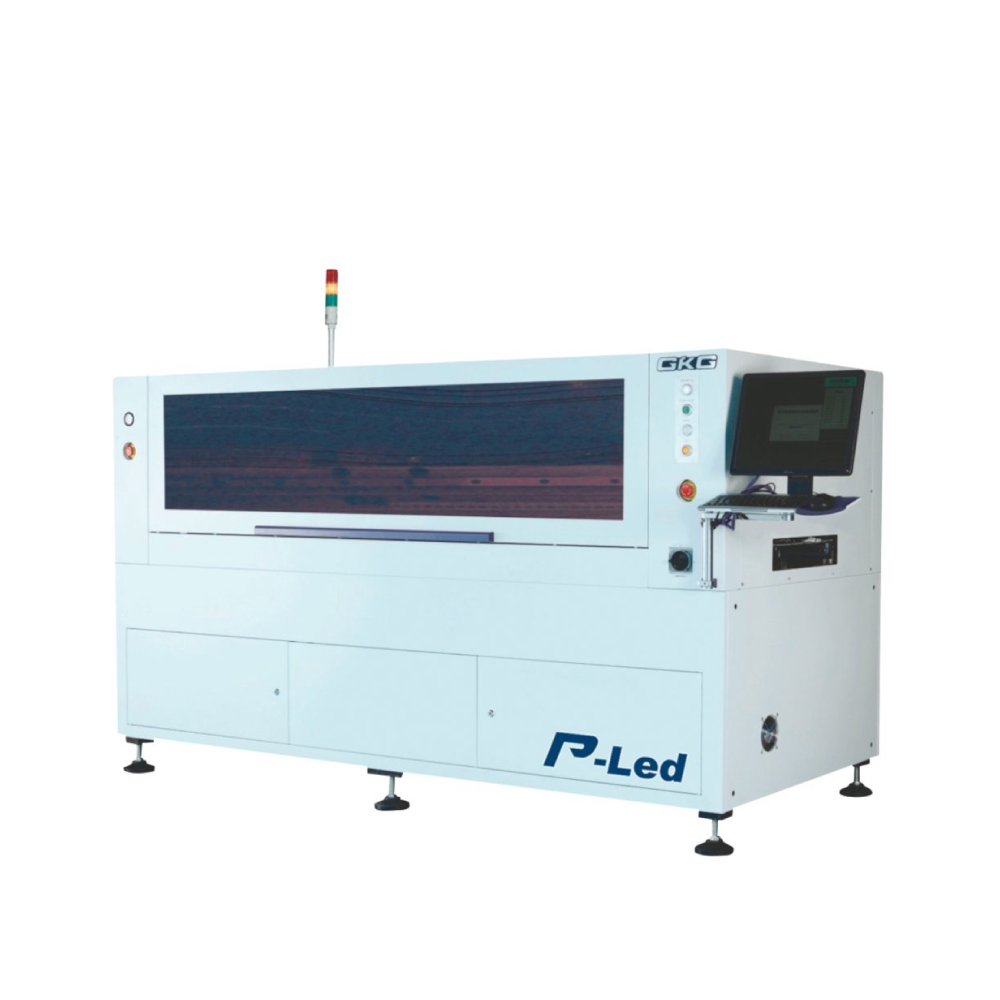

P-LED
- LED Tube PCB paste printing
- Catering to customers’ ultra-long printing needs
- Serves long LED Tube PCB up to 1.524m length
- 2D paste inspection function to detect insufficient paste, bridging and other defects
- Certified printing capabilities to ensure high quality printing results
| Maximum Board Size | 1,524 mm x 350 mm |
| Minimum Board Size | 80 mm x 50 mm |
| Board Thickness | 0.8~6 mm |
| Maximum Board Weight | 5 kg |
| Board Edge Clearance | 3.5 mm |
| Board Height | 15 mm |
| Transport Height | 900 ± 40 mm |
| Transport Speed | Subsection Control. 1500mm/s (max) |
| Board Clamp | Top clamp (Manual) & Motorized side clamp |
| Support System | Std. Magnetic support pins, bars, blocks. |
