Maker-Ray

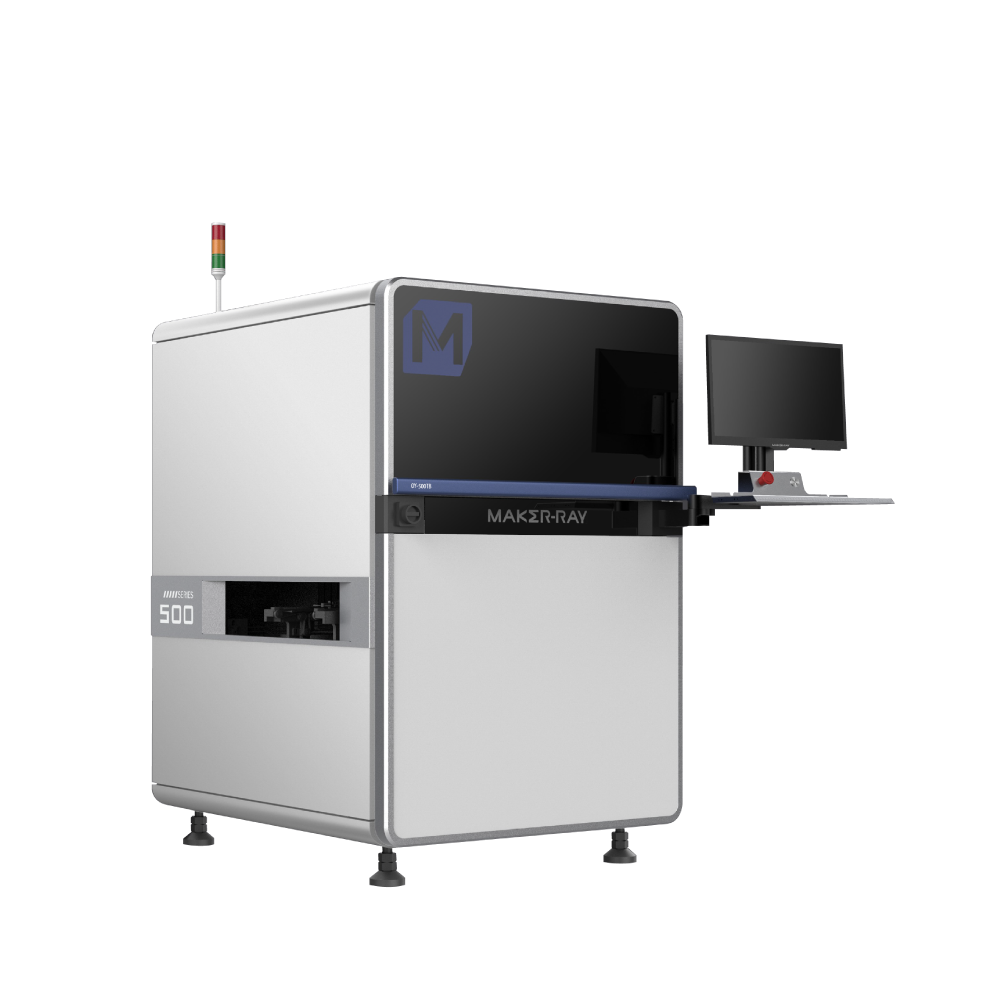

OY-500TB
- In-line post-wave double-sided inspection machine
- Top and bottom simultaneous inspection
- Accurate, quick and flexible
- Deep learning algorithm
- “One-click” easy programming
- Automatic solder point and component searching
- Auto optimization of capturing path to shorten cycle time
- On-line non-stop debugging function with immediate effect
- Industry 4.0 ready
- Improved product quality
- Increased working efficiency
| Dimensions (L*W*H) | 1,080 x 1,336 x 1,629 mm |
| Conveyor height | 750 ± 20 mm |
| PCB size (L*W) | (50 x 50) ~ (510 x 460) mm |
| Light source | RGB + W LED (Top & Bottom) |
| Vision system | 12MP camera (Top & Bottom) |
| Field of view | 60 x 45 mm |
| Resolution | 15 um |
| Defect type (Component) | Missing part, extra part, wrong polarity, misalignment, damage, foreign part |
| Defect type (Solder) | Excess solder, insufficient solder, solder bridge, solder skip, non-wetting, blow hole |
