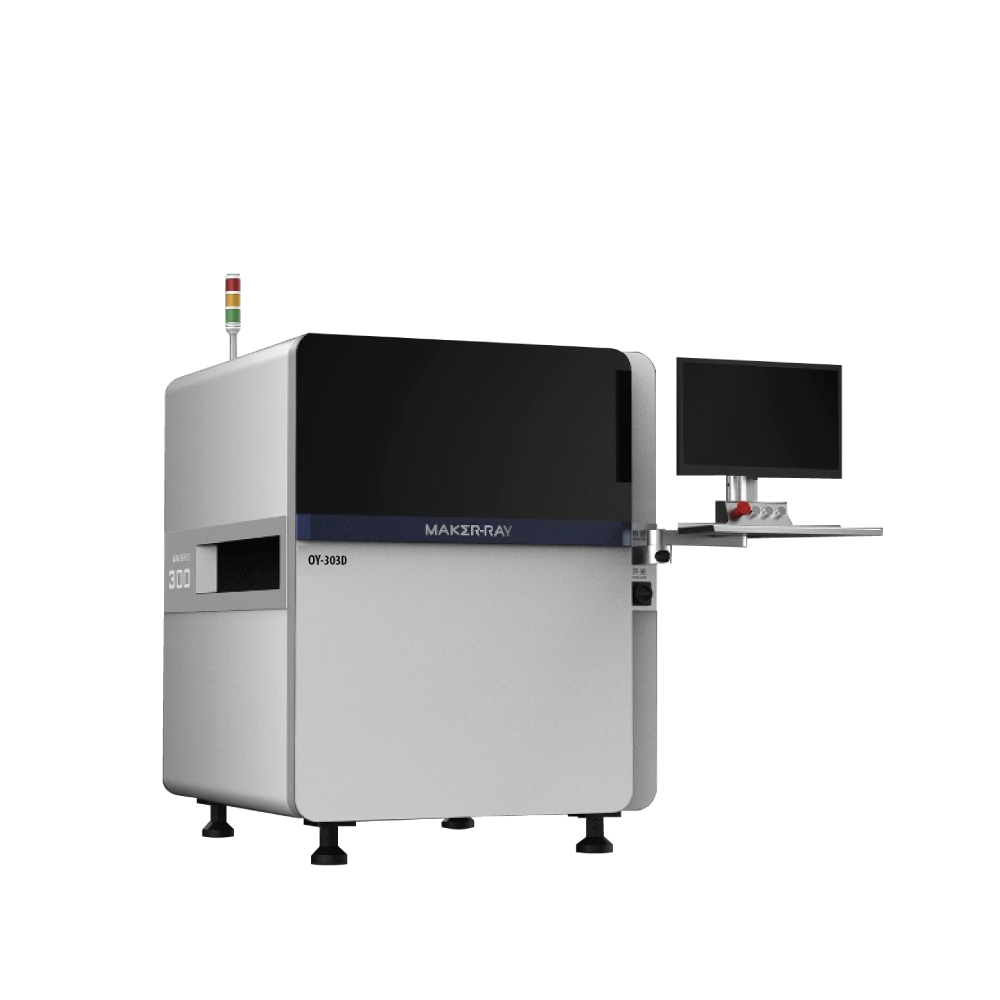

OY-303D
- In-line post-wave inspection machine
- Bottom-up inspection (No flipping is needed)
- Strong and stable marble platform
- Accurate, quick and flexible
- Deep learning algorithm
- "One-click" easy programming, time saving up to 80%
- Auto optimization of capturing path to shorten cycle time
- On-line non-stop debugging function with immediate effect
- Improved product quality
- Increased working efficiency
- Industry 4.0 ready
- Larger model available to cater large board size (OY-303D-L)
| Dimensions (L*W*H) | 1,100 x 1,160 x 1,340 mm |
| Conveyor height | 750 ± 20 mm |
| PCB size (L*W) | 50 x 50 - 450 x 400 mm |
| Light source | RGB + W LED (Bottom) |
| Vision system | 12MP camera (Bottom) |
| Field of View (FOV) | 60 x 45 mm |
| Resolution | 15 um |
| Defect type (Component) | Missing part, extra part, wrong part, wrong polarity, misalignment |
| Defect type (Solder) | Excess solder, insufficient solder, solder bridge, solder skip, non-wetting, blow hole |
