Maker-Ray

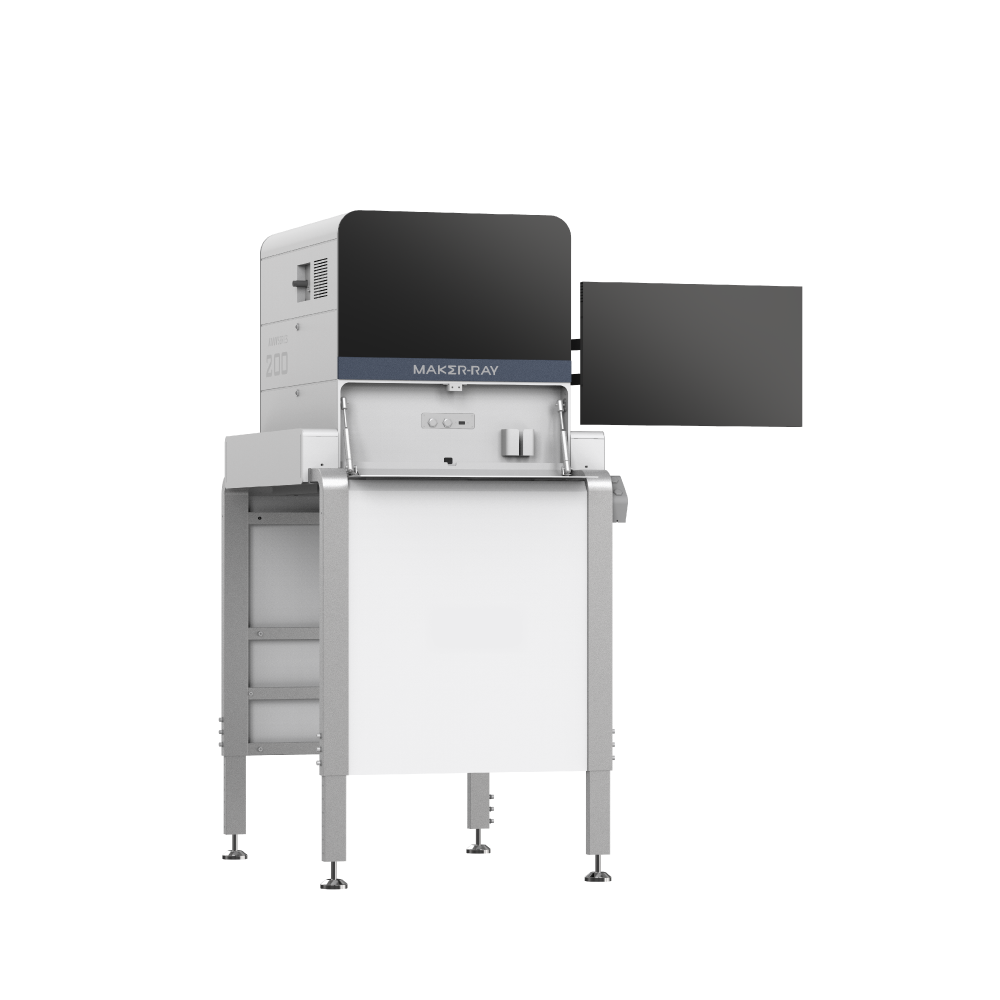

OY-203D/203D+
- Automated pre-wave inspection machine
- With deep learning algorithm
- For manual insertion inspection
- Accurate, quick and flexible
- Slot-in type with easy set-up
- Without production line rearrangement
- Easy integration into existing production line and communication ability
- Adjustable height and width, fit into any brands of conveyor
- In-line non-stop production
- "One-click" easy programming
- Program splitting ability for longer board inspection
- Industry 4.0 ready
- With NG tracking light bar
- With control box for communication with MI conveyor
| Resolution | 75um (OY-203D) / 80um (OY-203D+) |
| Resolution | 75um (OY-203D) / 80um (OY-203D+) |
| Dimensions (L*W*H) | 715 x (1,020 - 1,210) x (1,315 - 1,700) mm |
| Weight | Approx. 100 kg |
| Control system | PC (Ubuntu 18.04 LTS) |
| Power supply | AC 220 V, 200 W |
| Inspection method | Deep learning algorithm, image comparison, color comparison, OCR, etc. |
| Light source | Flat white LED |
| Vision system | 20MP (OY-203D) / 31MP (OY-203D+) |
| Resolution | 75um (OY-203D) / 80um (OY-203D+) |
| Effective inspection area (L*W) | 266 x 400 mm (OY-203D) / 390 x 520 mm (OY-203D+) |
| Inspectable defect type | Missing part, extra part, wrong part, wrong polarity, misalignment |
