Martintrier

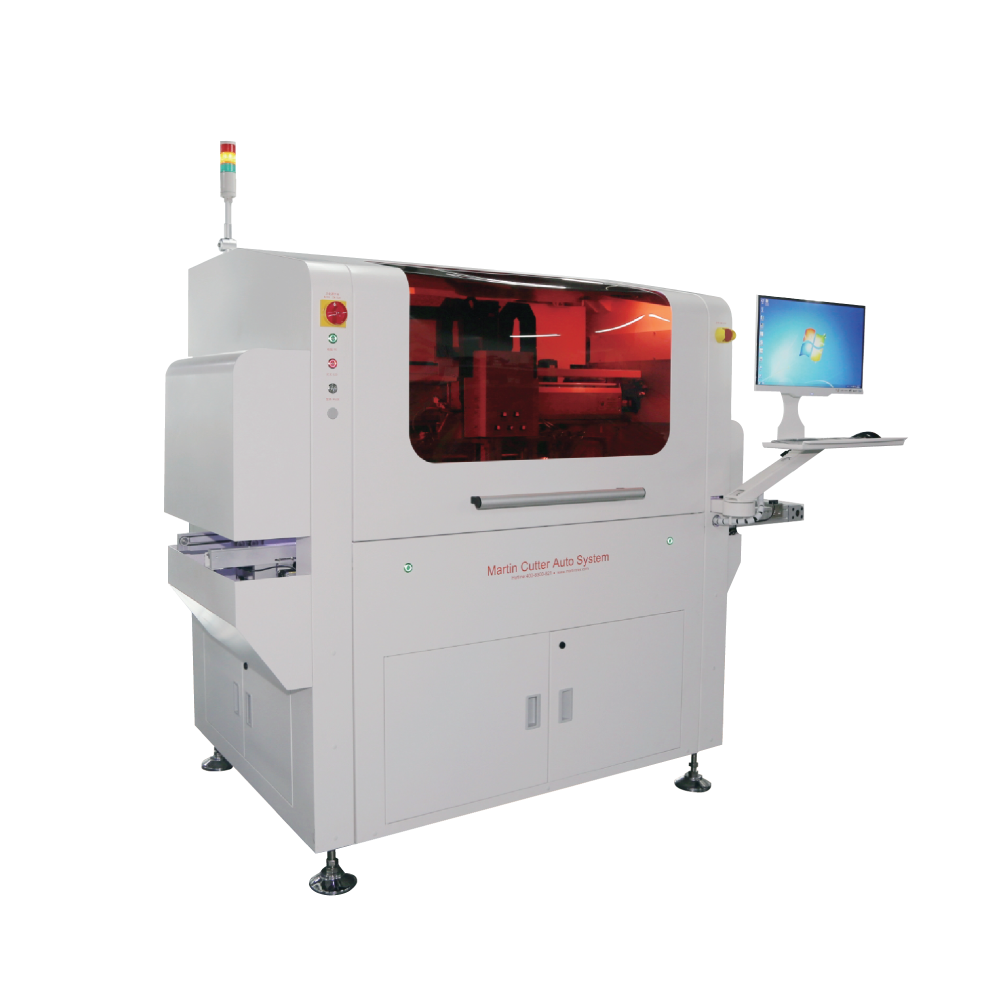

MD-80Ti
- In-line PCB router
- Twin-table platform
- Integrated with automation and advanced spindle module
- Cutting path optimization
- Router bit diameter check system
- Router bit broken detection
- Automatic router bit change
- Achieve non-stop routing process
- Pneumatical spindle motor
- Uniquely designed dust collector
- MES (i4.0) ready
| Dimension | L2,353 * W1,190 * H1,870 mm |
| Weight | Approx. 1300 kg |
| Working platforms | Twin tables |
| Effective cutting area | L450 * W400 mm (Each table) |
| Spindle speed range | 5,000 - 80,000 rpm |
| PCB grasp system | Dual-arm vacuum gripper |
| PCB picking method | Vacuum suction |
