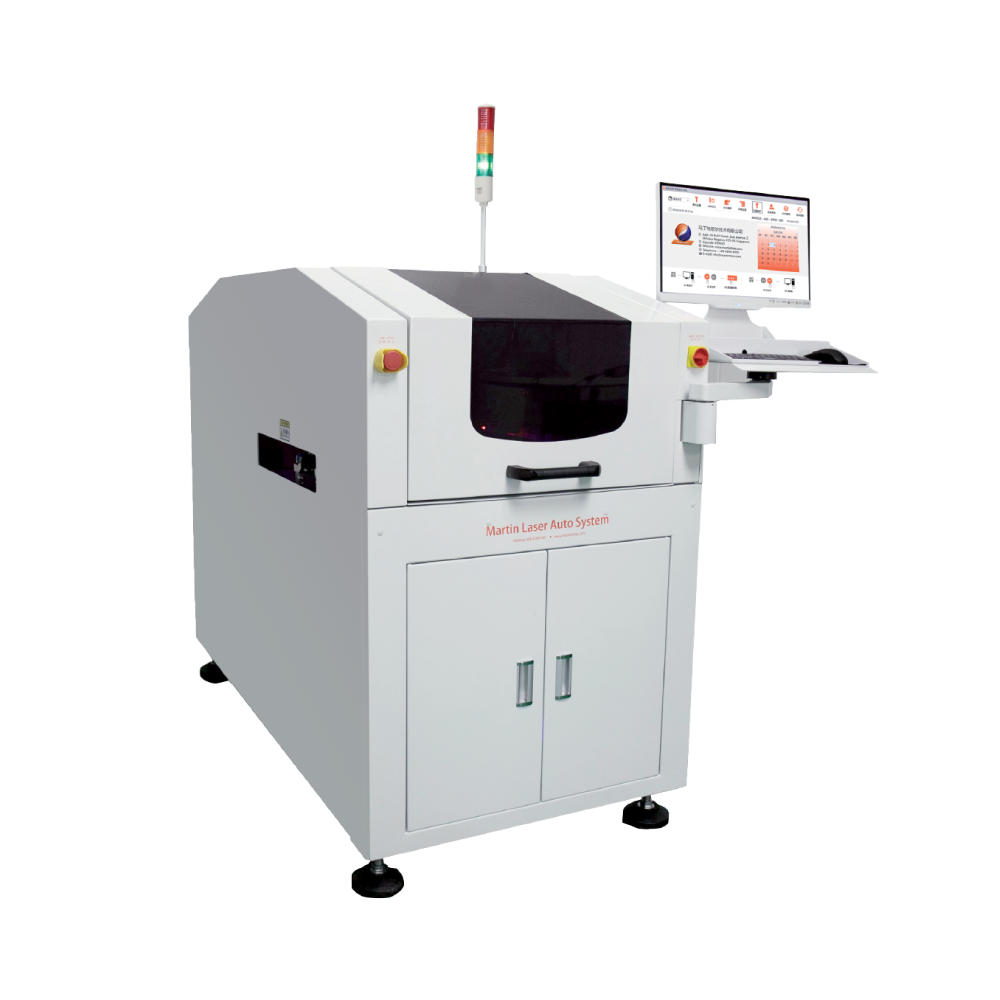

MAG
- In-line laser marking machine
- Premium laser sources (CO2 / UV / Green / Fiber) from USA & Germany
- Longer lifespan and high marking accuracy
- Dual-camera design with German Basler 5.0M pixel CCD camera
- 2D code verification
- XY-axis and angle compensation
- Double-sided marking with integrated flipper
- Auto focus function with height measurement system (HMS)
- MVC coaxial vision system
- Industry 4.0 ready
| Dimensions (L*W*H) | 856 x 1,630 x 1,520 mm |
| Total effective marking area (L*W) | 460 x 330 mm |
| PCB size (L*W) | (50 x 75) ~ (460 x 460) mm |
| PCB Thickness | 0.4 ~ 3.5 mm |
| PCB weight | 2 kg |
| Marking Position Accuracy | ± 20 um |
| Marking Angle | 0 - 359° |
| Marking Type | 1D barcode, 2D code, alphabet, number, logo, graphic |
| Laser source | CO₂ (MAG-C30) / UV (MAG-U5) / Green (MAG-G10) / Fiber (MAG-F30) |
