Martintrier

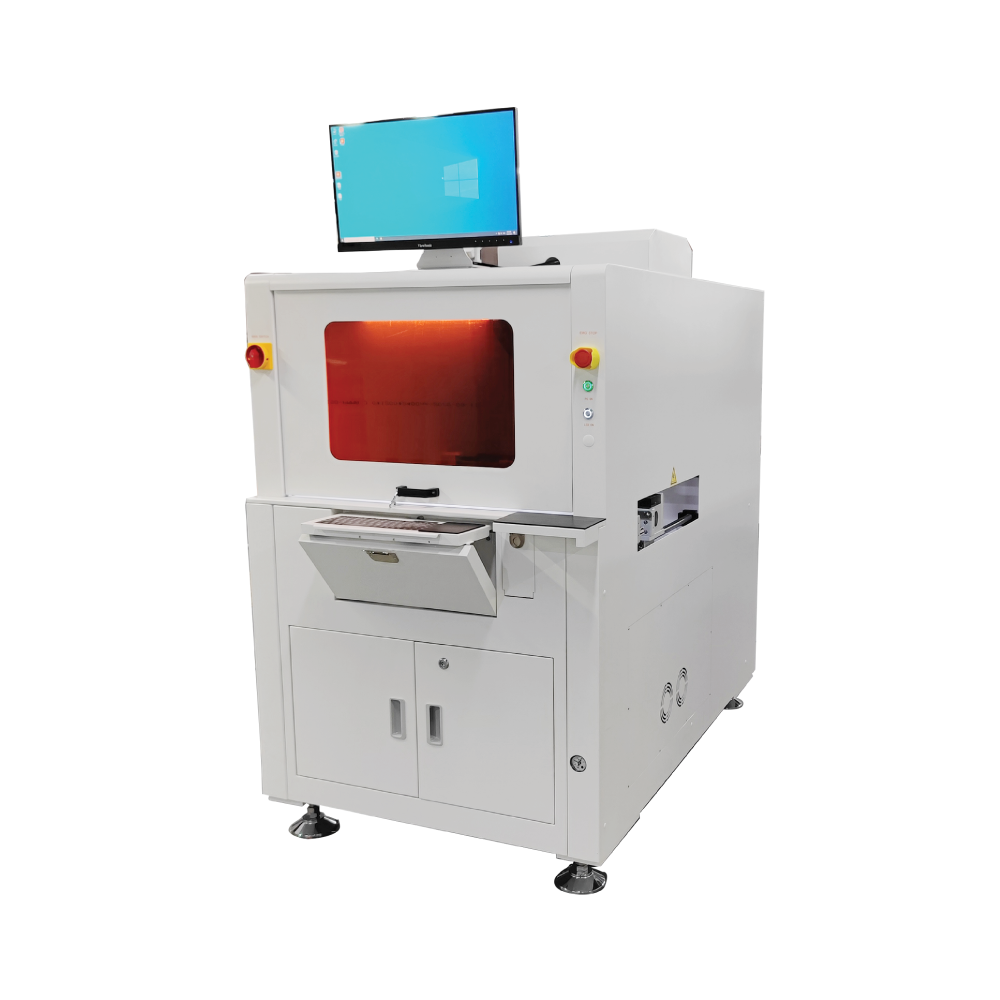

MAC
- In-line laser marking machine
- Expanded marking capabilities
- Premium laser sources (CO2 / UV / Green / Fiber) from USA & Germany
- Longer lifespan and high marking accuracy
- Dual-camera design for fiducial mark recognition & 2D code validation
- XY-axis and angle compensation
- 3-Stage conveyor for shorter takt time
- Stable clamping for heavy products
- Cost-effective marking solution without compromising performance
- Double-sided marking with integrated flipper
- Industry 4.0 ready
| Dimensions (L*W*H) | 960 x 1,550 x 1,544 mm |
| Total effective marking area (L*W) | 510 x 460 mm |
| PCB size (L*W) | (65 x 65) ~ (510 x 460) mm |
| PCB Thickness | 0.4 ~ 3.5 mm |
| PCB weight | 2 kg |
| Conveyor type | 3-Stage belt conveyor |
| Marking Position Accuracy | ± 20 um |
| Marking Angle | 0 - 359° |
| Marking Type | 1D barcode, 2D code, alphabet, number, logo, graphic |
| Laser source | CO2 (MAC-C30) / UV (MAC-U5) / Green (MAC-G10) / Fiber (MAC-F30) |
