Keli

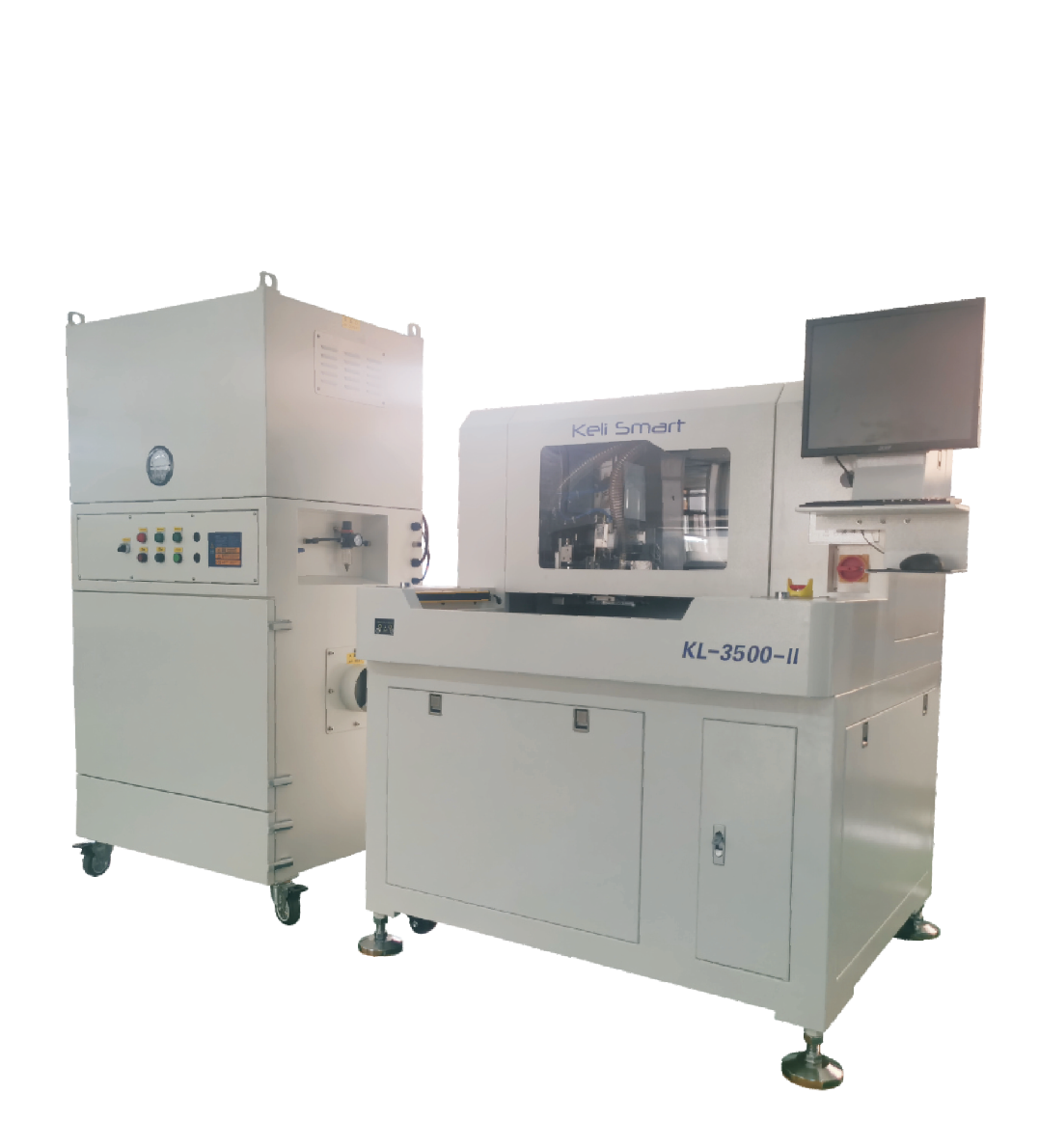

KL-3500-II
- Stand-alone PCB router
- Twin-table platform
- Fiducial mark calibrate
- Easy programming and model changeover
- Cutter life monitoring
- Cutting path optimizing
- Left and right tray can be combined to perform a large area of cutting work
| Dimensions: L x W x H | 1,240 x 1,150 x 1,531 mm |
| Weight | Approx. 900 kg |
| No. of axis | 4 (X, Y1, Y2, Z) |
| Effective cutting area: L x W | 360 x 310 mm (With dual-table mode) / 730 x 310 mm (With combined-table mode) |
| Spindle speed range | 5,000 - 60,000 RPM |
| Positioning accuracy & repeatability | ± 0.01 mm |
| Cutting accuracy | ± 0.05 mm |
