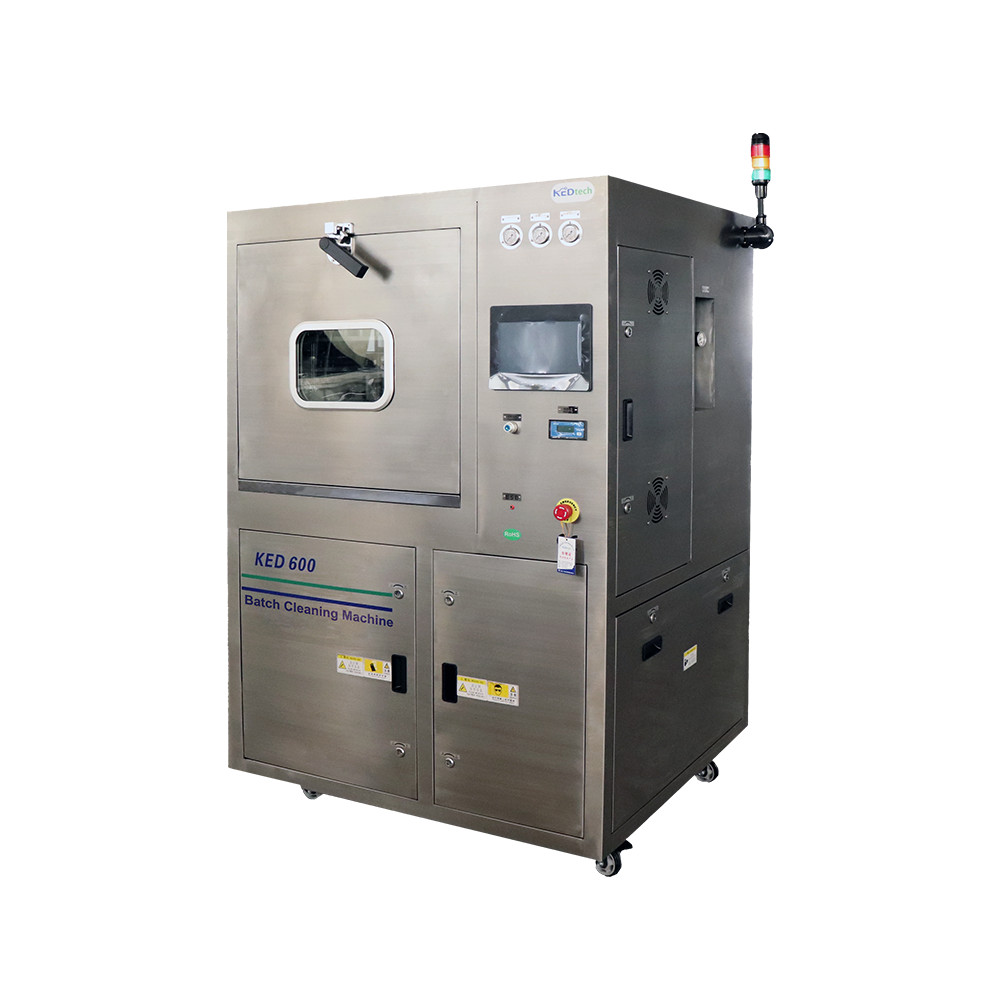

KED600
- Cleaning room equipped with visual window, cleaning process be clear at a glance
- Solve the small size of PCBA in the cleaning process by spray under high pressure collision, splash problem
- Greatly increased cleaning efficiency., shorten cleaning time.
- According to different PCBA model set with different process parameters, quick edit and variety of different process parameters can be stored program, including: solvent temperature, cleaning time, rinse times/time, rinse temperature, dry time, drying temperature, conductivity monitoring parameters, etc.
| Clean Basket Size | Max 645mm(L) × 560mm(W) × 100mm(H), 2layers. |
| Dilution Tank Capacity | Max 60L |
| Concentrate Tank Capacity | 30L |
| Spray Tank Capacity | 17L |
| Cleaning Time | 5~30 Minutes (reference) |
| Cleaning Liquid Isolation Time | 1~3 Minutes |
| Rinsing Time | 1-2 Minutes (reference) |
| Drying Time | 20~40 Minutes (reference) |
| Cleaning Liquid Recovery Filter | 1μm (filter tiny impurities: solder paste, flux, rosin and pollutants) |
| Rinsing Liquid Discharge Filter | 5μm (filter tiny impurities: solder paste, flux, rosin and pollutants) |
