FACC

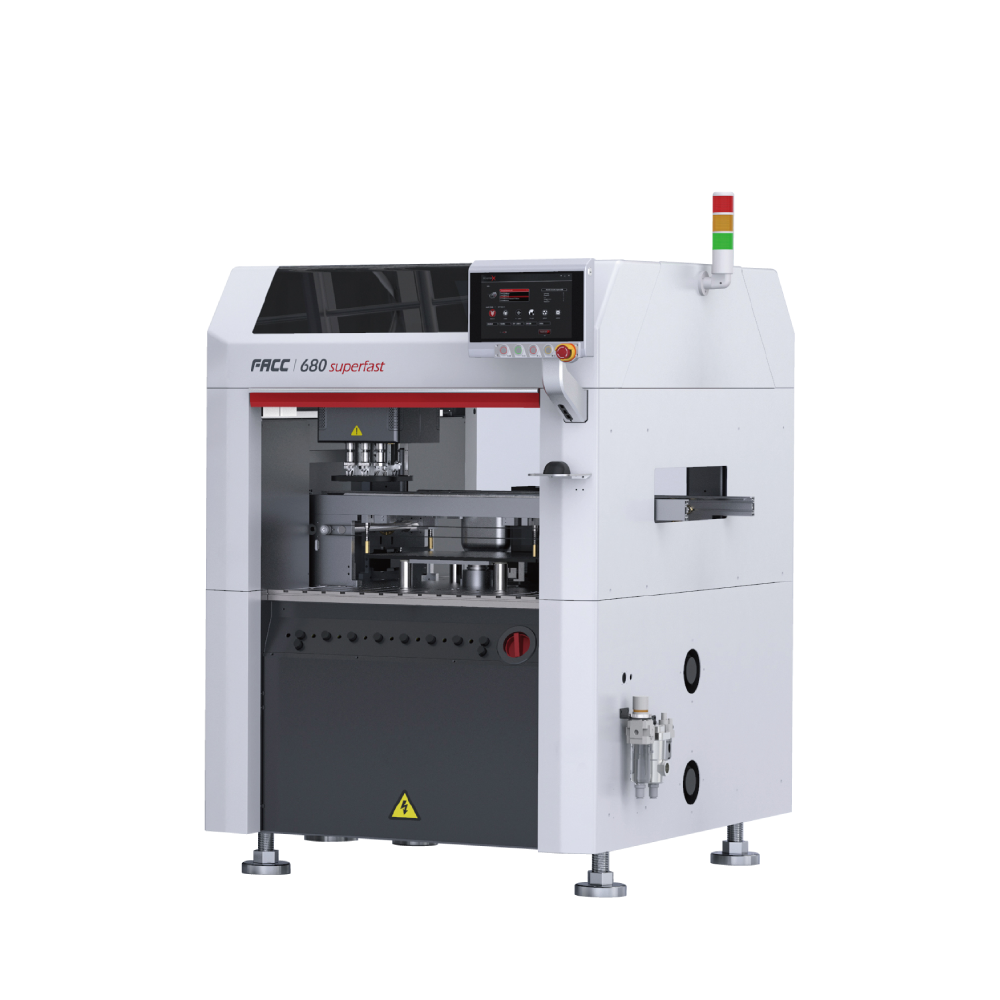

JS-680/680XL
- Odd shape components insertion machine
- Compact size
- High speed, performance & flexibility

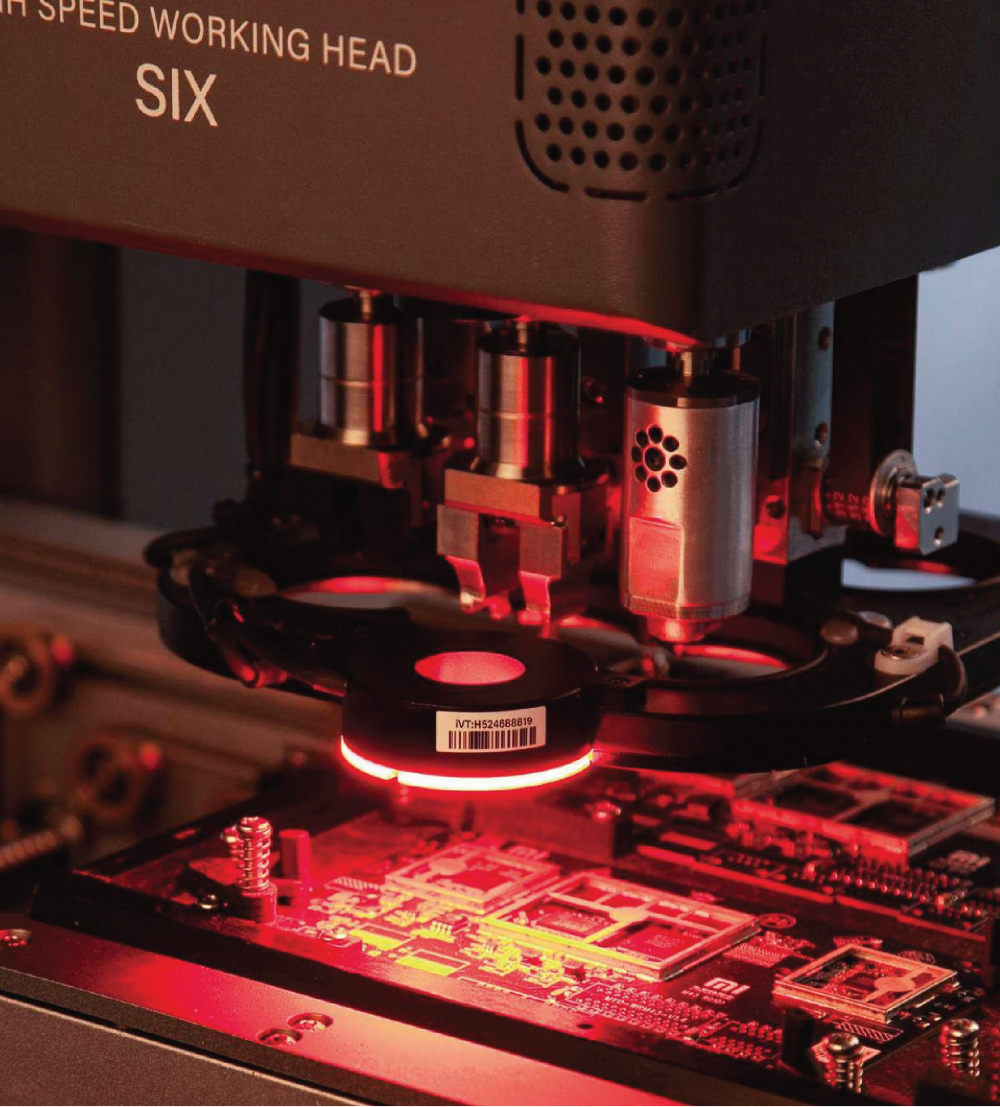

- With 6 high-speed mounting heads
- With 3 vision cameras
- With insertion inspection system
- SmartAI™Pro 3.0 adopts deep learning algorithm and simplifies the tedious programming process
- OEE system enhances the working efficiency and reduces production cost

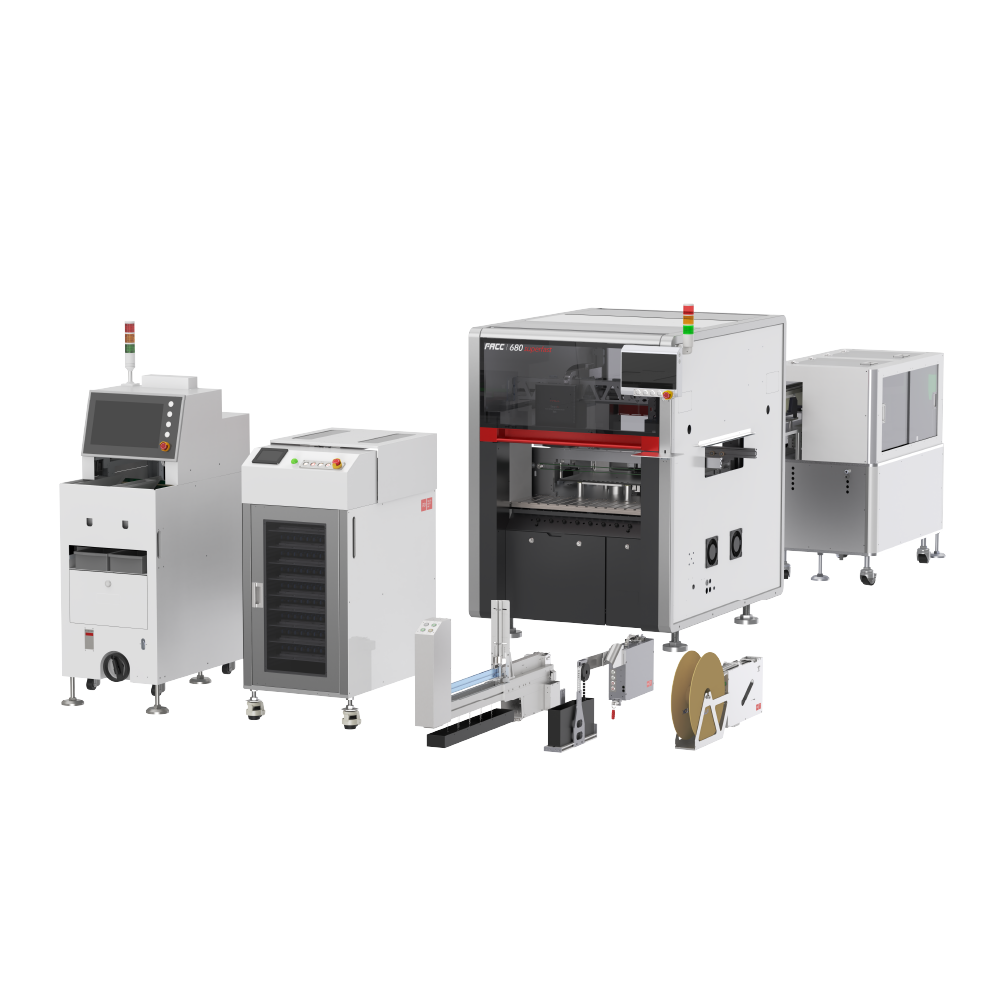

- Able to pair up with 6 iFD™ Feeders
- JS-680 can cater board width up to 400 mm
- JS-680XL can cater board width up to 550 mm
| Dimensions: L x W x H | 975 x 1,295 x 1,500 mm (JS-680) / 1,020 x 1,390 x 1,535 mm (JS-680XL) |
| Max. board size: L x W | 410 x 400 mm (JS-680) / 410 x 550 mm (JS-680XL) |
| Insertion speed | 5300 cph |
| Positioning repeatability | ± 0.02 mm |
| Number of mounting head | 6 |
| Max. component weight | 300 g |
| Insertion angle | 0 - 360° |
