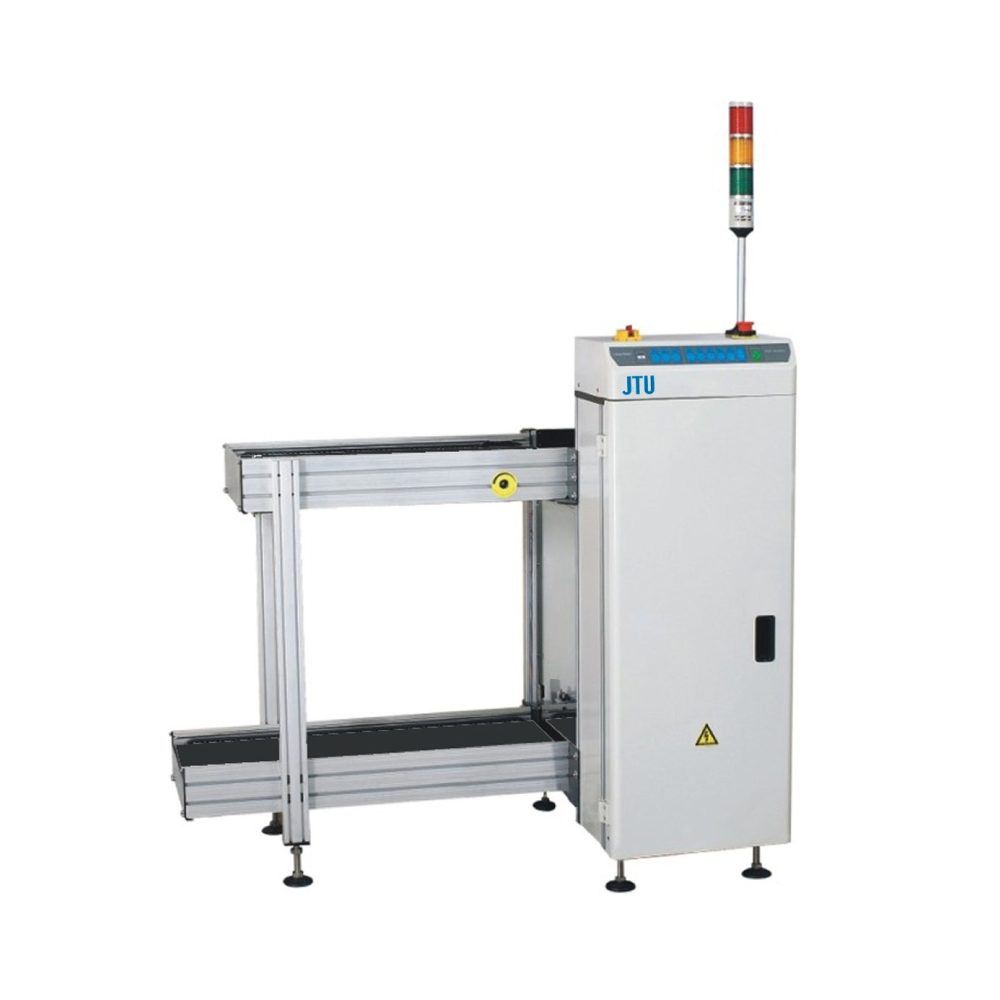

JL-500
  • Programmable Logic Controller
  • Able to link with vacuum pick up loader
  • 3 color light tower lamp with audible alarm
  • High Capacity - load up to 5 magazine racks
  • Left to right travel, front rail fixed
  • Conforms to SMEMA Spec 1.2
  • Magazine change over time: 35 sec
Capacity 5racks 2up/3down
PCB Size 50mm x 50mm - 330mm x 250mm
Magazine Size 355mm x 318mm x 570mm
Dimension 1660mm x 830mm x 1080mm
Weight 170kg
Air 5kgf/cm
Power AC110V / 220V 50Hz/ 60Hz 1 Phase
