JTU

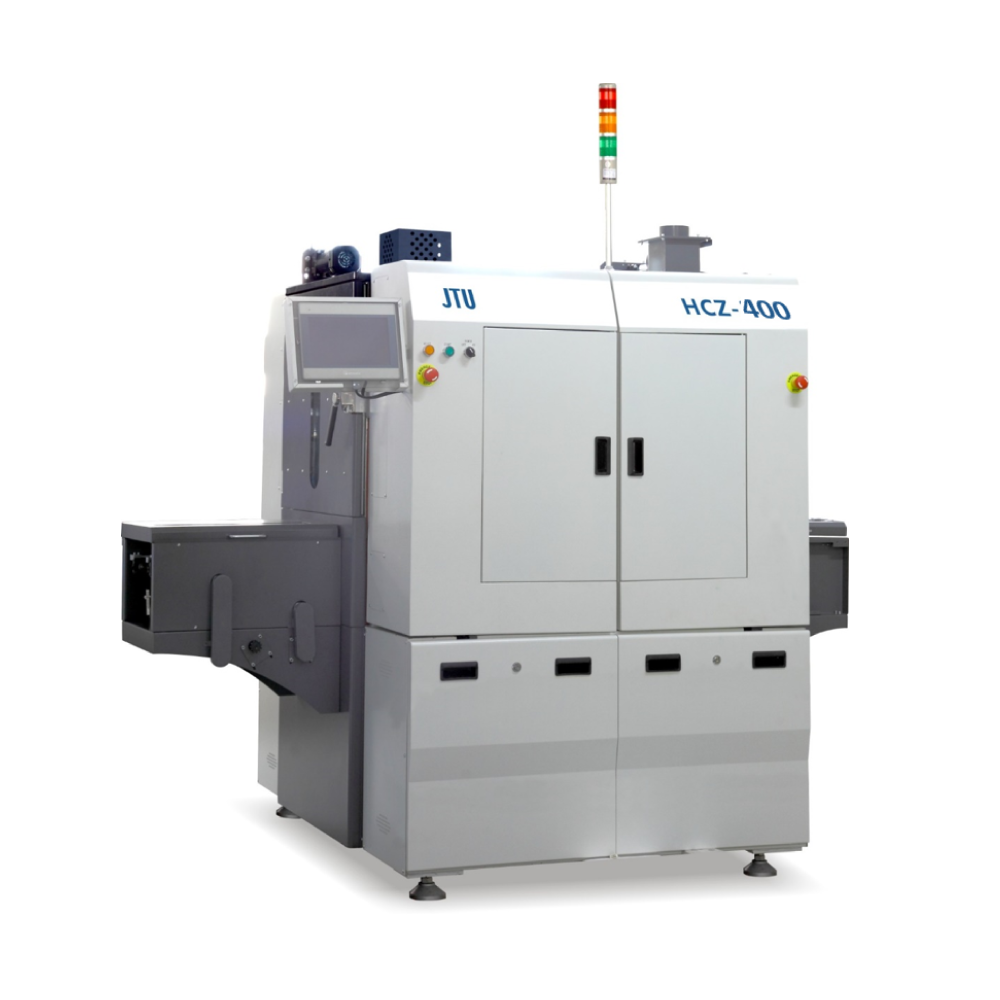

HCZ-400
- HCZ series vertical oven with minimum heat loss
- Suitable for underfill and encapsulant curing
- Vertical design helps saving space and cost
- Consistent process control with minimum human intervention and mistakes
- High throughput and productive
- Perfect solution for long curing process
| Dimension | L2365 x W2000 x H2050 mm |
| Weight | Approx. 1800 KG |
| Max. PCB size | L450 x W400 mm |
| Object weight | Max. 2 KG per level |
| Temperature control method | PID closed loop control + SSR drive |
| Temperature set-up range | Room temp. ~ 200°C |
| Heating configuration | 4*2 = 8 heating modules |
| Heating power | 8*6 kW = 48 kW |
| Temperature control precision | ± 1°C |
