GKG

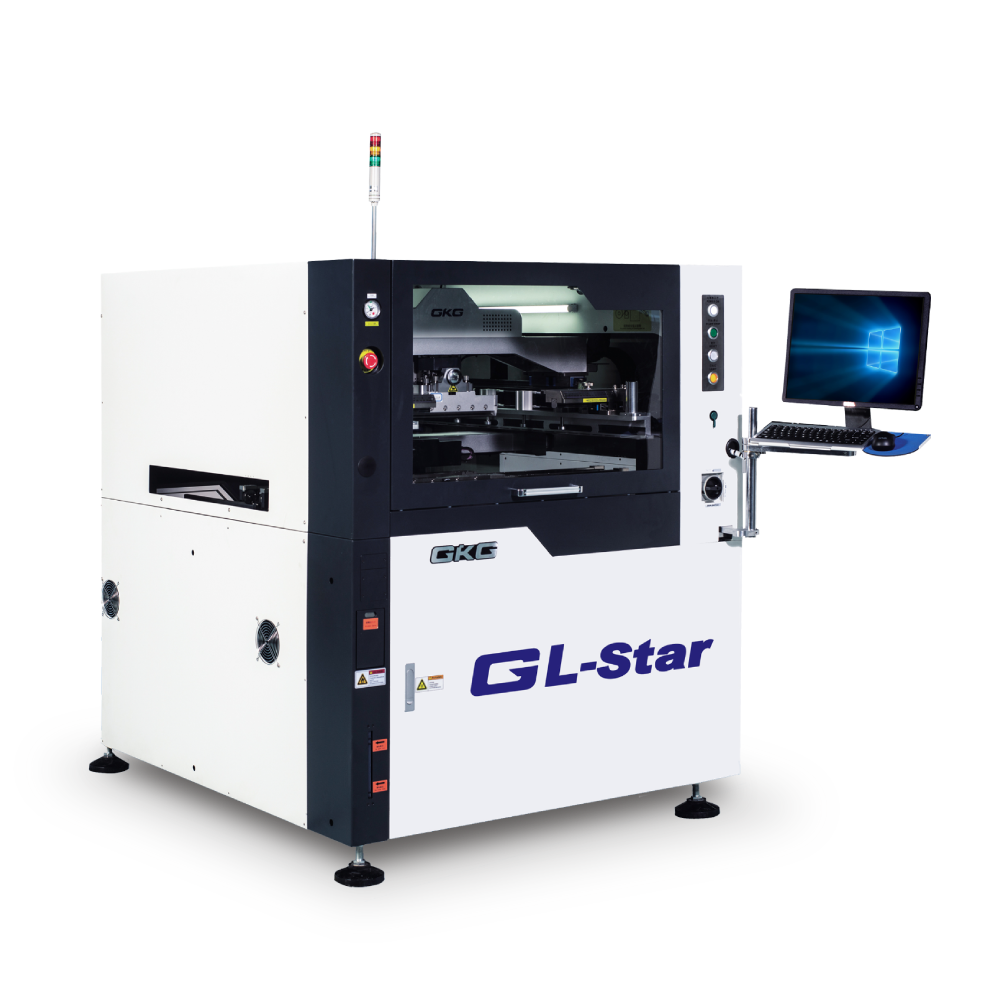

GL-Star
- Fully automatic SMT printer
- L size board solder paste printing
- Automatic identification and accurate alignment to ensure precise printing
- Automatic stencil positioning
- Auto retractable top clamping and stencil lock
- Minimal human intervention
- Industry 4.0 ready
| Maximum Board Size | 510mm x 510mm |
| Minimum Board Size | 50mm x 50mm |
| Board Thickness | 0.4~6mm |
| Maximum Board Weight | 5kg |
| Board Edge Clearance | 3mm |
| PCB Bottom Clearance | 23mm |
| Conveyor height | 900 ± 40mm |
| Conveyor speed | Max. 1,500mm/s |
| Clamping Method | Auto retractable top clamp & Motorized side clamp |
| Support System | Magnetic support pins, bars, blocks, vacuum suction |
