GKG

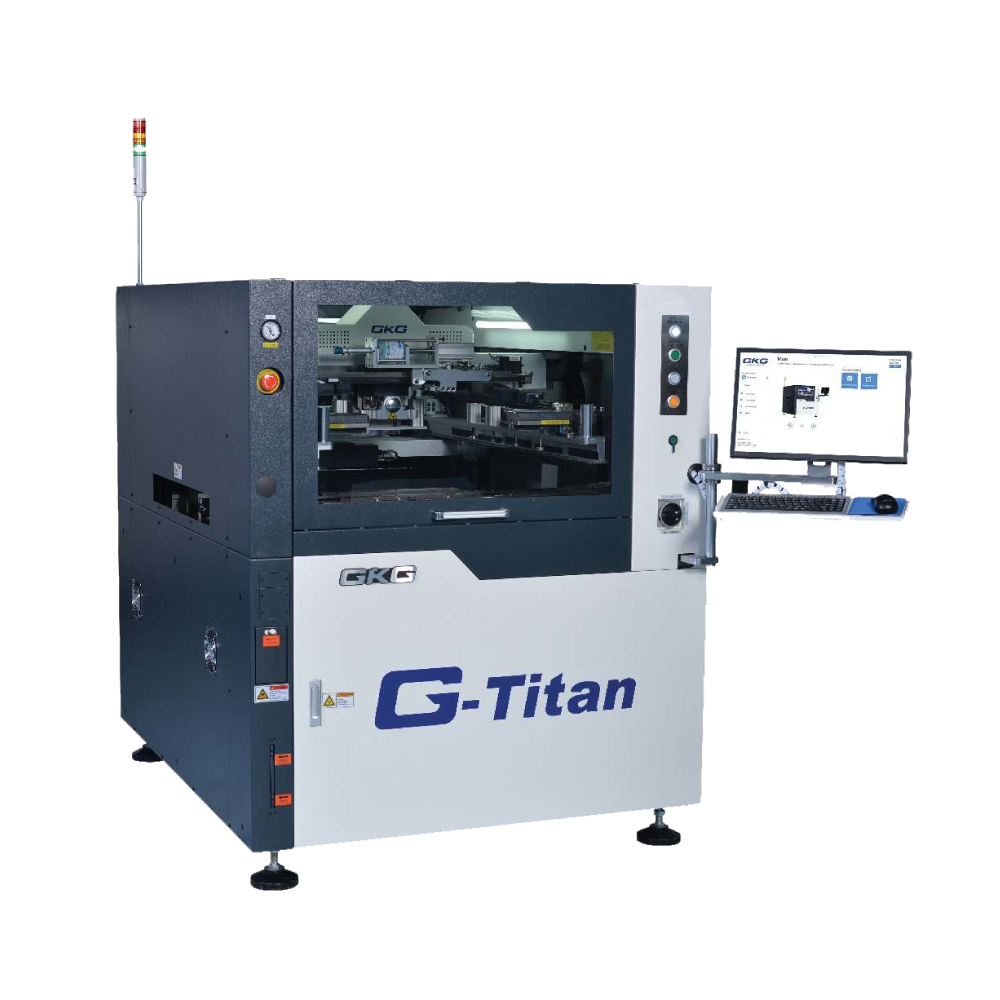

G-Titan
- Fully automatic screen printer
- Winner of Productonica Innovation Award 2017
- Optimum-Paste Control (OPC)
- Quality-Print Control (QPC)
- Auto paste dispensing
- Paste rolling diameter monitoring system
- OPC Squeegee with retainers for adjustment
- Stencil aperture inspection system
- Stencil lock & PCB clamper
- Minimal human intervention towards 'Lights-Out Manufacturing'
- Industry 4.0 Ready
| Process Alignment Capability | 2 Cpk @ ± 18 microns 6 sigma |
| Machine Alignment Capability | 2 Cmk @ ± 10 microns 6 sigma |
| Core Cycle Time | <8.5 secs (Excluding printing & cleaning) |
| Product Changover time | < 3 mins |
| New Product Set up time | < 10 mins |
| Maximum Size (L x W) | 510 mm x 510 mm |
| Minimum Size (L x W) | 50 mm x 50 mm |
| PCB Thickness | 0.4~6 mm |
| PCB Thickness Adjustment | Automatic |
| PCB Warpage | Max. 1% diagonally |
