GKG

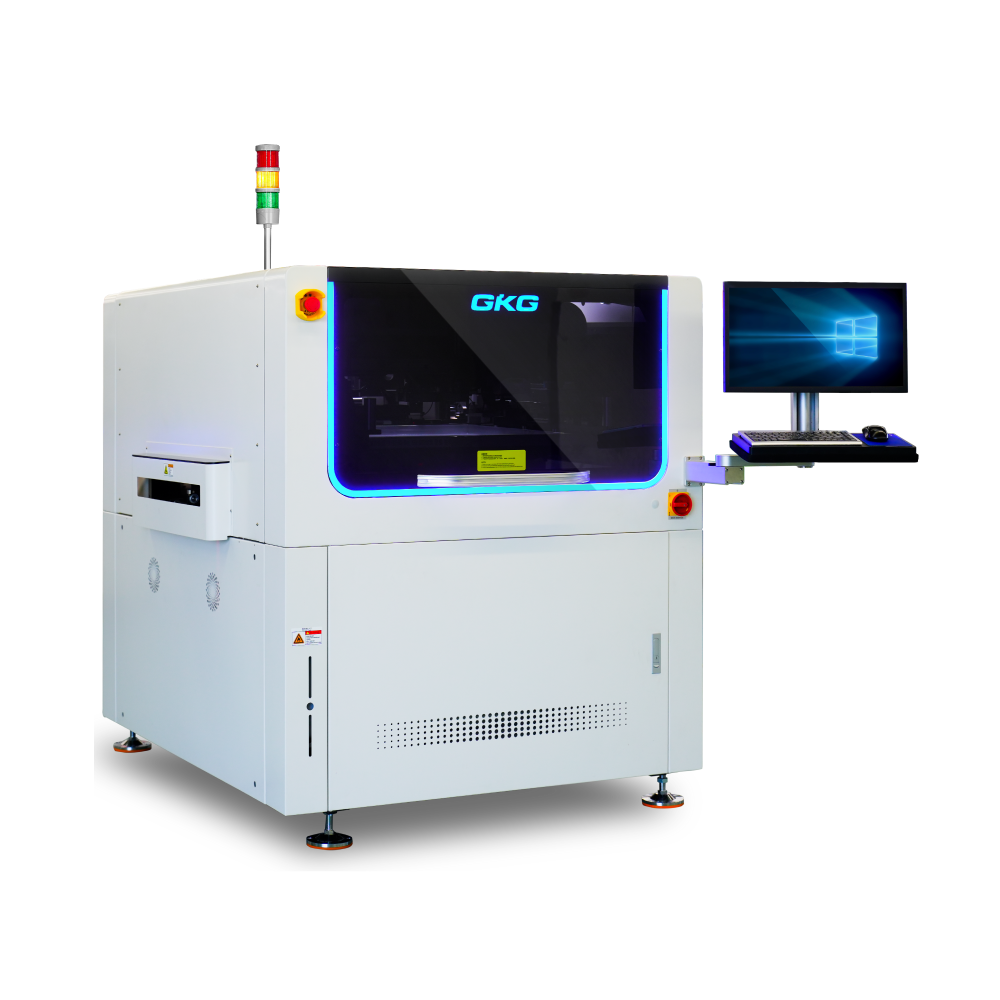

G-Tera
- All-NEW Ultra Precision High Speed SMT Printer
- Lightning speed with core cycle time 5.2 secs
- Upgraded linear motor-driven "LIGHT-Bolt" CCD camera
- Independent and paperless cleaning system
- Unmatched printing accuracy up to ±12.5 um @ 6 sigma, ≥2 Cpk
- Stencil lock and balanced squeegee pressure across product
- Ready to pair with AGV for automatic stencil changing, towards Lights Out Manufacturing (LOM)
- Full traceability conforming to Industrial 4.0
| Dimension (L x W x H) | 1,258 x 1,540 x 1,520 mm |
| Machine Weight | 1,250 kg |
| Machine Alignment Capability | ±8 um @ 6 sigma, ≥2 Cmk |
| Process Alignment Capability | ±12.5um @ 6 sigma, ≥2 Cpk |
| Core Cycle Time | 5.2 secs |
| Max. Board Size (L x W) | Single-stage mode: 510 x 510 mm |
| Max. Board Size (L x W) | 3-Stage mode: 265 x 510 mm (Optional: 400 x 510 mm) |
