GKG

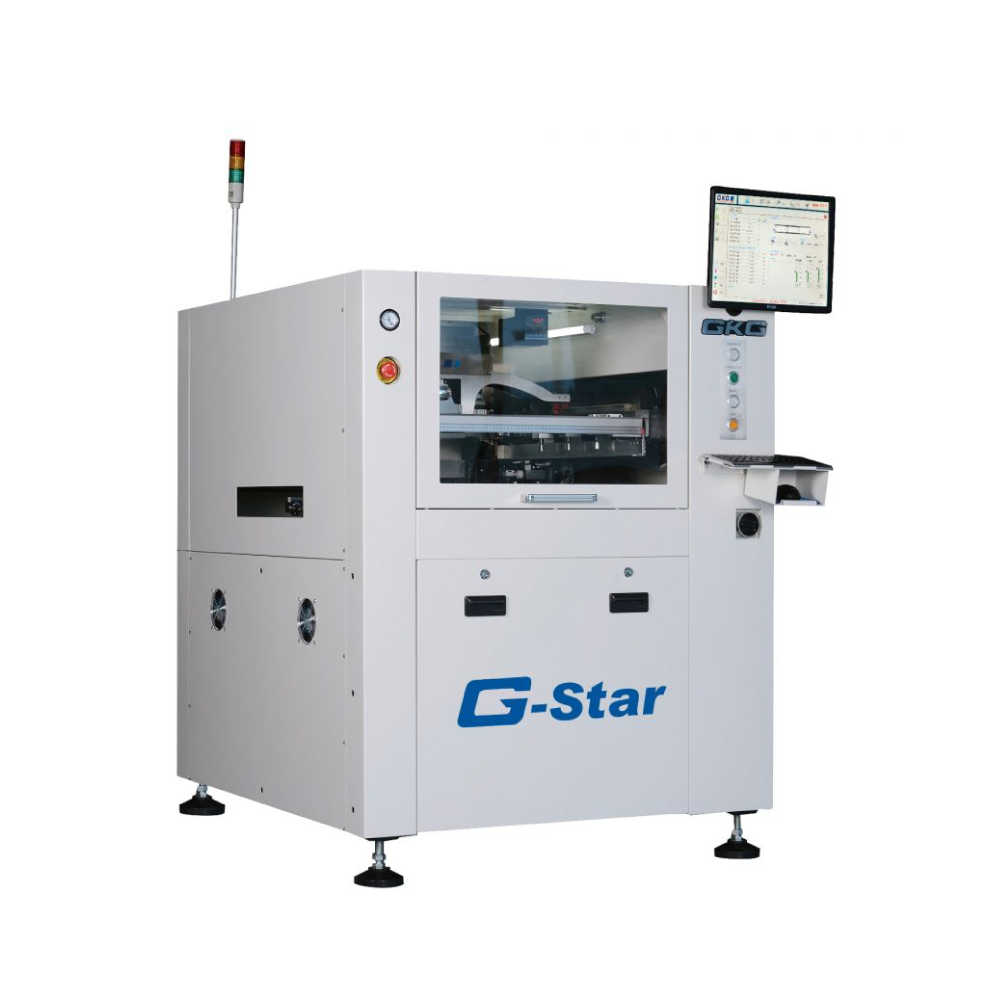

G-Star
- Screen printer for M size board
- Successfully attained 01005 miniature printing
- Full contact with the stencil
- Top and motorized side clamp
- Improved cleaning system
- 2D paste inspection to detect insufficient paste, bridging and other defects
- Ensures superior printing quality
| Maximum Board Size | 400mm x 340mm |
| Minimum Board Size | 50mm x 50mm |
| Board Thickness | 0.4~6mm |
| Maximum Board Weight | 3kg |
| Board Edge Clearance | 3mm |
| Board Height | 15mm |
| Transport Height | 900 ± 40mm |
| Transport Speed | Subsection Control. 1500mm/s (max) |
| Board Clamp | Top clamp (manual) and motorized side clamp |
| Support System | Magnetic support pins, bars, blocks, vacuum suction |
