GKG

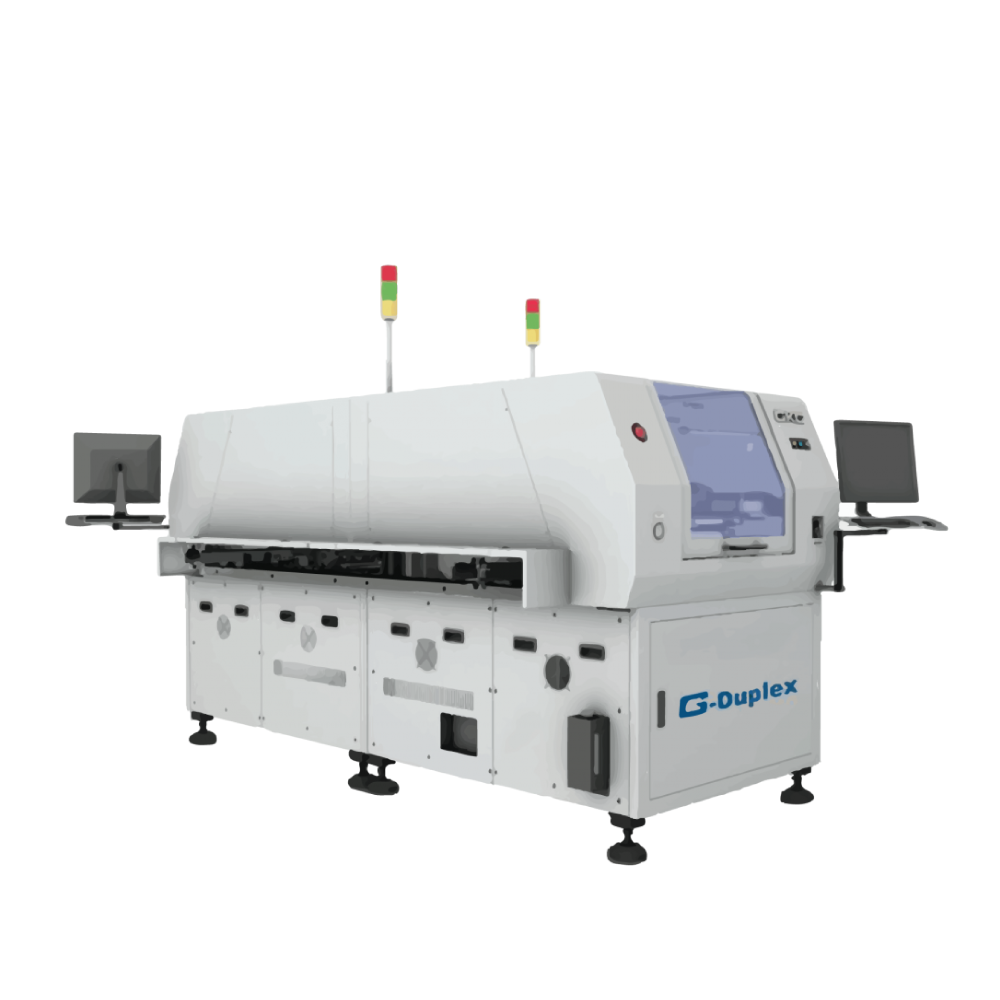

G-Duplex
- Dual-lane screen printer
- Equipped with a built-in traverser to match with any dual lane SMT mounter
- Furnished with a 3-stage conveyor
- Back-to-back configuration
- Enhances performance capability and efficiency
- Able to operate independently to link up with any single lane SMT line
- High flexibility to adapt changes in production layout
| Maximum Board Size | 400 mm x 300 mm |
| Minimum Board Size | 50 mm x 50 mm |
| Board Thickness | 0.4~6 mm |
| Maximum Board Weight | 3kg |
| Board Edge Clearance | 3mm |
| Board Height | 23mm |
| Transport Height | 900 ± 40mm |
| Transport Speed | Subsection Control. 1500mm/s (max) |
| Board Clamp | Retractable top clamp, motor controlled side clamp |
| Support System | Magnetic support pins, bars, blocks, vacuum suction |
