ZSW

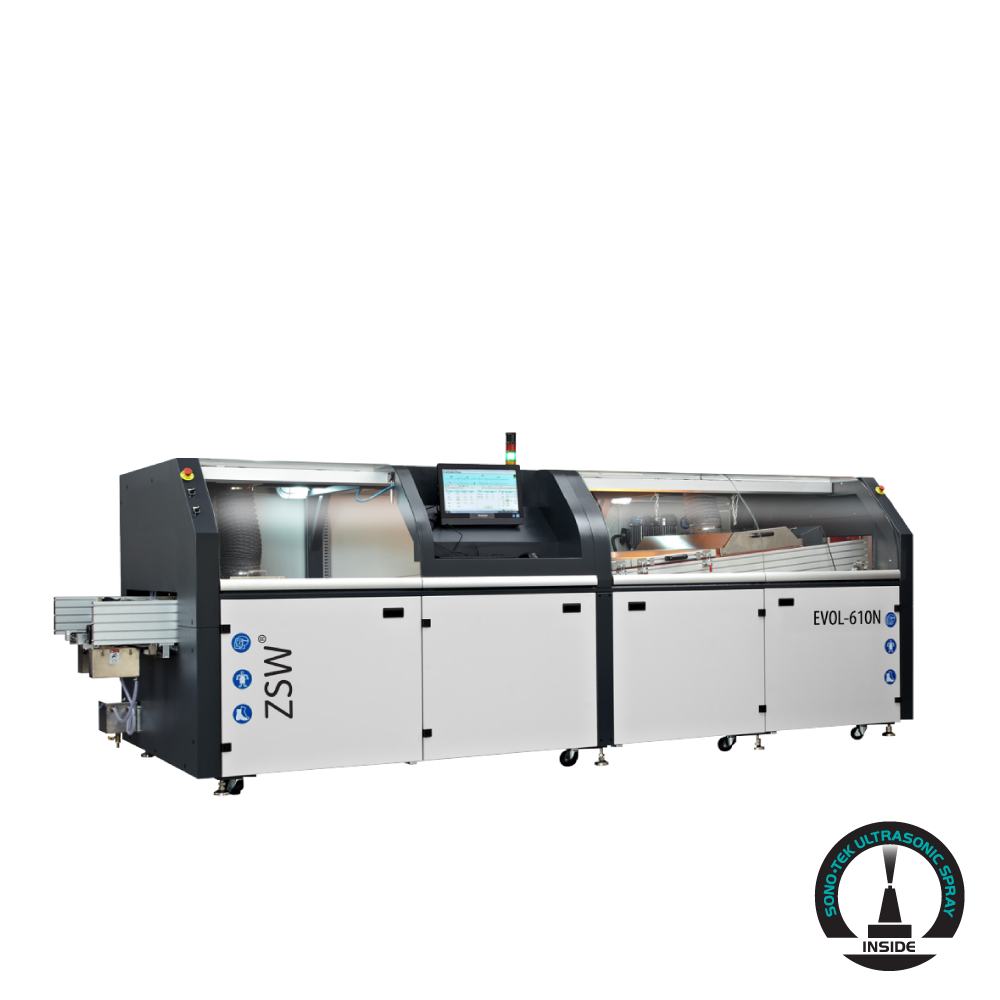

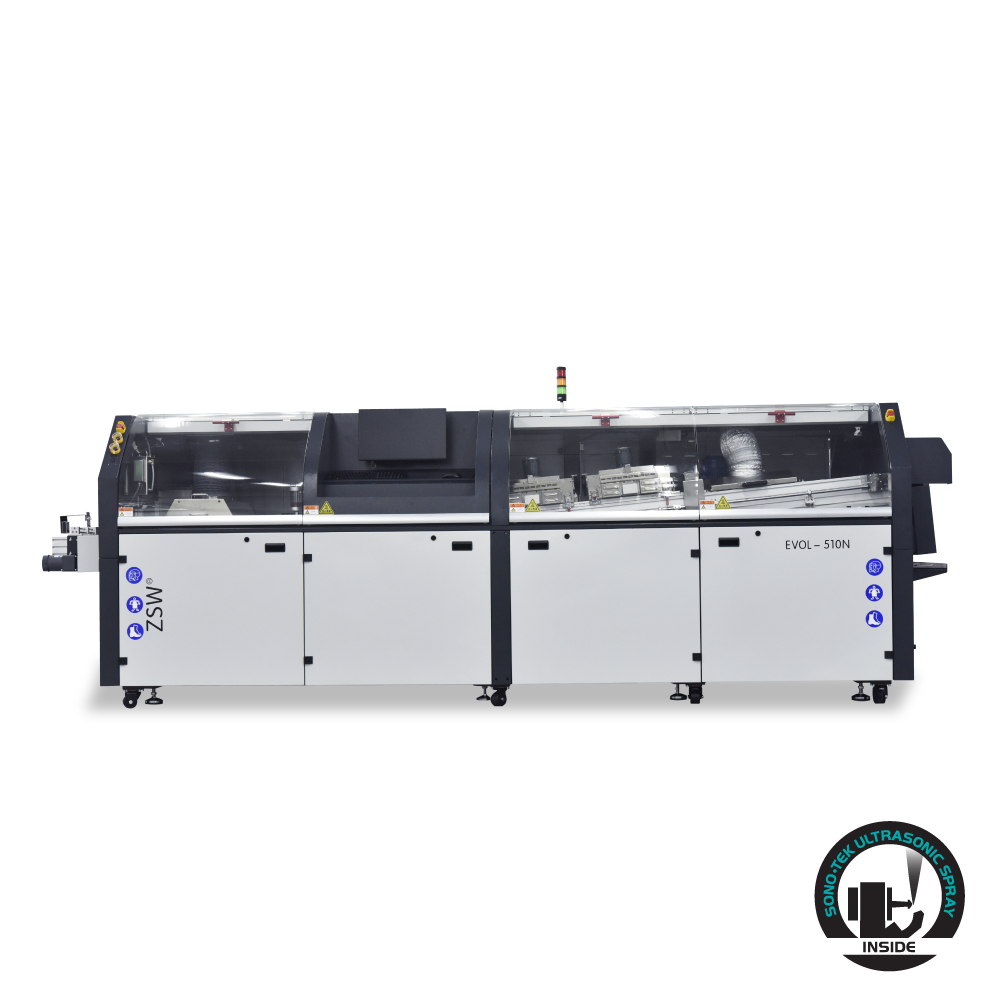

EVOL-350/510/610
- EVOL Series modern wave soldering machine
- Evolution of wave soldering machine concept
- Solved the issues seen in traditional wave soldering machine
- Extended process window
- Independently controlled 3-stage conveyors
- Optimum setting for desirable result
- Automatic recipe switching and model changeover
- Selective spray fluxing
- Upgradable to Sono-Tek selective ultrasonic spray fluxer (Z-Select-W)
- Industry 4.0 ready
- Nitrogen system is also available: EVOL-350N/510N/610N
| Max. board size: L x W | 600 x 350 mm / 600 x 510 mm / 600 x 610 mm |
| Conveyor type | Chain (Fluxing & preheating zone); Finger (Soldering zone) |
| Finger type | Heavy-duty |
| Conveyor height (Entrance) | 780 ± 20 mm (With casters) / 750 ± 20 mm (Without casters) |
| Conveyor height (Exit) | 1,097 ± 20 mm (With casters) / 1,065 ± 20 mm (Without casters) |
| Conveyor Direction | Left to right (Option: Right to left) |
| Number of preheating zone | 3 bottom (Top is optional) |
| Solder pot type | Mechanical pump |
