GKG

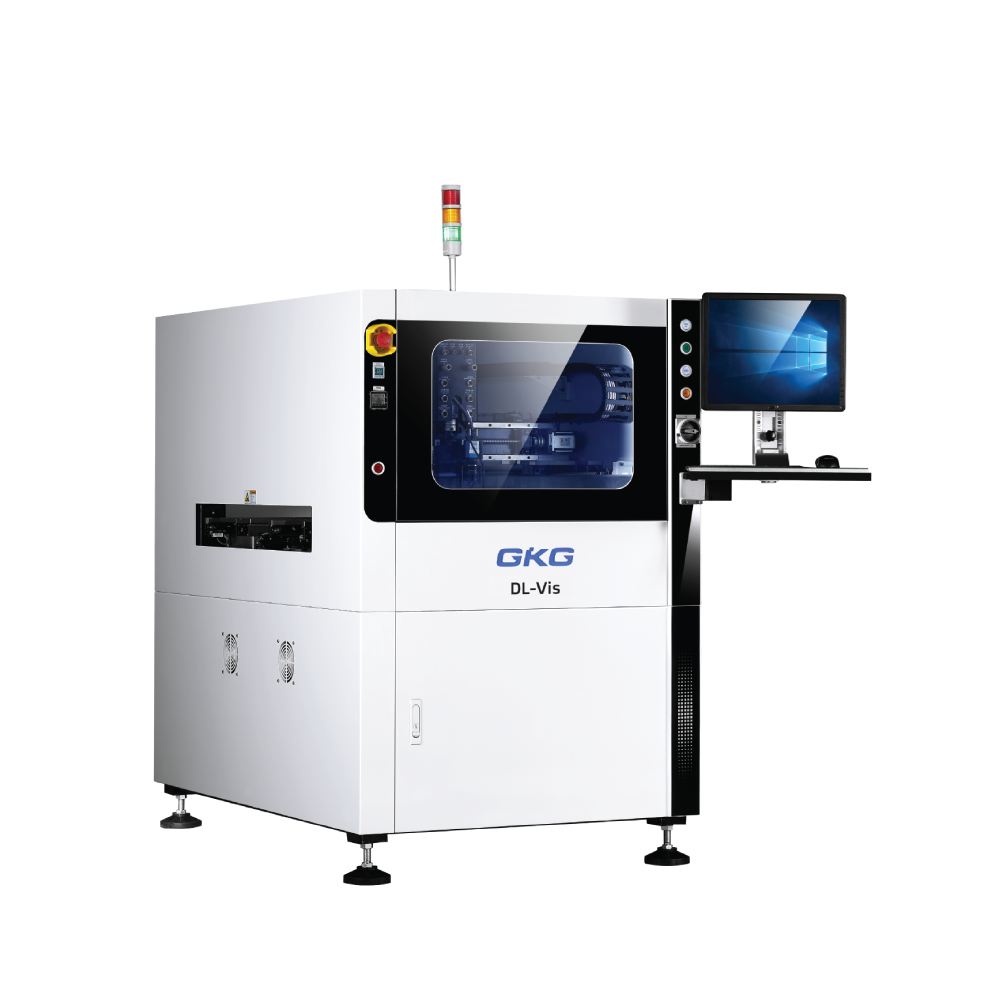

DL-Vis
- Multi-function fluid dispensing machine
- A larger version of D-Vis
- Better motion controlling system with higher Cpk value of 1.33 (4 sigma)
- Precision material weight calibration system
- Auto nozzle wiping device
- IC body recognition function
- Active Correction Technology (ACT) to enhance dispensing result
- In-house valves selection for diverse applications
- Applications: Chip bonding, corner/edge bonding, solder paste adding, underfill, etc.
- Industry 4.0 ready
- Dual lane configuration, dual valve simultaneous dispensing, dual valve individual dispensing, valve rotation & tilt function are all available as options to suit different requirement
| Dimensions (L*W*H) | 982 x 1,500 x 1,500 mm |
| Weight | Approx. 950 kg |
| Positioning accuracy | ±30 um @ 4 sigma (CPK > 1.33) |
| Repeat Position Accuracy | ±15 um @ 4 sigma (CPK > 1.33) |
| Motion driver | Servo motor + Ball screw |
| PCB size (L*W) | (50 x 50) ~ (510 x 650) mm |
| PCB Thickness | 0.8 ~ 6.0 mm |
| Product weight | ≤ 3 kg |
| Dispensing area (L*W) | 510 x 650 mm |
| Board clearance | Top: 50mm; Bottom: 25mm |
| Transportation height | 900 ± 30 mm |
