Unicomp

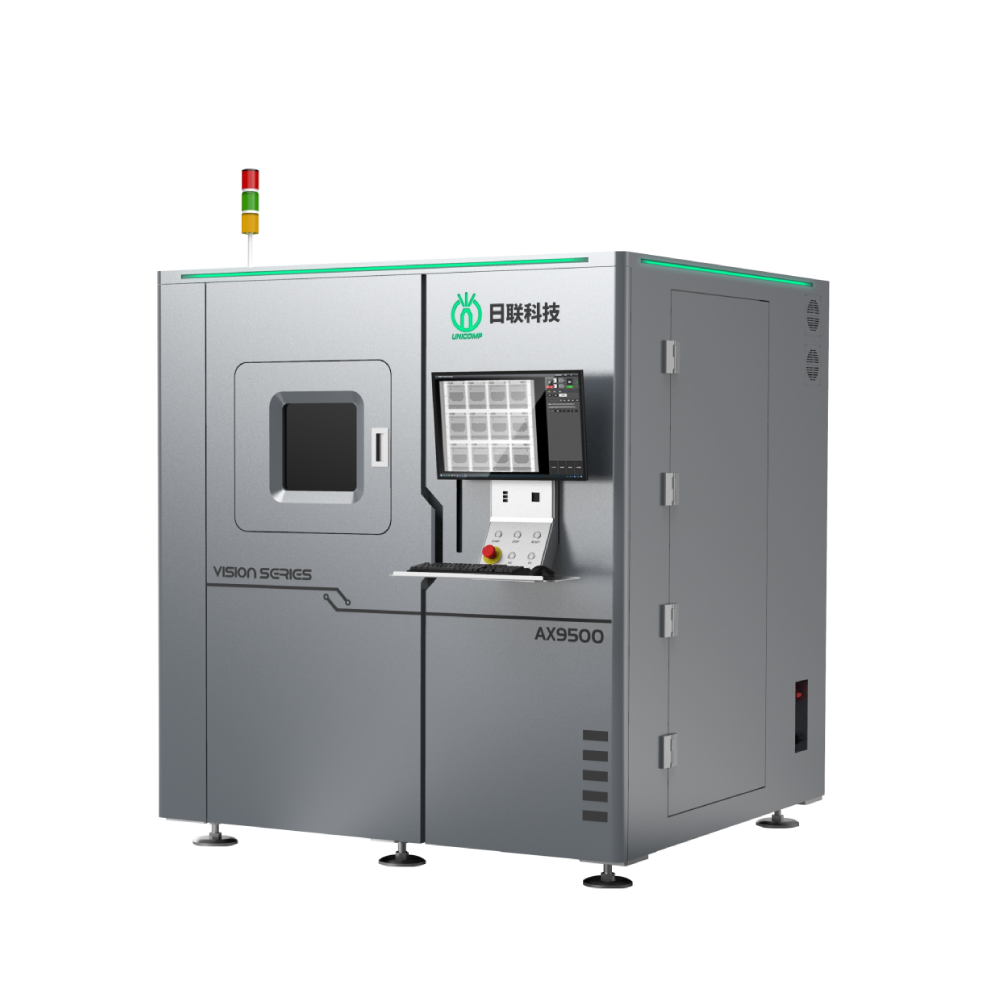

AX9500
- Stand-alone CT X-ray inspection machine
- High speed, high accuracy and repeatability
- With high-resolution flat panel detector (FPD)
- Using 160 kV open X-ray tube
- Producing high-definition real-time imaging
- 6-axis linkage and 360° detection (any angle)
- CNC programming
- Application: BGA, CSP, flip chip, LED chip, SMT soldering analysis, automotive devices, battery industry, aluminium die casting, molding plastics, ceramics, etc.
| Dimensions: L x W x H | 1,700 x 1,660 x 1,900 mm |
| Max. tube power | 64 W |
| Max. target power | 15 W |
| Voltage current | 160 kV / 1000 μA |
| Imaging system resolution | 1 μm (Optional: 0.5 μm) |
