Pemtron

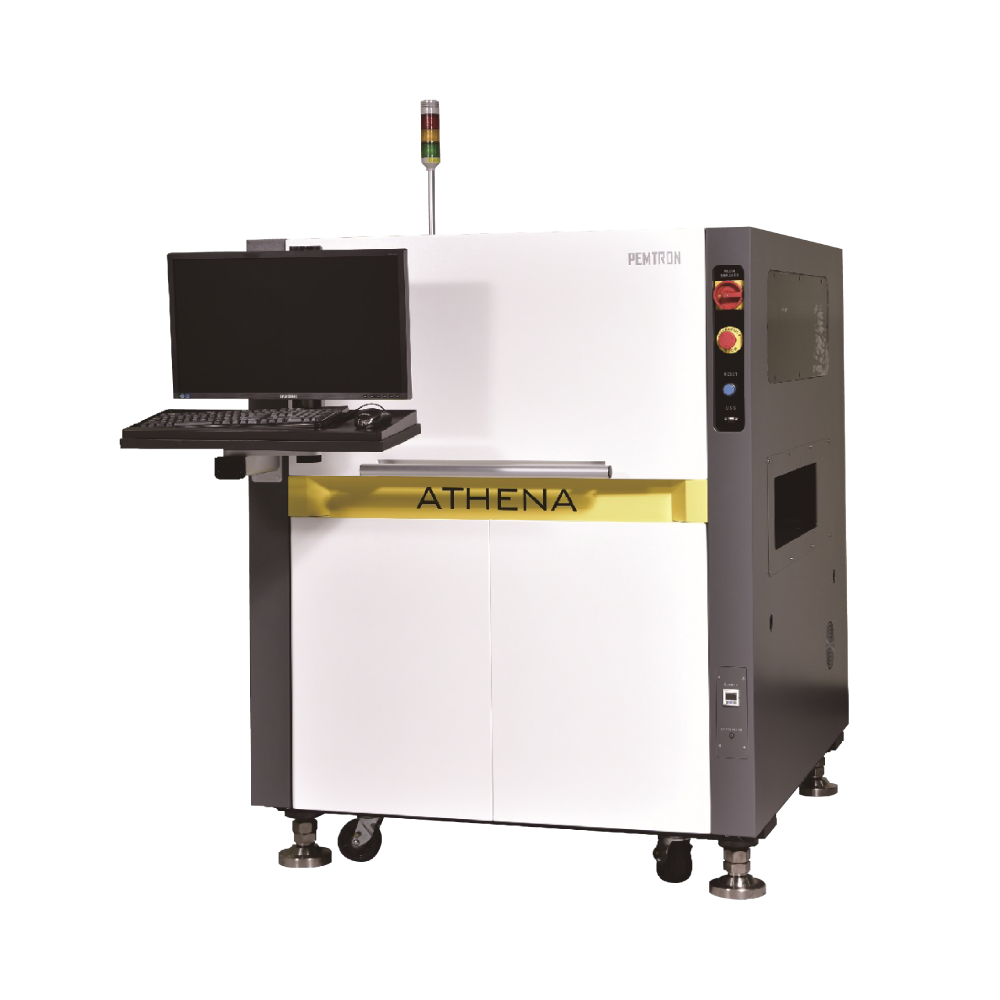

ATHENA
- SMT in-line 3D Automated Optical Inspection (AOI) system
- High accuracy linear motor
- Advanced 8+4 projections for stable and accurate 3D image
- Improved repeatability
- Simultaneous Inspection Algorithm (2D and 3D)
- High speed inspection technology
- High component inspection technology
- Shadow free 3D technology
- 3D solder & height measurement
- Easy programming
- Real-time process management & quality management solutions
- Wide range of models cater for different board size
- Single lane models: ATHENA / ATHENA L / ATHENA XL
- Dual lane models: ATHENA D / ATHENA DL
| Camera | 10 MP |
| X/Y Pixel Resolution | 15 μm |
| Field of View (FOV) | 49 x 45 mm |
| Projection | 8+4 |
| Height Range | 0 - 27 mm |
| Motor Type | XY linear motor |
| Operating System | Windows 10 |
