LD-460W
 |

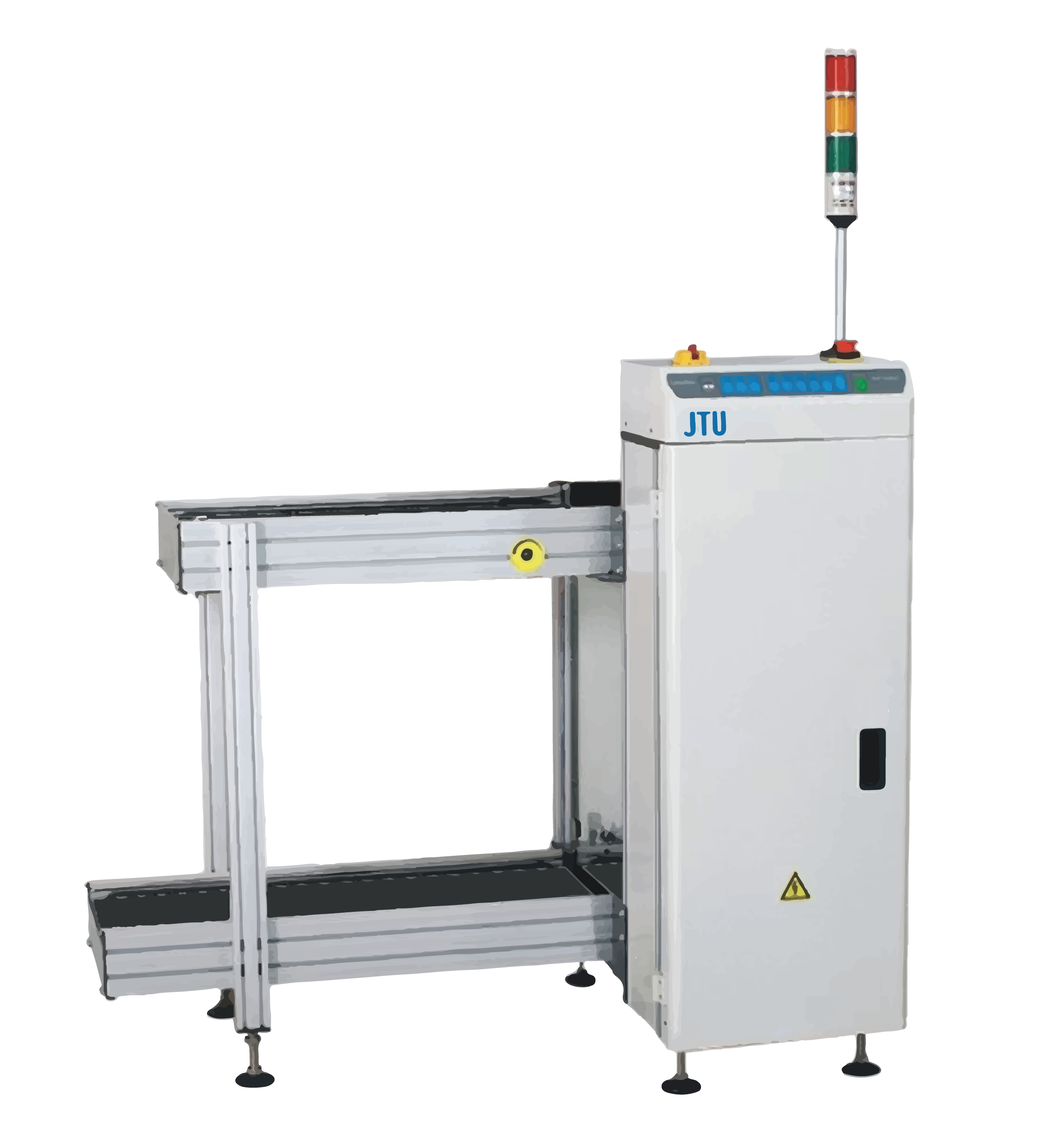

The Automatic Magazine Loader LD-460W is designed to convey the PCB from a magazine rack and push it on a set of conveyor rails and deliver it into the process. |
Specifications
General
|
1785(L) x 890(W) x 1202(H) mm |
|
280 kg |
|
PLC + touch screen |
|
10, 20, 30, 40 mm |
|
Top: 2; bottom: 3 |
|
535(L) x 530(W) x 570(H) mm |
Conveyor system
|
50 x 50 - 460 x 460 mm (L x W) |
|
900 ± 20 mm |
|
Chain |
|
Left to right (Option: Right to left) |
* JTU reserves the right to make any changes concerning design or specification without notice to customers due to continuous improvement.
