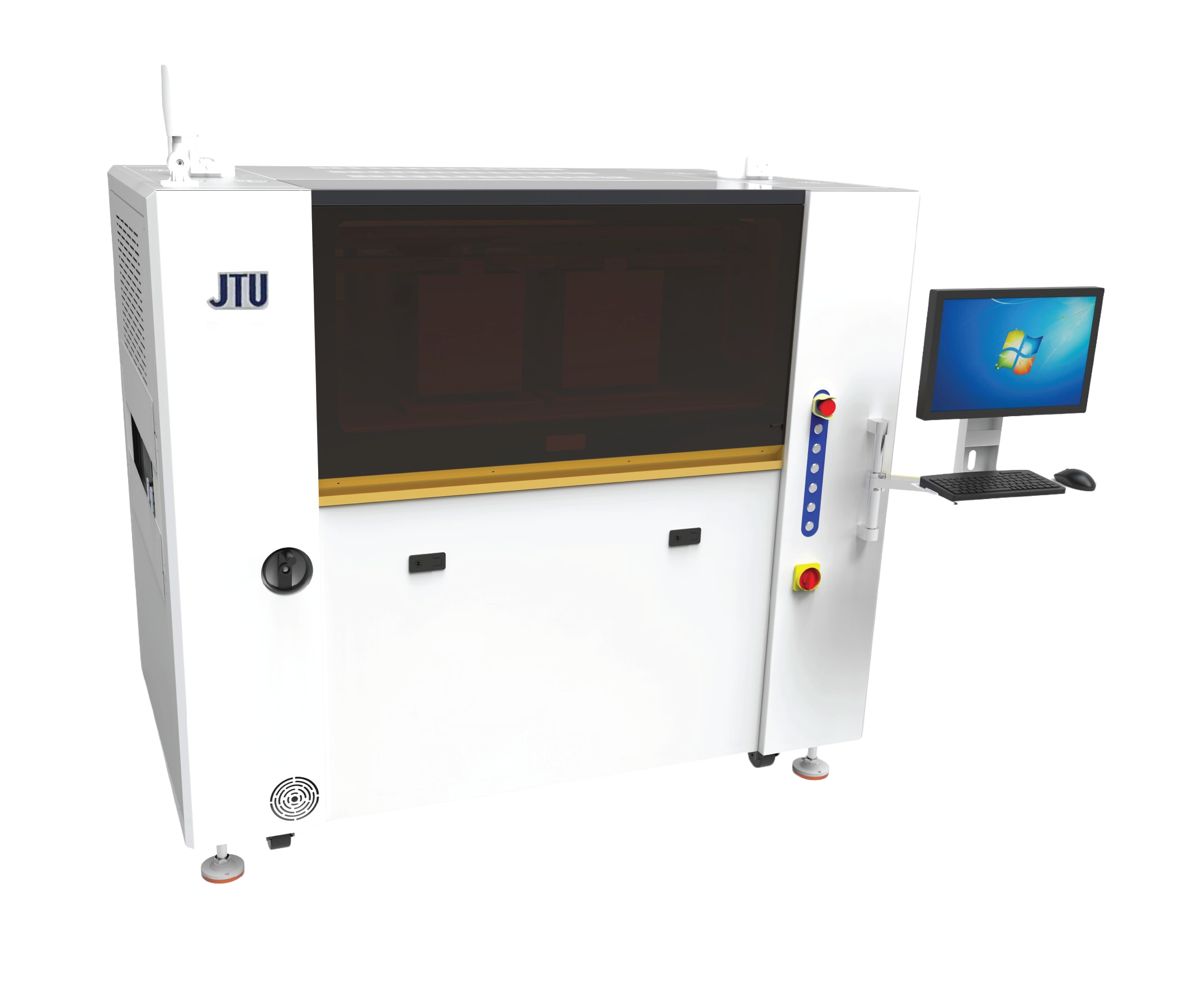

jCURE-2UV+
|
|
jCURE-2UV+ is a curing oven which utilizes ultra-violet (UV) for curing. Upgraded version with unique ventilation system and eco mode greatly optimizes the curing process.
|
Specifications
General
|
1800(L) x 1100(W) x 1850(H) mm |
|
450 kg |
|
PLC + PC interface (Windows 10 OS) |
|
Pulse width modulation (PWM) |
Conveyor system
|
Chain conveyor |
|
900 ± 20 mm |
|
50 - 460 mm (Auto adjustment) |
|
Above: 100 mm; bottom: 100 mm |
|
5 mm |
|
500 - 3000 mm/min |
|
Left to right (Option: Right to left) |
UV lamp system
|
Medium Pressure Mercury Arc |
|
2 (6 kW per lamp. 1 running, 1 standby) |
|
60 - 120 mm (Motorized adjustment) |
|
UVA, UVB, UVC & UVV |
|
6 kW |
|
119 W/cm (For 625 mm length UV lamp) |
|
200(X) x 400(Y) mm (For 625 mm length UV lamp) |
|
Min. 1,000 hours |
* JTU reserves the right to make any changes concerning design or specification without notice to customers due to continuous improvement.
Optional features
Pallet return conveyor (Underneath)
- For OMO concept
- Reduce manpower
- Reduce the number of pallets needed
* JTU reserves the right to make any changes concerning design or specification without notice to customers due to continuous improvement.
