jCURE+
 |

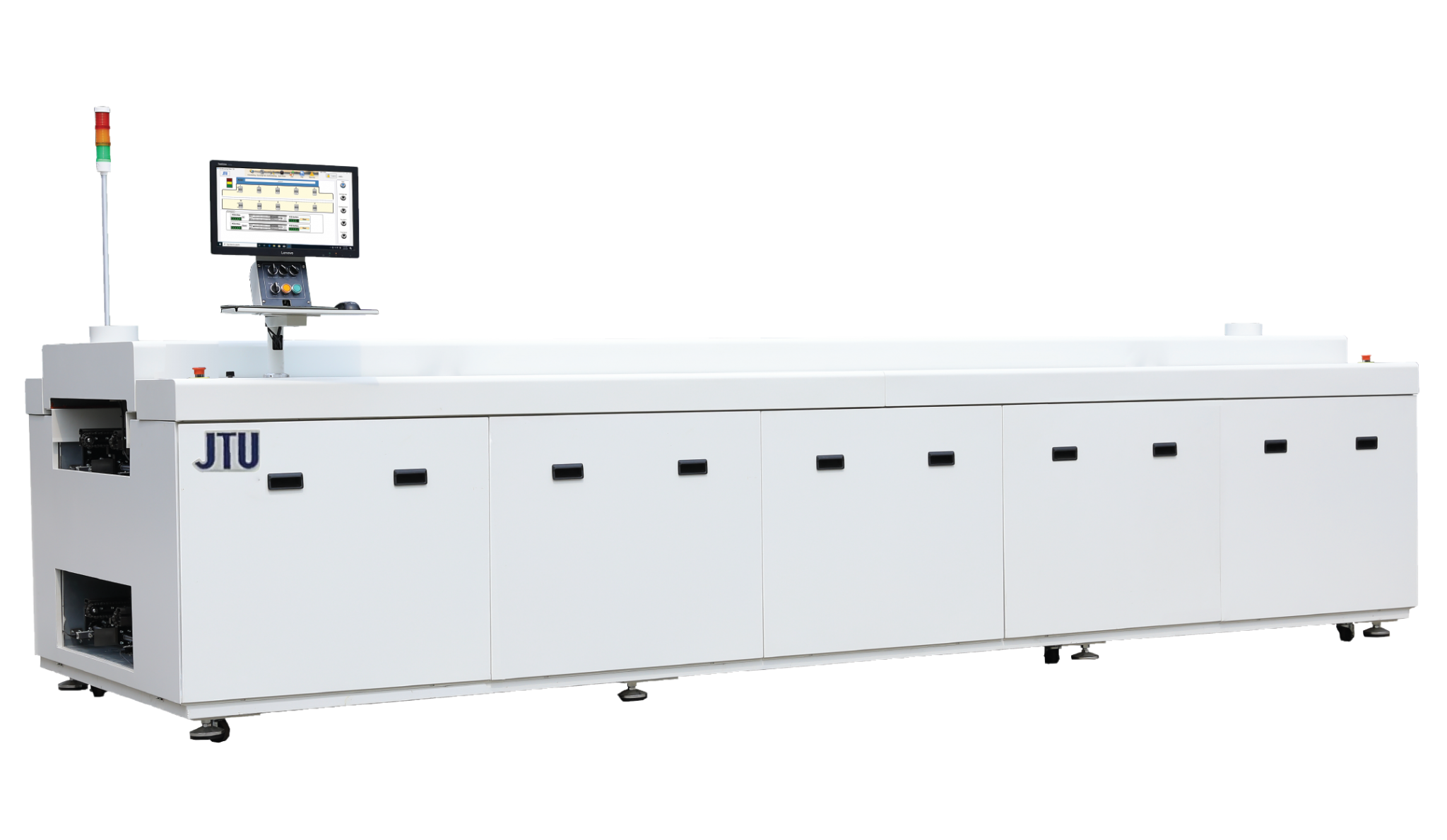

jCURE-3+, jCURE-4+ & jCURE-5+ are curing ovens with different lengths, which use infra-red (IR) for curing. One jCURE+ can achieve the heating length of two ovens (1 jCURE+ = 2 ovens). Save space, save cost! |
- Length
- Width
- Height
- Weight
- No. of heating zones (Top)
- Total power
3000 mm
1560 mm
1250 mm
1350 kg
3
14.6 kW
3940 mm
1560 mm
1250 mm
1550 kg
4
19.4 kW
4940 mm
1560 mm
1250 mm
1750 kg
5
24.2 kW
Standard Specifications
Conveyor system
|
Chain conveyor |
|
900 ± 20 mm |
|
50 - 460 mm (Auto adjustment) |
|
Above: 100 mm; bottom: 100 mm |
|
5 mm |
|
200 - 2000 mm/min |
|
Left to right (Option: Right to left) |
Heating system
|
4.8 kW |
|
25 - 30 mins |
|
Room temp. - 200°C |
|
± 5°C |
* JTU reserves the right to make any changes concerning design or specification without notice to customers due to continuous improvement.
Optional Features
Bottom IR heating zones
- For top & bottom curing at one go
Pallet return conveyor (Underneath)
- For OMO concept
- Reduce manpower
- Reduce the number of pallets needed
Top IR heating zones for underneath pallet return conveyor
- For OMO concept
- Double the curing time OR cure the bottom side
* JTU reserves the right to make any changes concerning design or specification without notice to customers due to continuous improvement.
