HC-XL71C

Home/HC-XL71C

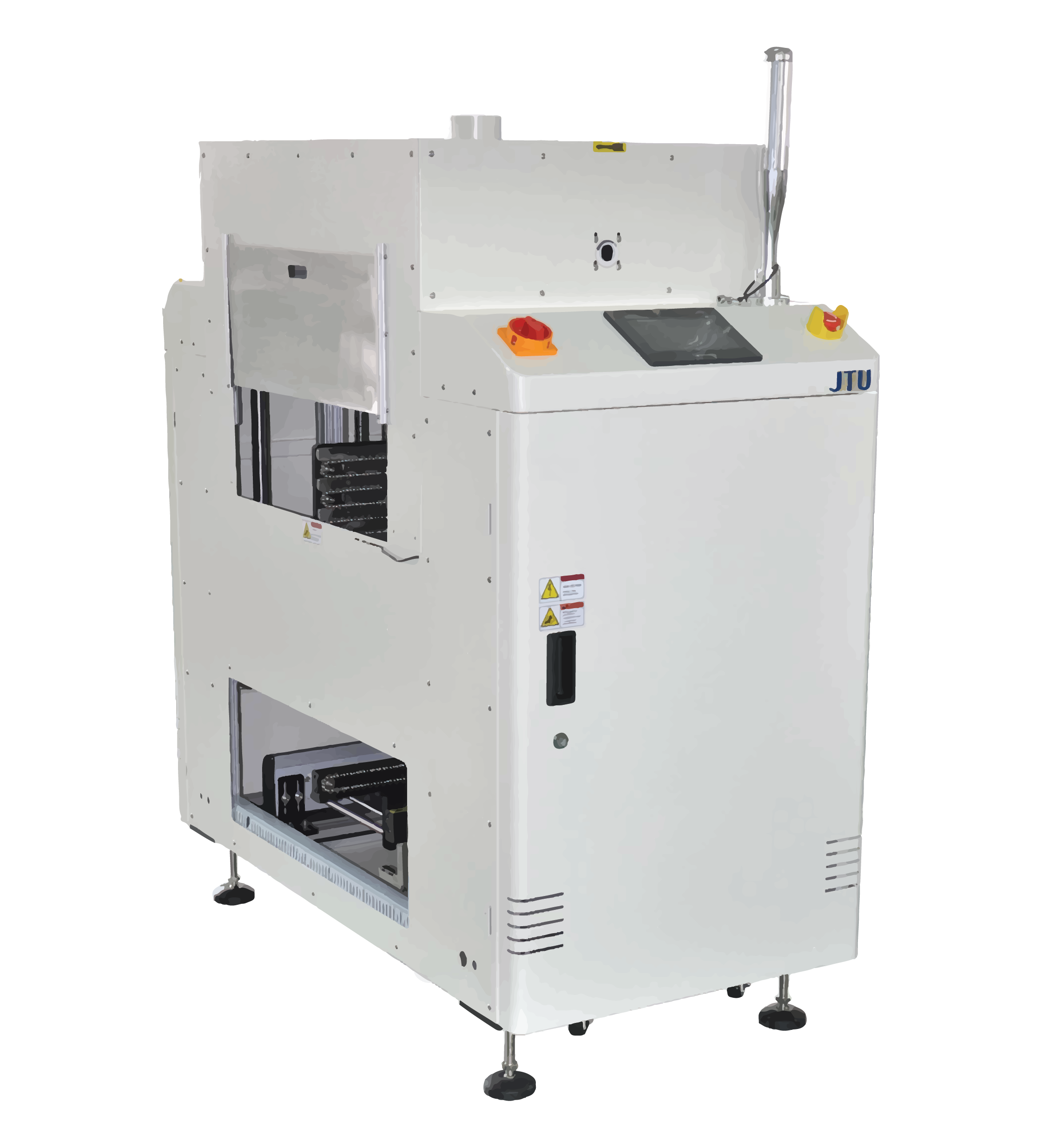

The Automatic Buffer Stocker HC-XL71C is designed to balance the production line and/or allow waiting time by storing the PCB/pallet.

Specifications

General
  • Dimensions
 654(L) x 1300(W) x 1600(H) mm
  • Weight
 290 kg
  • Control
 PLC + touch screen
  • Pitch selection
 Max. 50 mm pitch indexing
  • No. of storage rack
 Max. 6 pcs
Conveyor system
  • Pallet/PCB size
 50 x 50 - 460 x 460 mm (L x W)
  • Pallet/PCB transfer height
 900 ± 20 mm
  • Conveyor type
 Chain
  • Conveyor clearance
 Above: max. 50 mm (Depends on indexing pitch); bottom: max. 80 mm
  • Conveyor direction
 Left to right (Option: Right to left)

* JTU reserves the right to make any changes concerning design or specification without notice to customers due to continuous improvement.

Optional Features

Pallet return conveyor (Underneath)
  • For OMO concept
  • Reduce manpower
  • Reduce the number of pallets needed

* JTU reserves the right to make any changes concerning design or specification without notice to customers due to continuous improvement.
