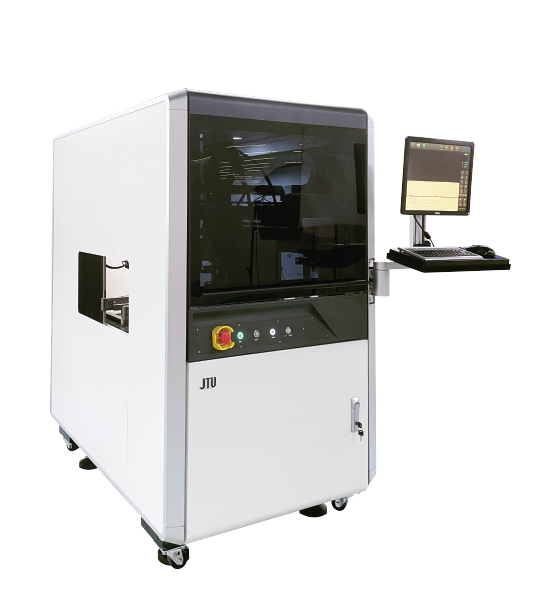

C7
 |
C7 has a 4-valve structure (2 by 2) which provides productivity and flexibility at the same time. It can coat 2 PCBs simultaneously.
|
SPECIFICATIONS
* JTU reserves the right to make any changes concerning design or specification without notice to customers due to continuous improvement.
- Dimensions (L*W*H)
- Weight
- Head structure
- No. axis movement
- Max. valves quantity
- Adjustable nozzle pitch
- Tilt angle
- Standard valves
- Optional valves
956 x 1,512 x 1,640 mm
Approx. 700 kg
4 Valves
3 Axis (X, Y, Z)
4 Valves
60-230mm (Manual adjustment)
All valves tilt 35° to left
2 x CS-05, 2 x PD-01
FS-30
