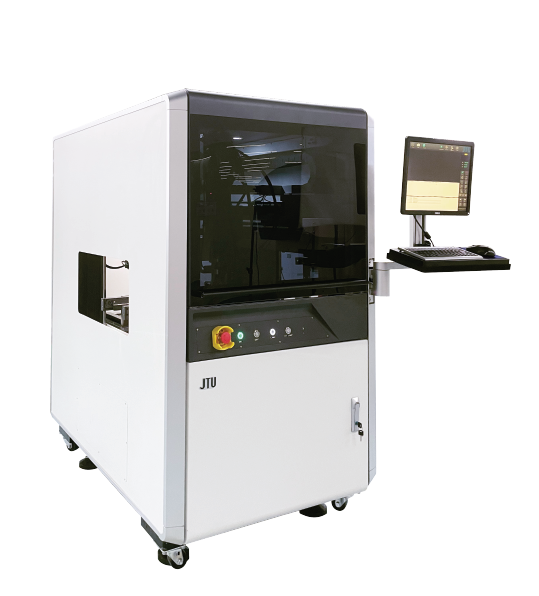

C3 - JTU

Standard configuration: Two-valve independent working Optional configurations: Either

Two-valve simultaneous working of 2 PCBs with manual/automatic pitch adjustment (For productivity)

Two-valve independent working with 4-way tilt of 35° on the left valve (For flexibility)

SPECIFICATIONS * JTU reserves the right to make any changes concerning design or specification without notice to customers due to continuous improvement.

Dimensions: L x W x H
Weight
Head structure
No. of axis movement
Max. no. of valves
Valves included as standard
Valves applicable as option

956 x 1,512 x 1,640 mm

Approx. 700 kg

2 valves

3 (X, Y, Z)

1 x CS-05, 1 x PD-01

FS-30, V-54HP
