ADJ-460UV

Home/ADJ-460UV

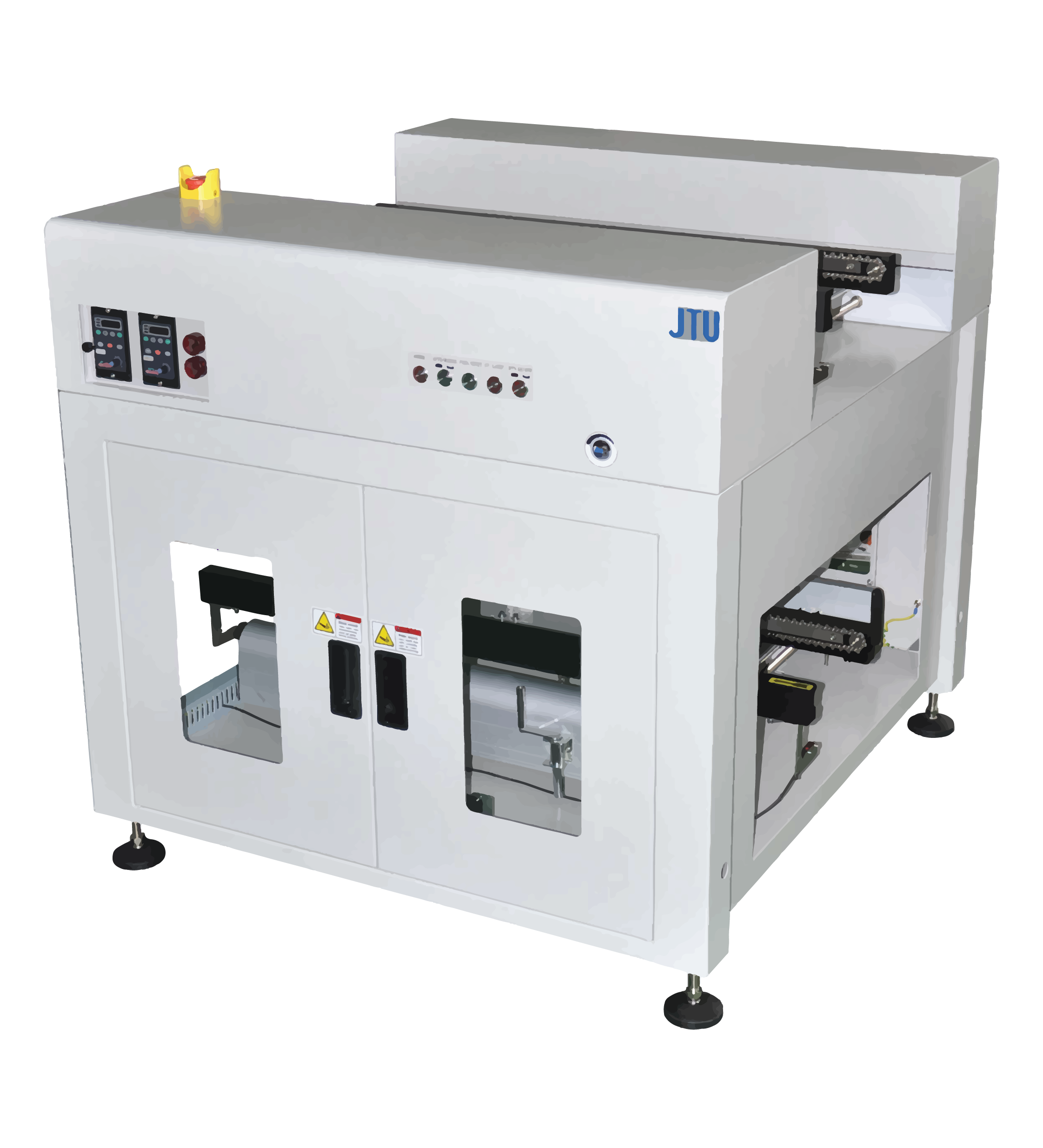

Open Type

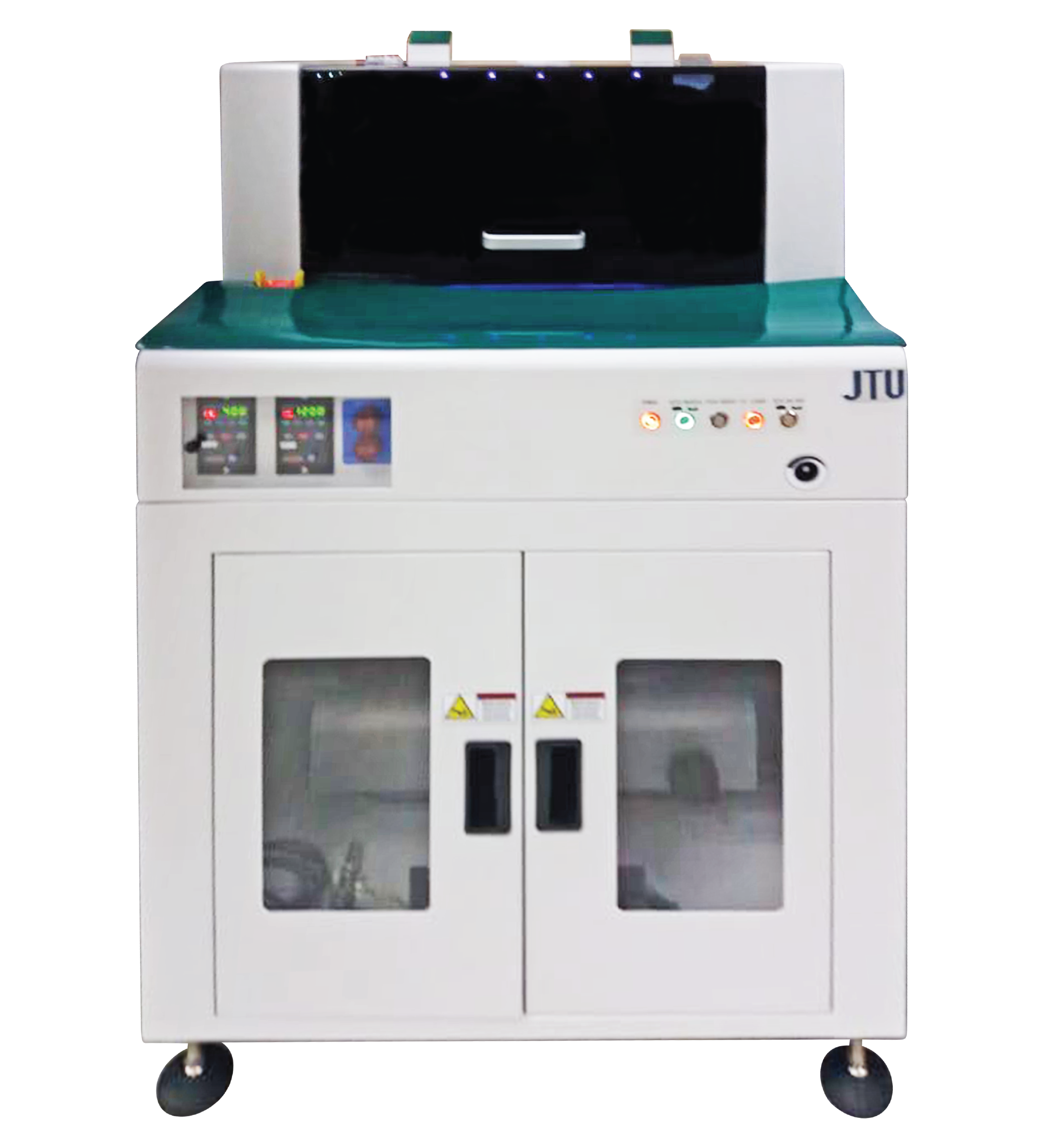

Enclosed Type A

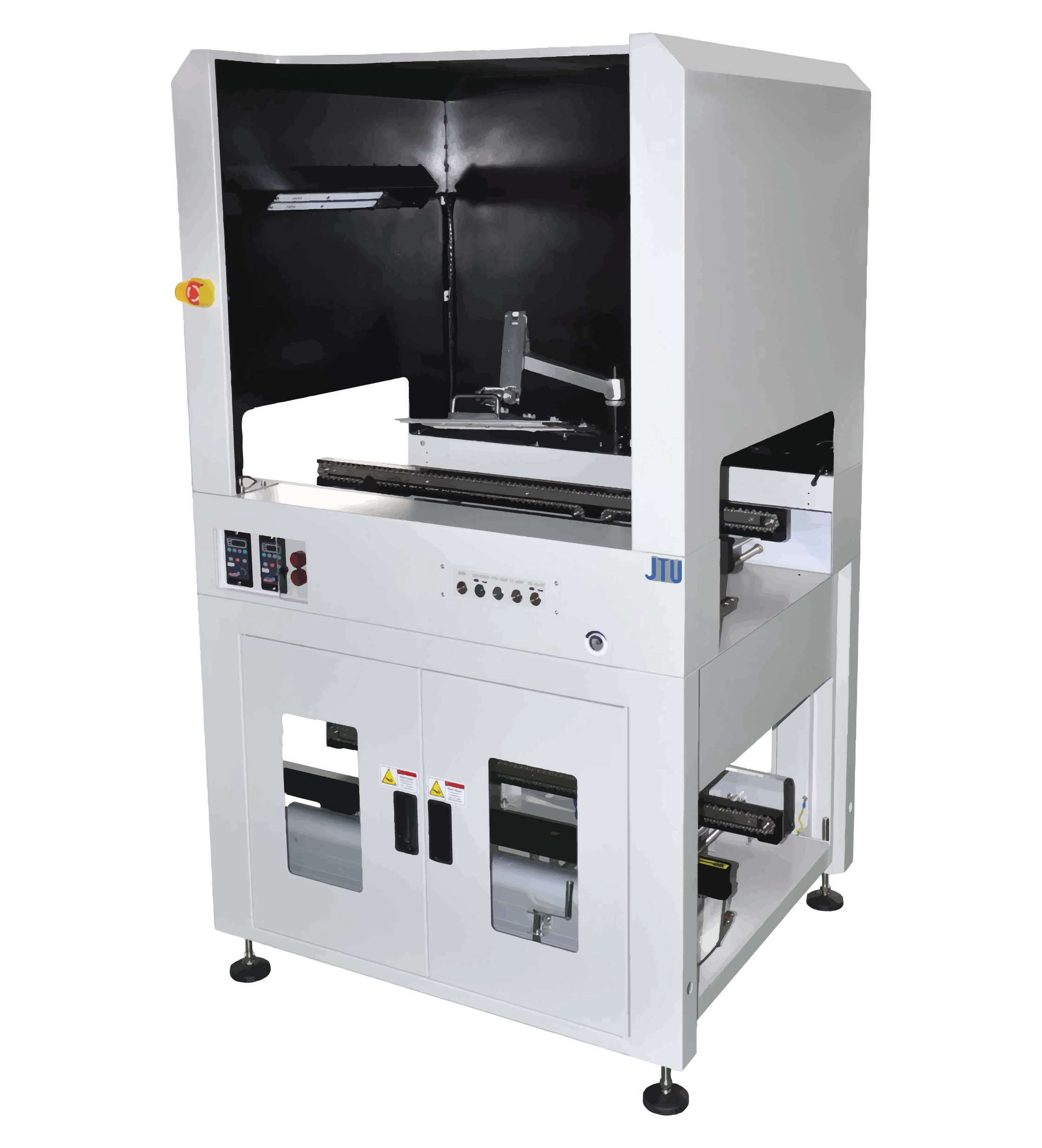

Enclosed Type B

The Visual Inspection Conveyor ADJ-460UV is a link conveyor equipped with LED UV lamps for visual inspection by the operators.

Specifications

General
  • Dimensions
 Open type: 1000(L) x 1074(W) x 963(H) mm Enclosed type A: 800(L) x 944(W) x 1232(H) mm
  • Weight
 120 kg
  • Light source
 LED UV lamps
Conveyor system
  • Pallet/PCB width
 50 - 460 mm
  • Pallet/PCB transfer height
 900 ± 20 mm
  • No. of pallet/PCB stop position
 1
  • Conveyor type
 Chain
  • Conveyor clearance
 Above: 100 mm; bottom: 100 mm
  • Conveyor speed
 0 - 4,500 mm/min
  • Conveyor direction
 Left to right (Option: Right to left)
  • Conveyor width adjustment
 Manual
  • PCB edge clearance
 5 mm

* JTU reserves the right to make any changes concerning design or specification without notice to customers due to continuous improvement.

Optional Features

Enclosed Type B
  • Cater for operator's visual inspection in standing position
Pallet return conveyor (Underneath)
  • For OMO concept
  • Reduce manpower
  • Reduce the number of pallets needed

* JTU reserves the right to make any changes concerning design or specification without notice to customers due to continuous improvement.
