ADJ-460 - JTU

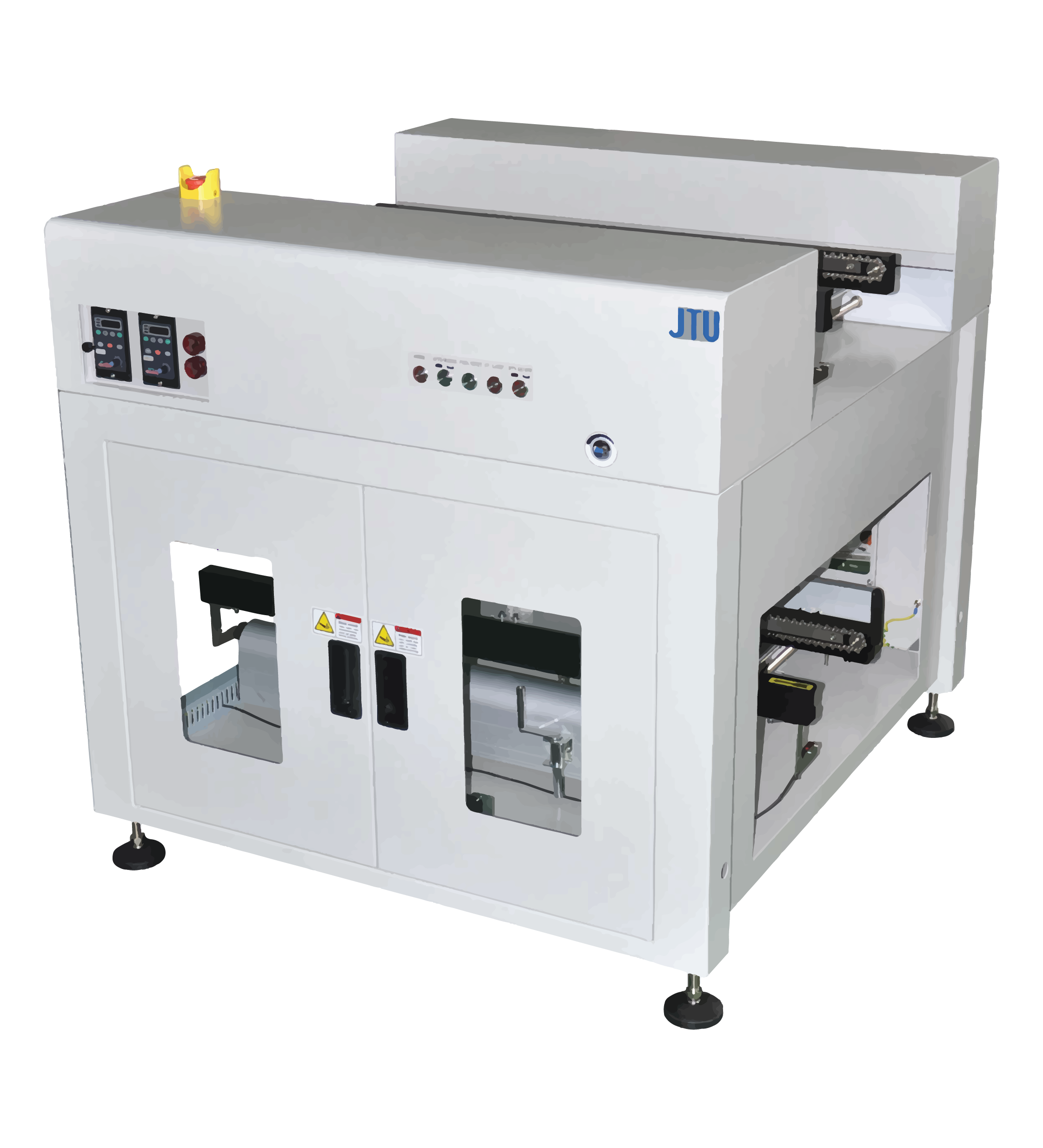

The Automatic Link Conveyor ADJ-460 is an intelligent carry conveyor that can be used as a linear buffer, and/or to stage PCB/pallet to a downstream process.

Specifications

General

Dimensions	800(L) x 1074(W) x 909(H) mm
Weight	110 kg

Conveyor system

Pallet/PCB width	50 - 460 mm
Pallet/PCB transfer height	900 ± 20 mm
No. of pallet/PCB stop position	1
Conveyor type	Chain
Conveyor clearance	Above: 100 mm; bottom: 100 mm
Conveyor speed	0 - 4,500 mm/min
Conveyor direction	Left to right (Option: Right to left)
Conveyor width adjustment	Manual
PCB edge clearance	5 mm

* JTU reserves the right to make any changes concerning design or specification without notice to customers due to continuous improvement.

Optional Features

Smaller size (500 mm length)

For space saving
No change in price

Pallet return conveyor (Underneath)

For OMO concept
Reduce manpower
Reduce the number of pallets needed

* JTU reserves the right to make any changes concerning design or specification without notice to customers due to continuous improvement.
