3S Reels Management Solution
3S Reels management solution incoporates reels safeguard, storage and supply systems to create smart, systematic and secure management for SMD reels in production floor.

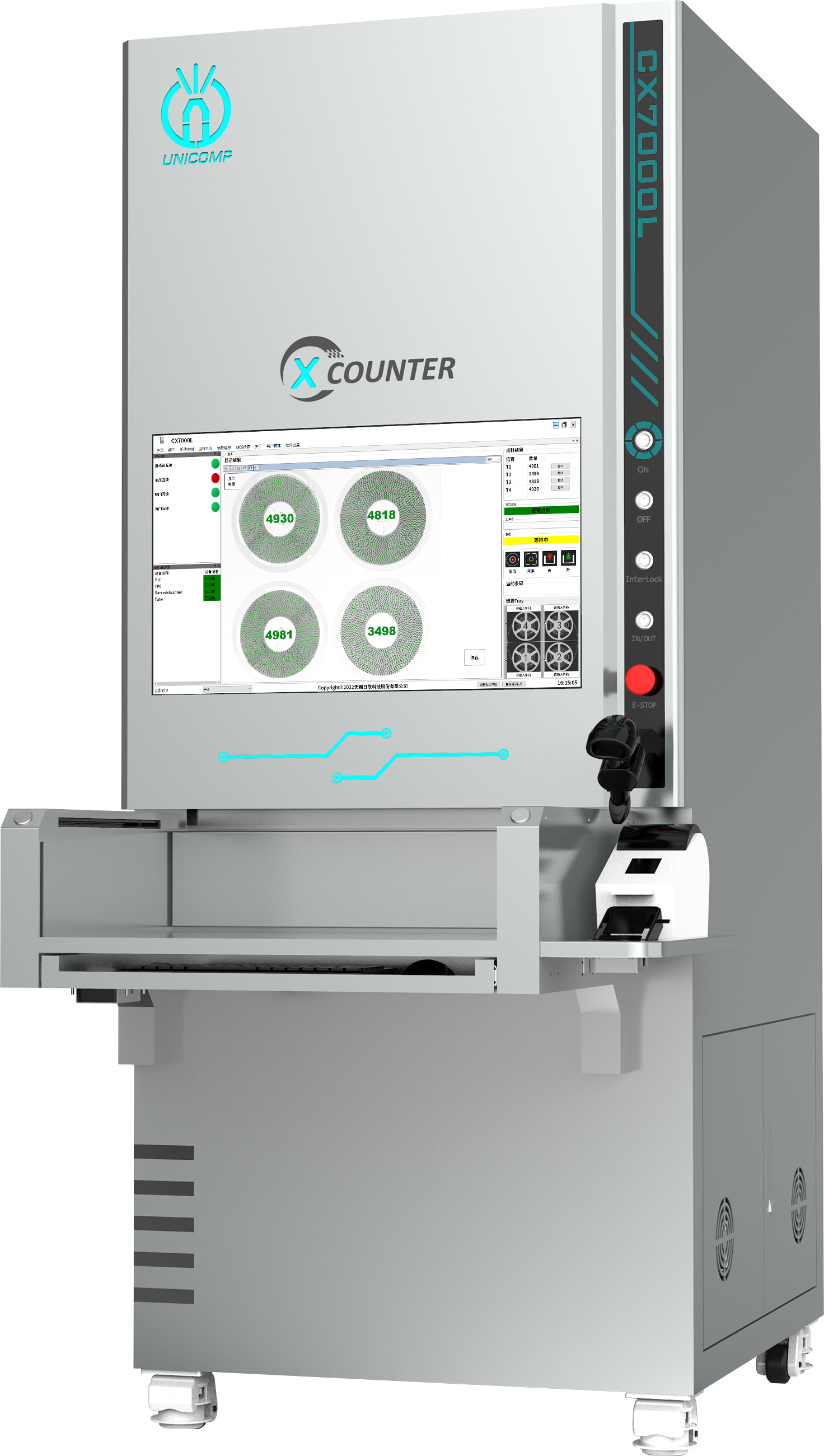

- Unicomp X-ray SMD Chip Counting System CX7000L
- Unicomp X-ray Counterfeit Inspection System CX3000
- ZKU Z8 Series Rotary Smart Storage Tower
- JTU ATS Series Automatic Tape Splicer
- Canaan Automatic Reels Splitting Machine JN2400C
The solution aims to keep a systematic reels storage system, ensures inventory data accuracy and delivers the highest efficiency to your SMT production line.
REELS SAFEGUARD

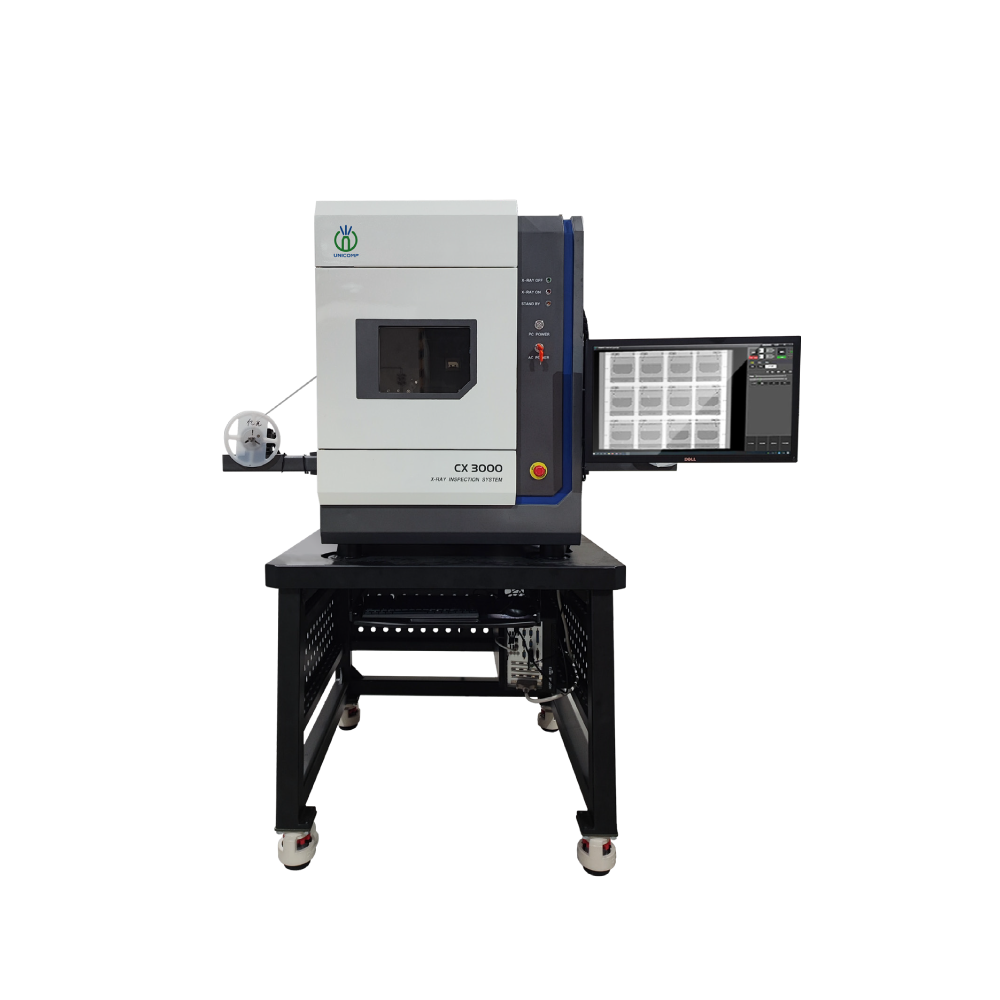

CX3000 (R2R)
X-ray Counterfeit Inspection System
REELS STORAGE
Z8-6180
Rotary Smart Storage Tower

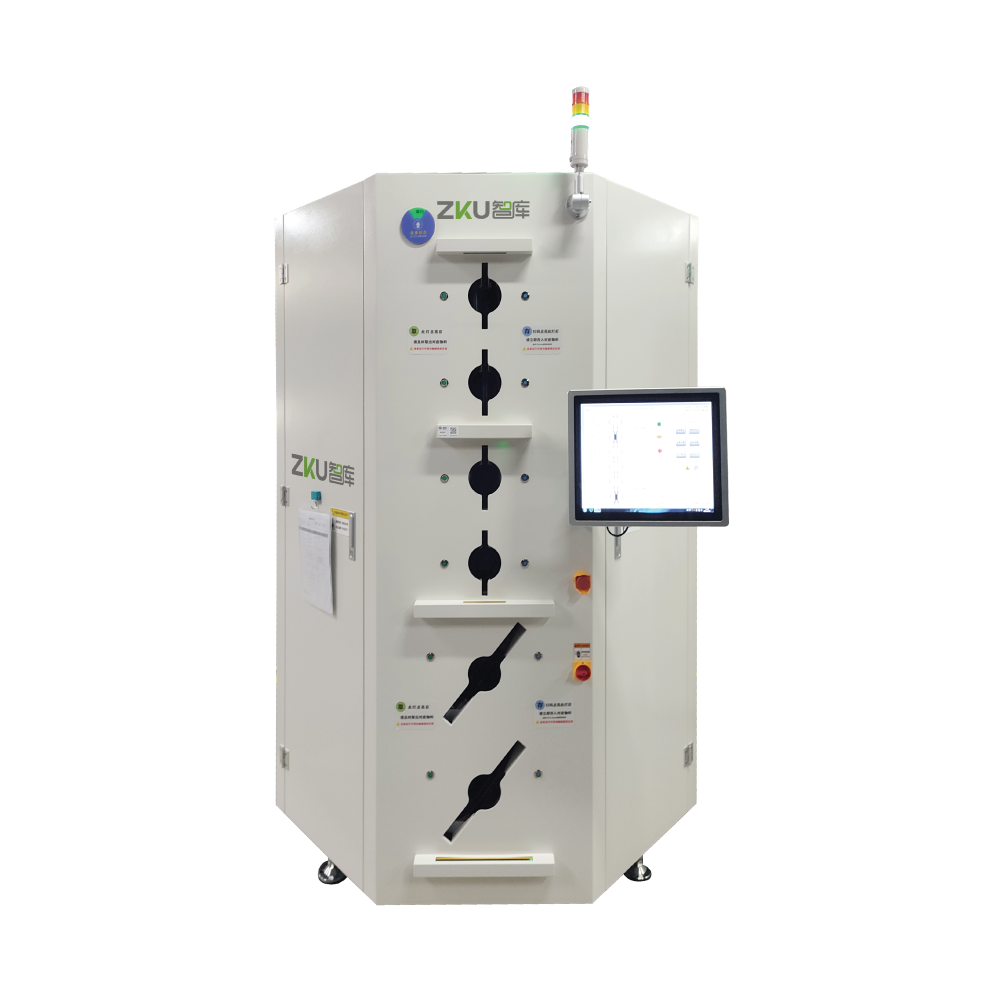

Z8-840m
Rotary Smart Storage Tower
Z8-6120
- Dimension: L1,070*W1,135*H1,900 mm
- Weight: 850 kg
- Reels storage specification (Diameter; Width): 7" 8mm
- Storage capacity: 720 Reels
- Tower layers: 6
- Avg. storage / retrieval speed: 1~3 sec/reel
Z8-6180
- Dimension: L1,618*W1,553*H2,150 mm
- Weight: 1,021 kg
- Reels storage specification (Diameter; Width): 7" 8mm
- Storage capacity: 1,080 Reels
- Tower layers: 6
- Avg. storage / retrieval speed: 1~3 sec/reel
Z8-8180
- Dimension: L1,618*W1,553*H2,260 mm
- Weight: 1,085 kg
- Reels storage specification (Diameter; Width): 7" 8mm
- Storage capacity: 1,440 Reels
- Tower layers: 8
- Avg. storage / retrieval speed: 1~3 sec/reel
Z8-8120
- Dimension: L1,618*W1,553*H2,260 mm
- Weight: 1,224 kg
- Reels storage specification (Diameter; Width): 7" 12-16mm
- Storage capacity: 960 Reels
- Tower layers: 8
- Avg. storage / retrieval speed: 1~3 sec/reel
Z8-5060
- Dimension: L1,618*W1,553*H2,260 mm
- Weight: 1,120 kg
- Reels storage specification (Diameter; Width): 13" 12-32mm
- Storage capacity: 300 Reels
- Tower layers: 5
- Avg. storage / retrieval speed: 2~5 sec/reel
Z8-4060
- Dimension: L1,752*W1,752*H2,115 mm
- Weight: 1,275 kg
- Reels storage specification (Diameter; Width): 15" 12-32mm
- Storage capacity: 240 Reels
- Tower layers: 4
- Avg. storage / retrieval speed: 2~5 sec/reel
Z8-840m
- Dimension: L1,618*W1,553*H2,150 mm
- Weight: 1,156 kg
- Reels storage specification (Diameter; Width): 7" 8mm & 13" 12-32mm
- Storage capacity: 840 Reels
- Tower layers: 6
- Avg. storage / retrieval speed: 2~5 sec/reel
REELS SUPPLY
ATS Series
Automatic Tape Splicer
JN2400C
Automatic Reels Splitting Machine
