3S REELS MANAGEMENT SOLUTION


Safeguard  ---  Storage   ---    Supply

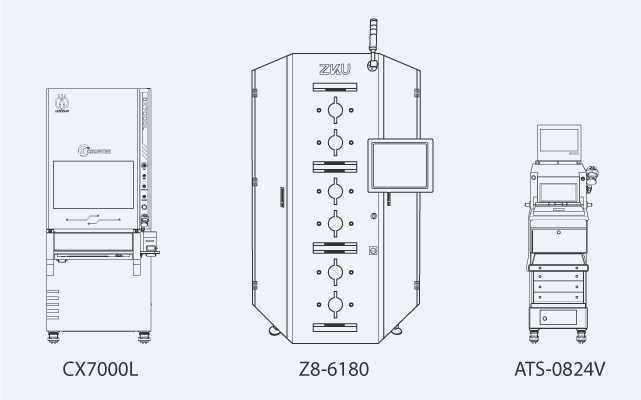

3S Reels management solution incoporates reels safeguard, storage and supply systems to create smart, systematic and secure management for SMD reels in production floor.



  • Unicomp X-ray SMD Chip Counting System CX7000L
  • Unicomp X-ray Counterfeit Inspection System CX3000
  • ZKU Z8 Series Rotary Smart Storage Tower
  • JTU ATS Series Automatic Tape Splicer
  • Canaan Automatic Reels Splitting Machine JN2400C



The solution aims to keep a systematic reels storage system, ensures inventory data accuracy and delivers the highest efficiency to your SMT production line.

3S Logo

REELS SAFEGUARD

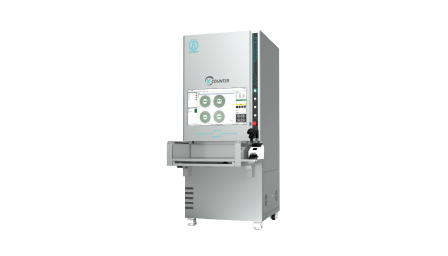

CX7000L

X-Ray SMD Chip Counting System

Flash Component Counting within Seconds

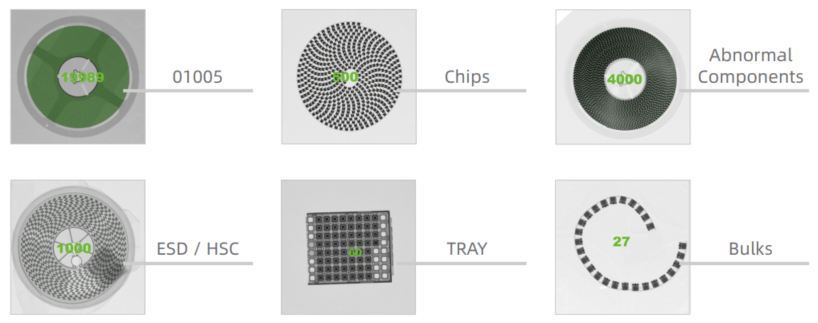

Identify components in different forms and counts within <10sec per reel.

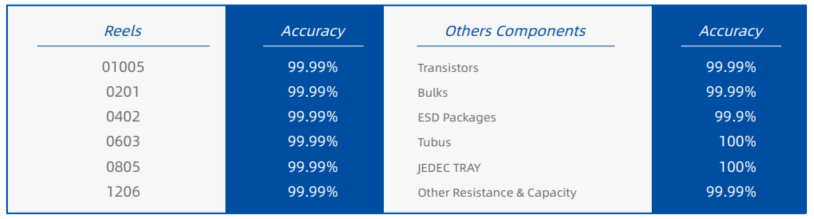

High Accuracy Anti-Interference Counting >99.99%
Inspection accuracy up to 99.99% to minimize counting errors.

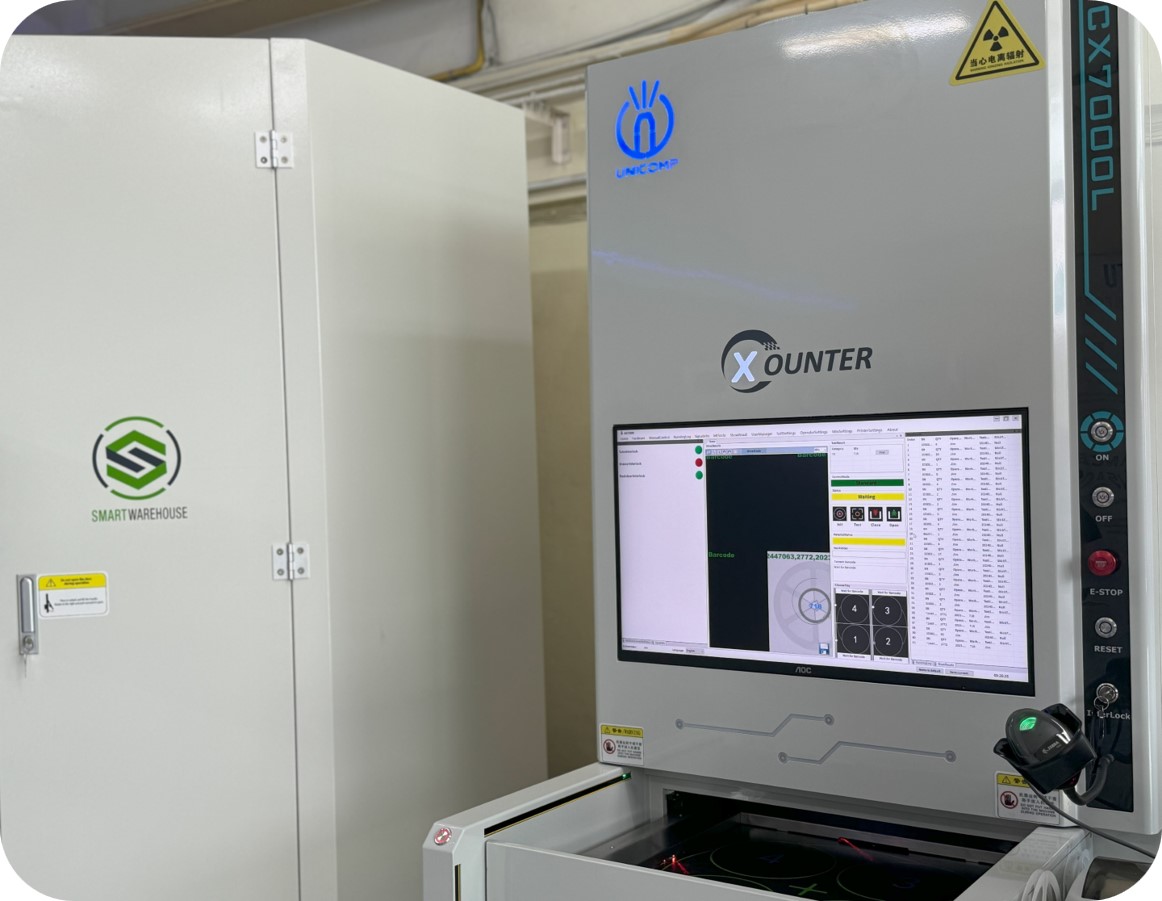

Data Sharing by Pairing Up with Z8 Series
Enable sharing of reels components quantity between machines.

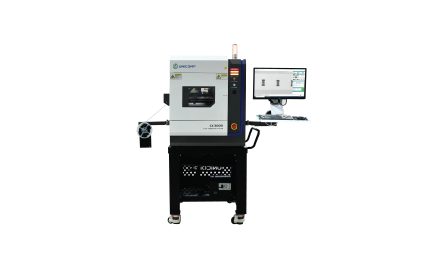

CX3000 (R2R)

Tabletop X-Ray Counterfeit Inspection System

Non-Destructive Reels Components Inspection

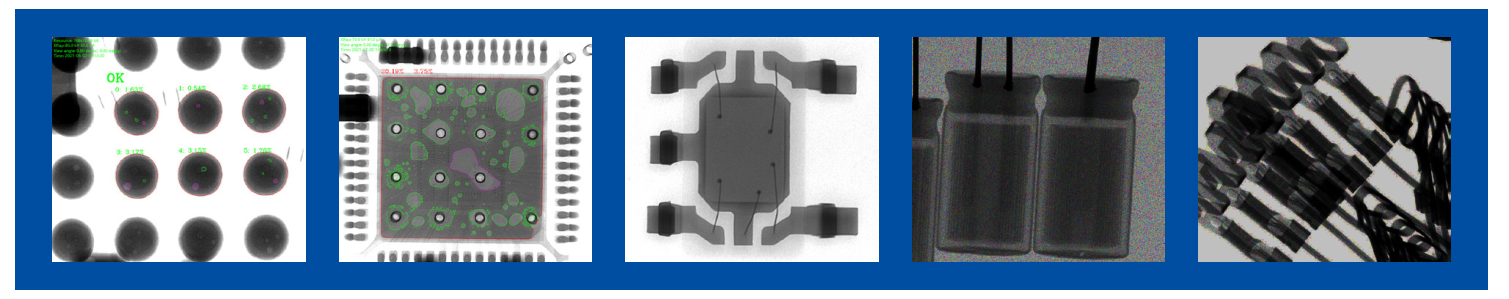

Analyze and compare internal structures (wires bond/lead/damage/etc.) with original components.
Multi-Function & Wide Application Fields

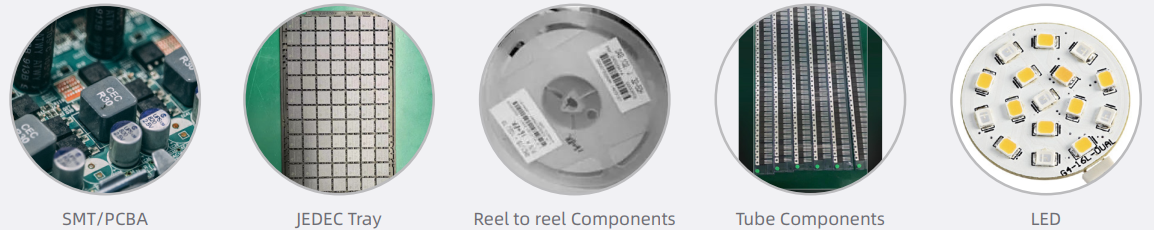

Allow X-ray inspection for reels and other components in different packagings.
Super Compact & Portable with Wheels
Move easily between different SMT lines or warehouse for various usage.

REELS STORAGE

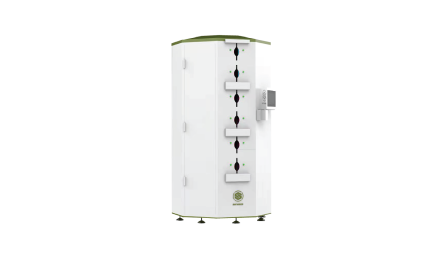

Z8 Series

Rotary Smart Storage Tower

World's First Rotary Tower Design
Optimal balance between large storage capacity and high operational efficiency.

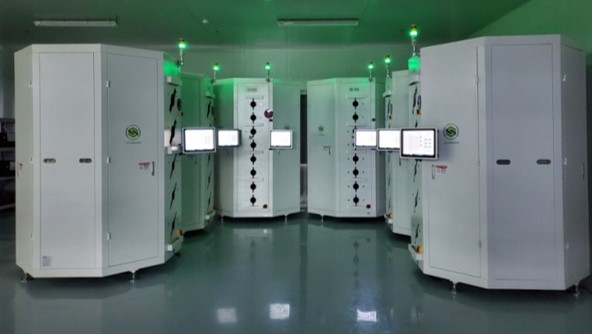

Flexible combination layout in encircle / materials wall between production line and warehouse.

Fastest Reels Retrieval Speed (x2.4 Times)

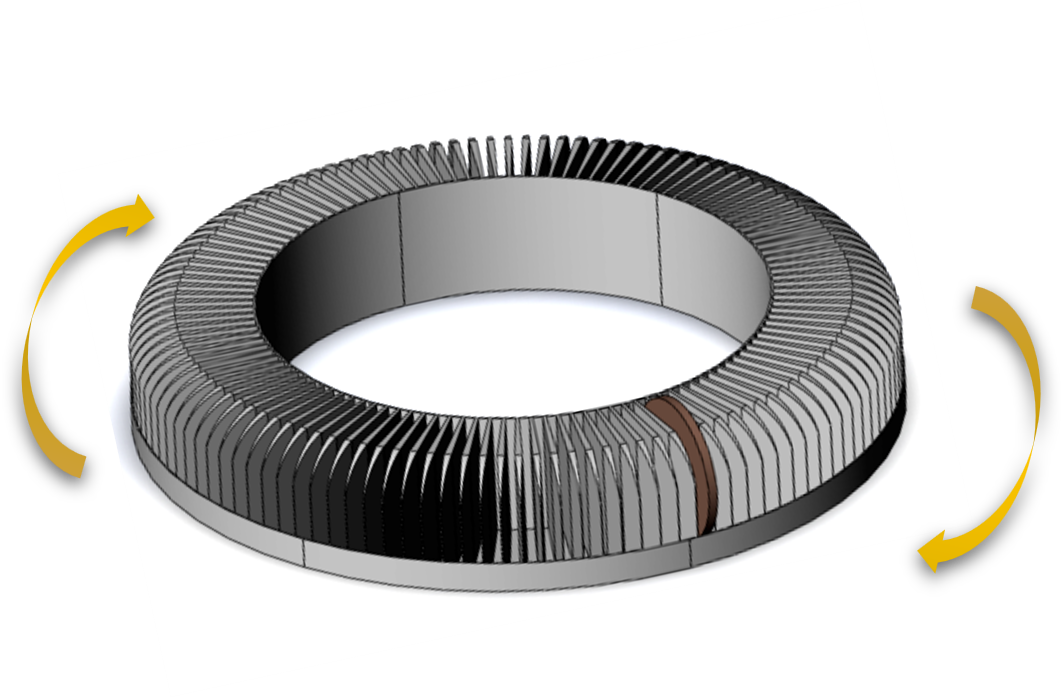

Bidirectional 360° rotation allows the FASTEST reels retrieval speed within 3-5 seconds.
One Fits For All Storage Tower
Different models to cater wide range of reels sizes from 7" to 15".

REELS SUPPLY

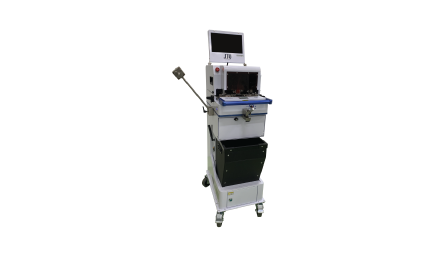

ATS Series

Automatic Tape Splicer

Smart Automation with Patented Vision Algorithm
Achieve high first-pass yield and easy learning even by new operator.
High Flexibility
With one-click width adjustment and mobile design for multiple production lines.
High Quality Assurance with Error Proofing
Consistent high splicing quality and prevents error through code scanning.

3S Reels Management Solution - Values
